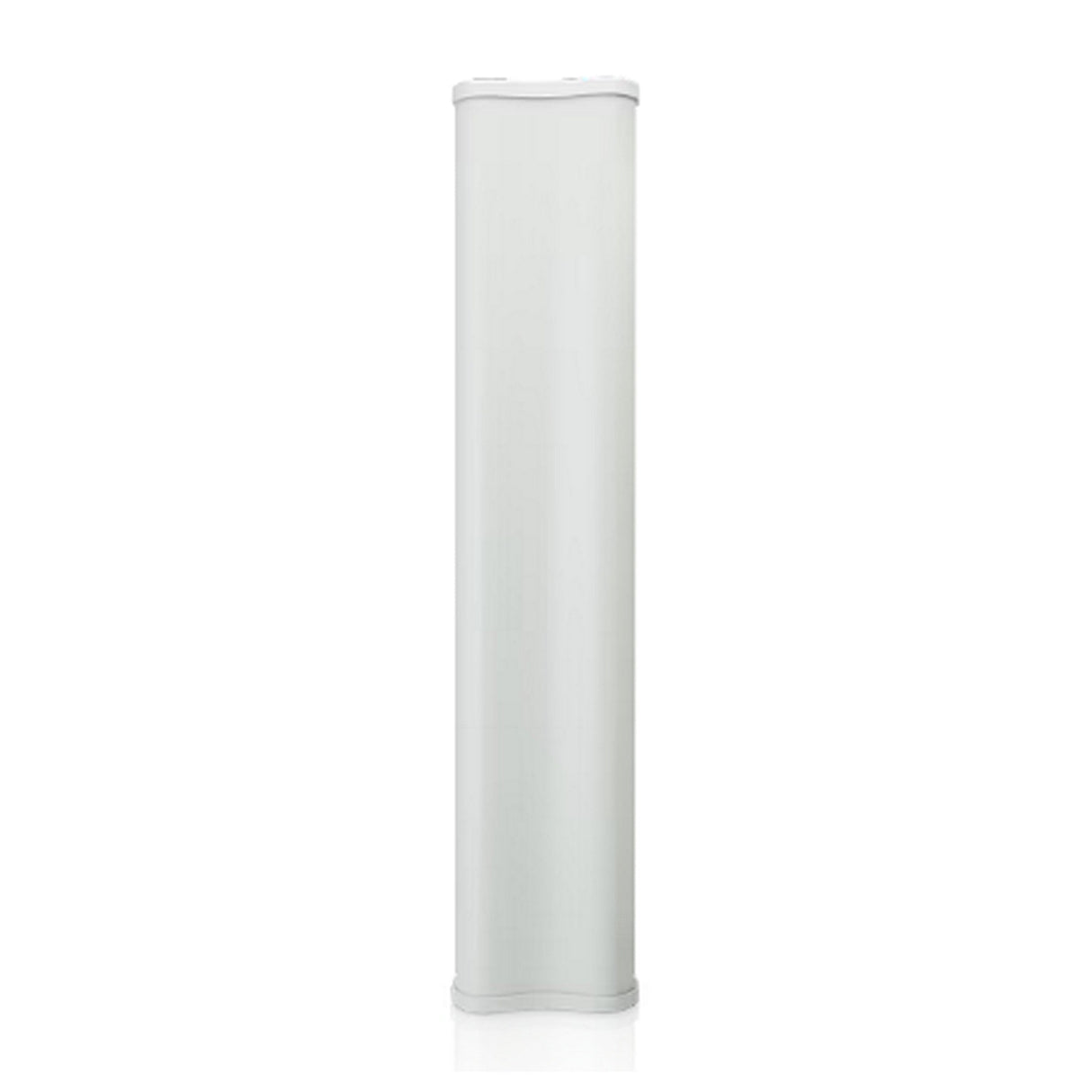

airMAX AM-2G16-90 Sector Antenna
The airMAX AM-2G16-90 is a high-performance sector antenna designed for robust and efficient 2.4 GHz point-to-multipoint (PtMP) networks. Its advanced beamforming capabilities and dual-linear polarization ensure excellent signal strength and minimal interference, making it ideal for outdoor deployments. With a 16 dBi gain and a 90° beamwidth, this antenna delivers precise coverage and is compatible with RocketM2 radios for seamless integration into your network.
Key Features
- 16 dBi gain with a 90° horizontal beamwidth for wide area coverage.
- Dual-linear polarization for enhanced performance and signal clarity.
- Weatherproof design for durability in harsh outdoor conditions.
- Compatible with RocketM2 radios for easy installation.
- Reliable performance with a maximum VSWR of 1.5:1.
Technical Specifications
Dimensions: 27.6 x 5.7 x 3.1 inches
Weight: 8.6 lb
Frequency Range: 2.3 - 2.7 GHz
Gain: 16.0 - 17.0 dBi
HPOL Beamwidth: 91° (6 dB)
VPOL Beamwidth: 90° (6 dB)
Electrical Beamwidth: 9°
Electrical Downtilt: 4°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 85 N @ 160 km/h (19 lbf @ 100 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 28 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
