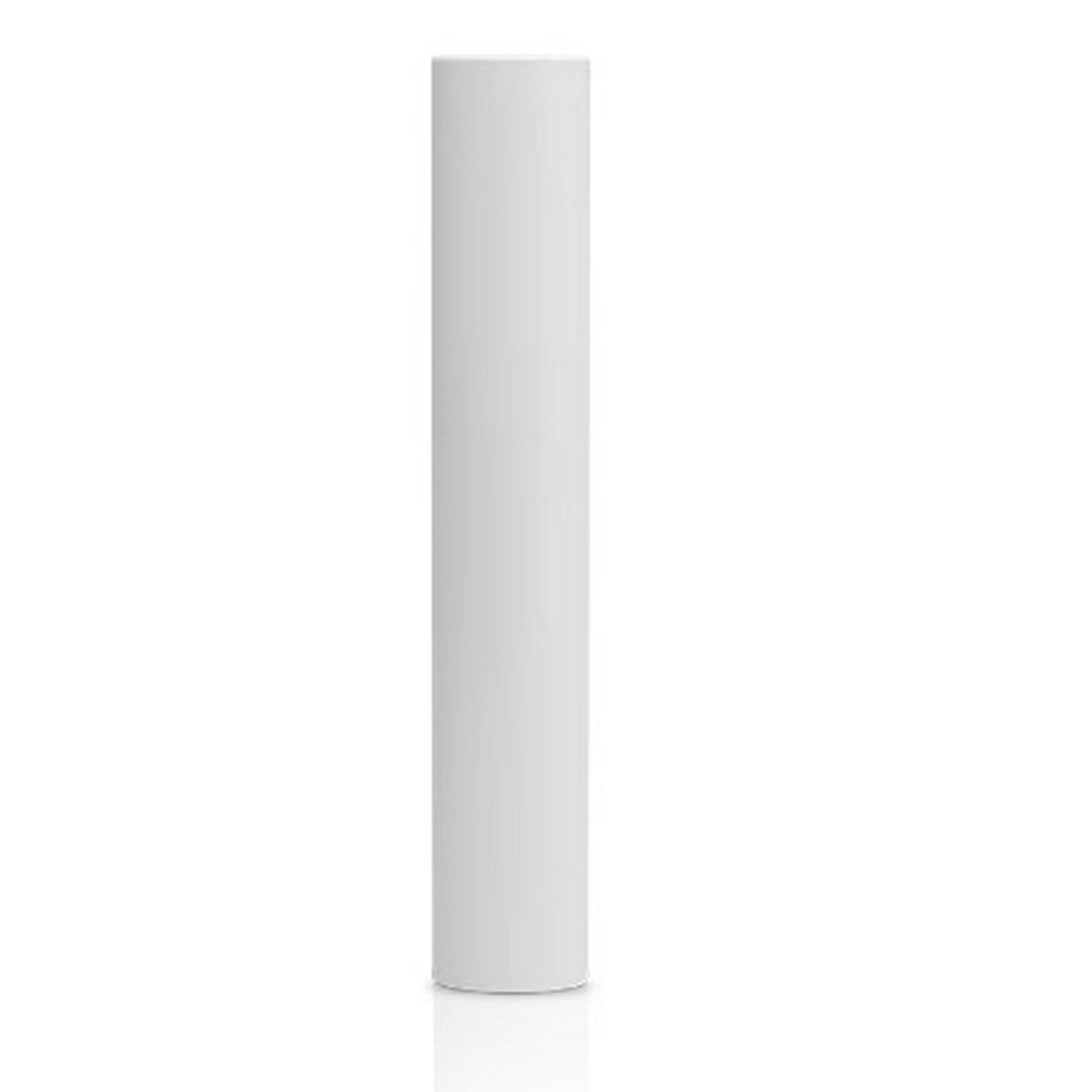

Ubiquiti AirMAX 5 GHz, 15/16 dBi Sector Antenna
Ubiquiti AirMAX 5 GHz, 15/16 dBi Sector Antenna
Ubiquiti airMAX 5 GHz 16/17 dBi Sector Antenna
The Ubiquiti AM-5G17-90 is a powerful sector antenna built for high-performance Point-to-MultiPoint (PtMP) networks. With a frequency range of 4.90 - 5.85 GHz and adjustable gain between 16.1 to 17.1 dBi, this antenna delivers reliable performance for outdoor deployments. It offers beamwidths of 72Ā° (HPOL) and 93Ā° (VPOL), providing broad coverage and stable connectivity. Designed for wind survivability and easy mounting, it's compatible with RocketM brackets, ensuring durability and optimal performance in demanding environments.
Key Features
- Adjustable gain from 16.1 to 17.1 dBi
- Broad beamwidths of 72Ā° HPOL and 93Ā° VPOL
- Dual-polarity design for improved signal strength
- Wind survivability up to 125 mph
- Compatible with RocketM brackets for easy installation
Technical Specifications
Dimensions: 367 x 63 x 41 mm (14.4 x 2.5 x 1.6")
Weight: 1.1 kg (2.4 lb)
Frequency Range: 4.90 - 5.85 GHz
Gain: 16.1 - 17.1 dBi
HPOL Beamwidth: 72Ā° (6 dB)
VPOL Beamwidth: 93Ā° (6 dB)
Electrical Beamwidth: 8Ā°
Electrical Downtilt: 4Ā°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 26 N @ 160 km/h (6 lbf @100 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 22 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
