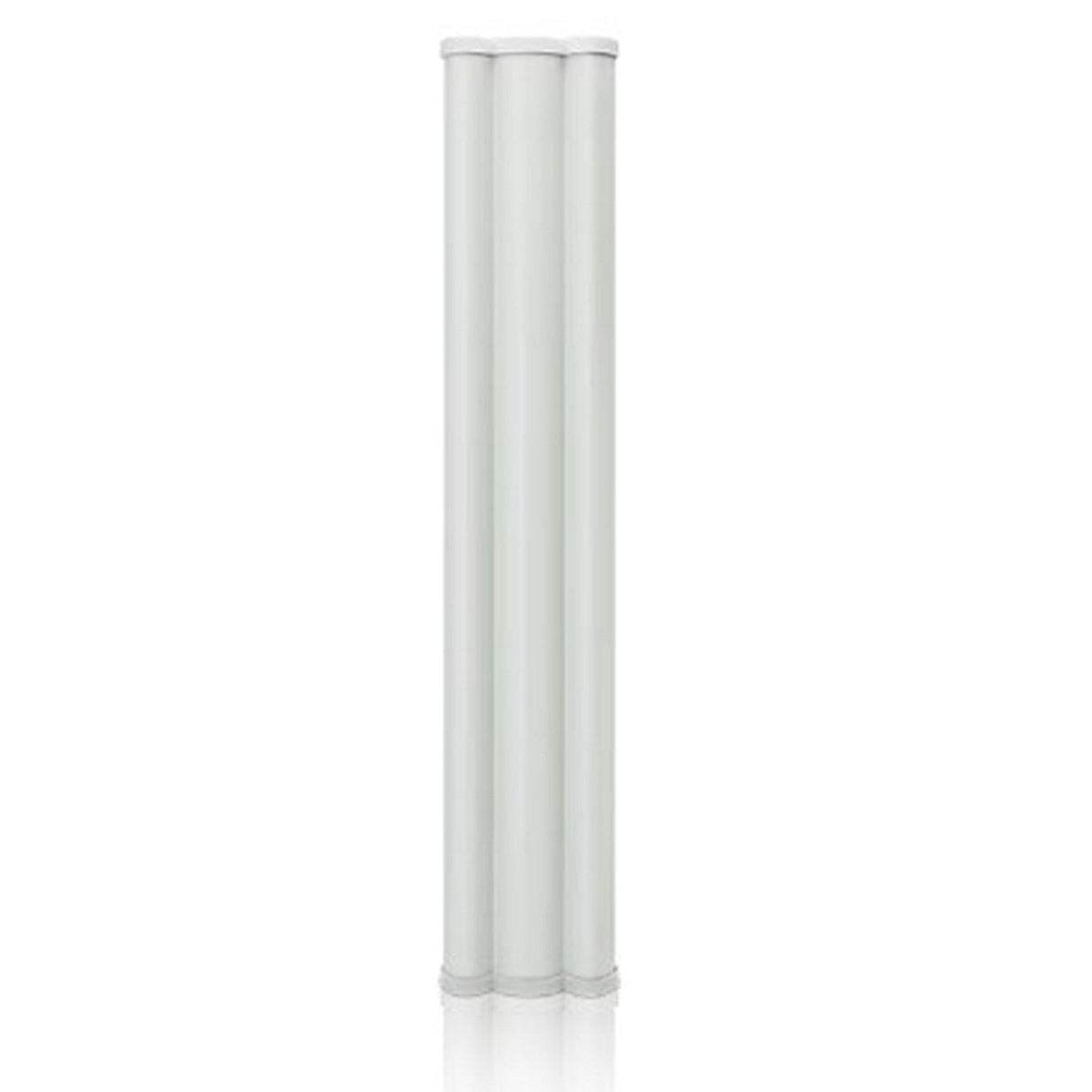

Ubiquiti airMAX 5 GHz 19/20 dBi Sector Antenna
The Ubiquiti AM-5G19-120 is a high-performance sector antenna designed for outdoor wireless networks. It delivers excellent coverage with adjustable gain between 18.6 dBi and 19.1 dBi. Featuring a wide beamwidth of 123° in both HPOL and VPOL, it ensures reliable connectivity in Point-to-MultiPoint (PtMP) environments. This antenna is built for durability, with wind survivability up to 125 mph and easy installation, thanks to its compatibility with RocketM and Rocket Prism. It's the ideal choice for large-scale network deployments in challenging conditions.
Key Features
- Adjustable gain from 18.6 to 19.1 dBi
- Wide 123° HPOL and VPOL beamwidths
- Compatible with RocketM and Rocket Prism
- Designed for harsh outdoor environments with wind survivability up to 125 mph
- Perfect for large-scale PtMP network deployments
Technical Specifications
Dimensions (mm): 700 x 135 x 73 mm (27.6 x 5.3 x 2.9")
Weight: 5.9 kg (13 lb)
Frequency Range: 5.15 - 5.85 GHz
Gain: 18.6 - 19.1 dBi
HPOL Beamwidth: 123° (6 dB)
VPOL Beamwidth: 123° (6 dB)
Electrical Beamwidth: 4°
Electrical Downtilt: 2°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 89 N @ 160 km/h (20 lbf @ 100 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 28 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
