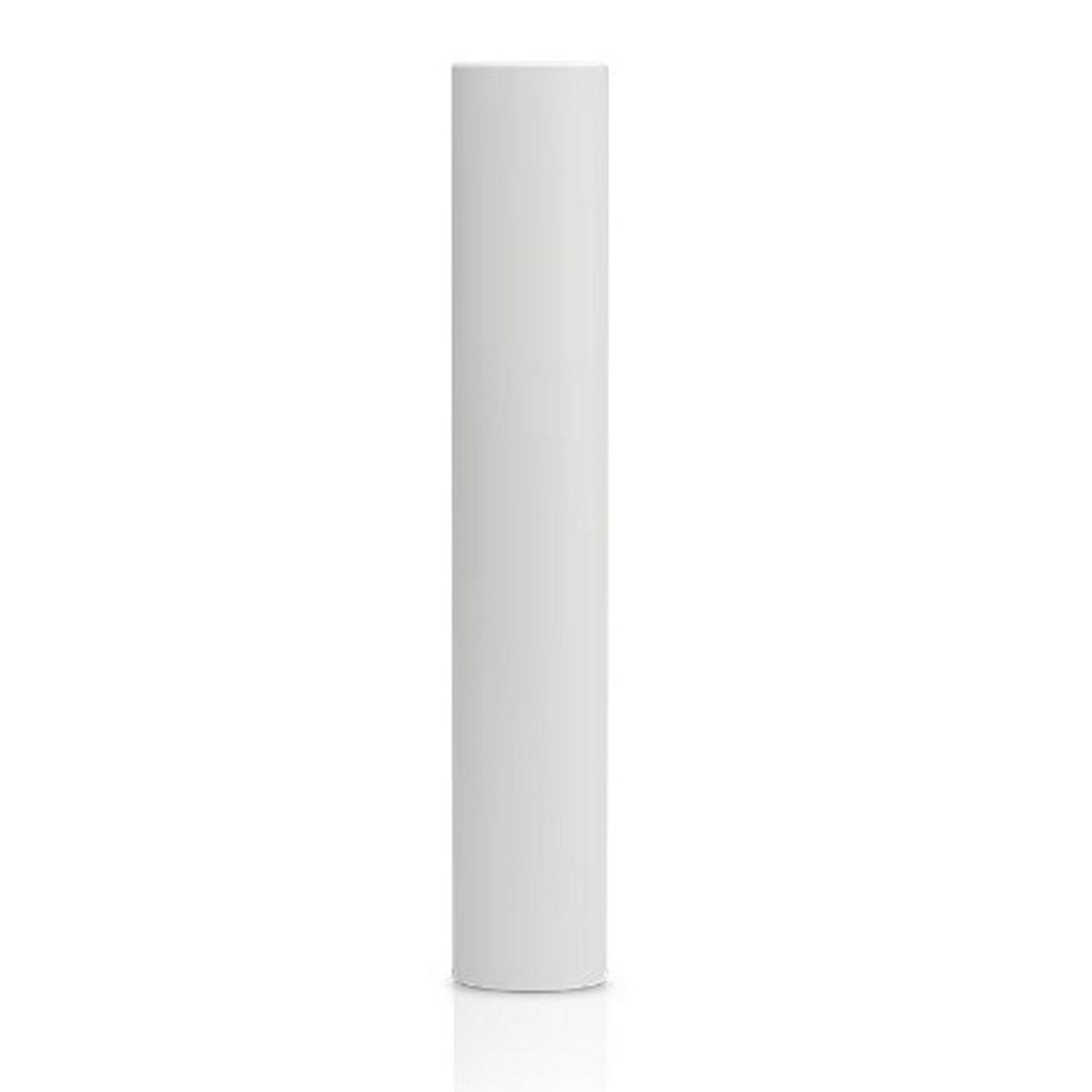

Ubiquiti airMAX 5 GHz, 16/17 dBi Sector Antenna
The Ubiquiti airMAX AM-5G16-120 antenna is a compact and high-performance solution for Point-to-MultiPoint (PtMP) applications. Designed for the 5 GHz frequency range, this antenna offers adjustable gain from 15.0 to 16.0 dBi, and it delivers wide coverage with beamwidths of 137° for HPOL and 118° for VPOL. Built to withstand outdoor conditions, it includes a durable design and wind survivability up to 125 mph. Compatible with RocketM and Rocket Prism, it provides easy integration for professional network deployments.
Key Features
- Adjustable gain from 15.0 to 16.0 dBi
- Wide beamwidth of 137° HPOL and 118° VPOL
- Dual-polarity for enhanced signal reliability
- Built to withstand winds up to 125 mph
- Compatible with RocketM and Rocket Prism
Technical Specifications
Dimensions: 367 x 63 x 41 mm (14.4 x 2.5 x 1.6")
Weight: 1.1 kg (2.4 lb)
Frequency Range: 5.10 - 5.85 GHz
Gain: 15.0 - 16.0 dBi
HPOL Beamwidth: 137° (6 dB)
VPOL Beamwidth: 118° (6 dB)
Electrical Beamwidth: 8°
Electrical Downtilt: 4°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 26 N @ 160 km/h (6 lbf @100 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 22 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
