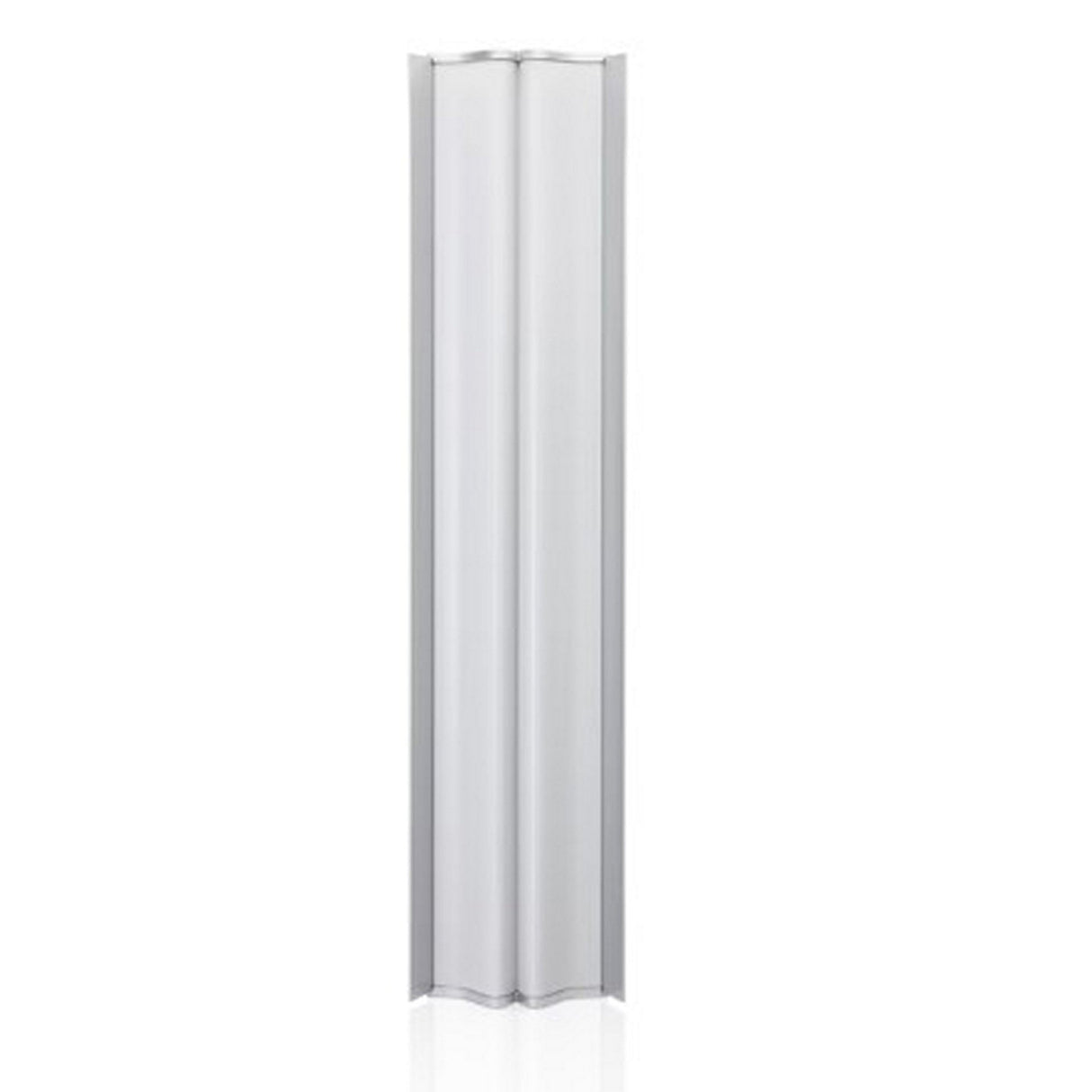

Ubiquiti AirMax 5GHz 60 Degree Sector Antenna
Ubiquiti AirMax 5GHz 60 Degree Sector Antenna
Free Shipping
Ubiquiti airMAX AC AM-5AC21-60: High-Performance 5 GHz Sector Antenna
The Ubiquiti airMAX AC AM-5AC21-60 is a professional-grade sector antenna tailored for outdoor Point-to-MultiPoint (PtMP) networks. Featuring a 21 dBi gain and 60º beamwidth, it ensures superior coverage and efficiency. Designed for demanding conditions, this antenna provides enhanced connectivity with its dual-linear polarization and robust wind survivability. Perfectly optimized for the 5 GHz spectrum, it pairs seamlessly with RocketM brackets, delivering versatile mounting options and unparalleled performance for large-scale wireless deployments.
Key Features
- Exceptional 21 dBi gain and 60º beamwidth
- Durable design for outdoor applications
- Dual-linear polarization for improved network stability
- Universal pole mount and RocketM bracket included
- Engineered for high wind survivability
Technical Specifications
Dimensions: 750 x 173 x 78 mm (29.5 x 6.8 x 3")
Weight: 4.8 kg (10.6 lb)
Frequency Range: 5.10 - 5.85 GHz
Gain: 21 dBi
HPOL Beamwidth: 60° (6 dBi)
VPOL Beamwidth: 60° (6 dBi)
Electrical Beamwidth: 4°
Electrical Downtilt: 2°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 391 N @ 200 km/h (88 lbf @ 125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 25 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
