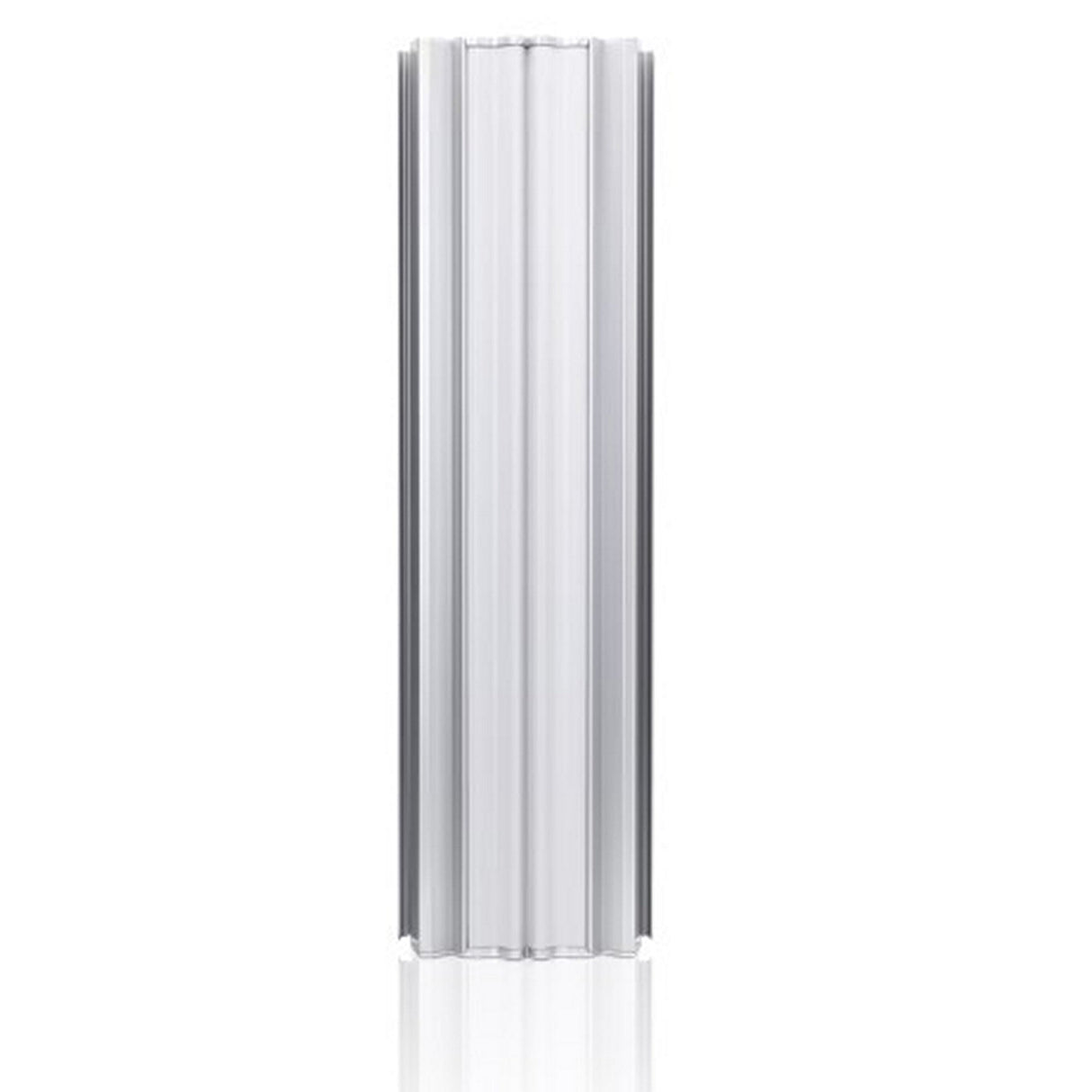

Ubiquiti airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna
The Ubiquiti airMAX AC AM-5AC22-45 is a high-performance sector antenna built for 5 GHz PtMP networks. Offering a gain of 22 dBi and a 45º beamwidth, it ensures reliable signal strength and coverage. Its dual-linear polarization enhances data throughput and network stability. With a rugged design and ETSI compliance, this antenna is ideal for outdoor deployments, providing durability and ease of installation. Compatible with RocketM brackets, it supports robust network connectivity in demanding conditions.
Key Features
- 22 dBi gain with a 45º beamwidth
- Engineered for outdoor PtMP applications
- Dual-linear polarization for optimal performance
- ETSI compliance for professional-grade networking
- Includes universal pole mount and weatherproof jumpers
Technical Specifications
Dimensions: 750 x 215 x 94 mm (29.5 x 8.5 x 3.7")
Weight: 6 kg (13.2 lb)
Frequency Range: 5.10 - 5.85 GHz
Gain: 22 dBi
HPOL Beamwidth: 45° (6 dBi)
VPOL Beamwidth: 45° (6 dBi)
Electrical Beamwidth: 4°
Electrical Downtilt: 2°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 347 N @ 200 km/h (78 lbf @ 125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 30 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
