Ubiquiti AirMAX GigaBeam Plus 60 GHz, 1.5+ Gbps
Ubiquiti AirMAX GigaBeam Plus 60 GHz, 1.5+ Gbps
Free Shipping

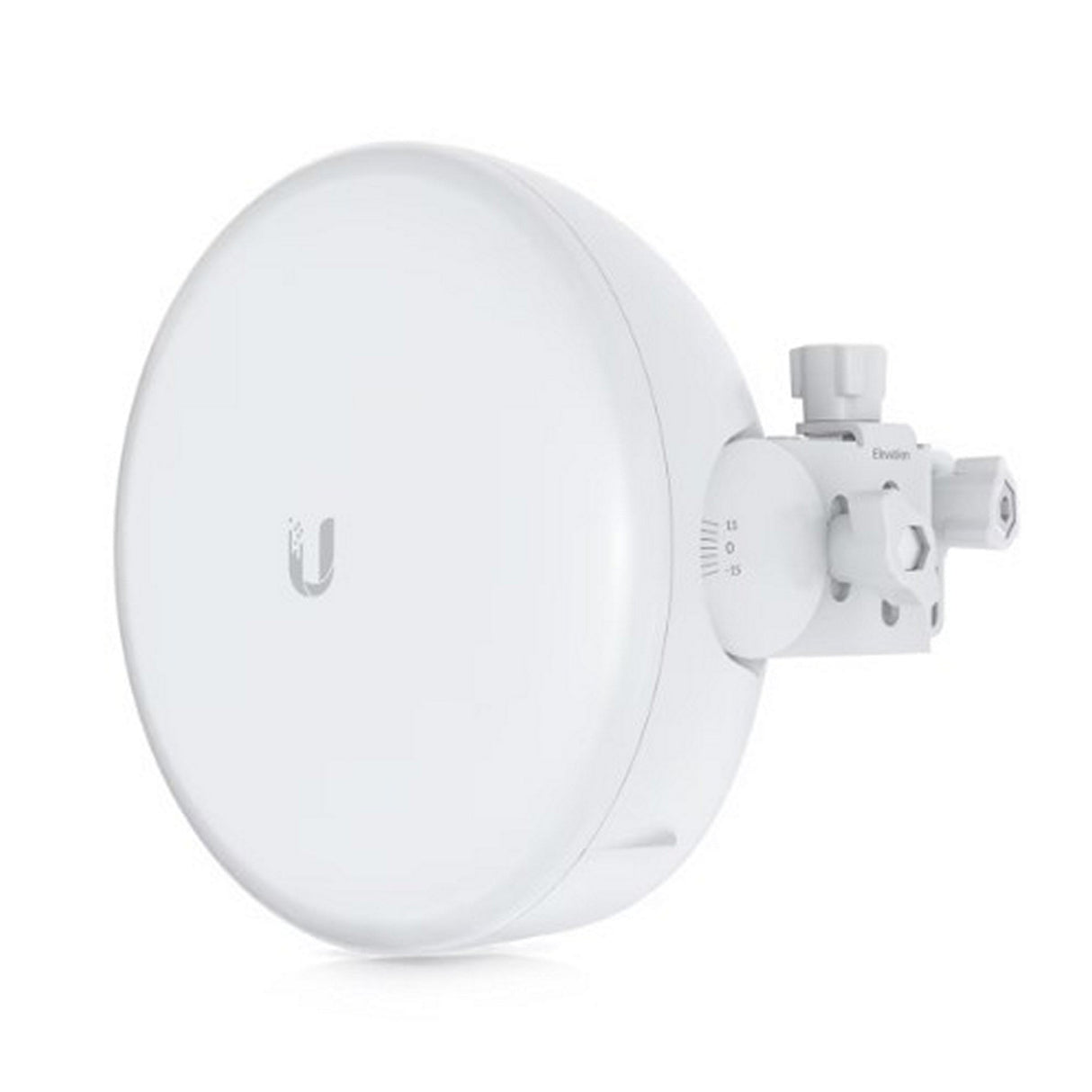

Ubiquiti airMAX GigaBeam Plus 60 GHz Radio
The Ubiquiti airMAX GigaBeam Plus 60 GHz radio is designed for high-performance point-to-point wireless connectivity. With its advanced Cassegrain reflector and high-gain performance, the GigaBeam Plus delivers ultra-fast 1.5+ Gbps throughput and a 1.5+ km link range. Whether you’re setting up a robust ISP infrastructure or need long-range wireless backhaul, this radio ensures maximum reliability and speed, even in challenging environments.
Key Features
- High-performance 60 GHz radio for point-to-point connections
- 1.5+ Gbps throughput and 1.5+ km link range
- Advanced Cassegrain reflector for superior performance
- Weather-resistant and durable construction
- Easy installation with integrated PoE and advanced software management
Technical Specifications
Dimensions: Ø155 x 137 mm (Ø6.1 x 5.4")
Weight: 1 kg (2.2 lb)
Enclosure Material: UV-resistant polycarbonate, stainless steel
Mount Material: Metal
Wind Loading: 50 N at 200 km/h (11.24 lbf at 125 mph)
Processor: Quad-Core ARM® Cortex® A7
Memory: 256 MB DDR3
Networking Interface: (1) GbE RJ45 port
RF Connections: Internal
Max Power Consumption: 11W
Power Method: Passive PoE 2-pairs (4, 5+; 7, 8-)
Power Supply: 24V DC, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range: 22—27V DC
ESD/EMP Protection: Air/contact: ± 24kV
Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE
Operating Frequency: 57,000 - 66,000 MHz (Dependent on regional regulations)
Channel Bandwidth: 2160 MHz
Operating Channels: 58320, 60480, 62640, 64800 MHz
Beamwidth: Azimuth: 2° (-3 dB) / 3° (-6 dB), Elevation: 2° (-3 dB) / 3° (-6 dB)
Bluetooth: 2400 - 2483.5 MHz
Electrical Downtilt: 0°
LEDs:
Power: Flashing white: booting up, White: not connected to UISP, Blue: connected to UISP
Ethernet: Flashing blue: Ethernet traffic detected
60GHz: Blue: connected
Operating Modes: PtP master or station
Security: WPA2 AES only
Management Interface: UISP application (web/mobile)
Minimum Software Requirements: Any modern web browser/iOS™ or Android™ based smartphone
