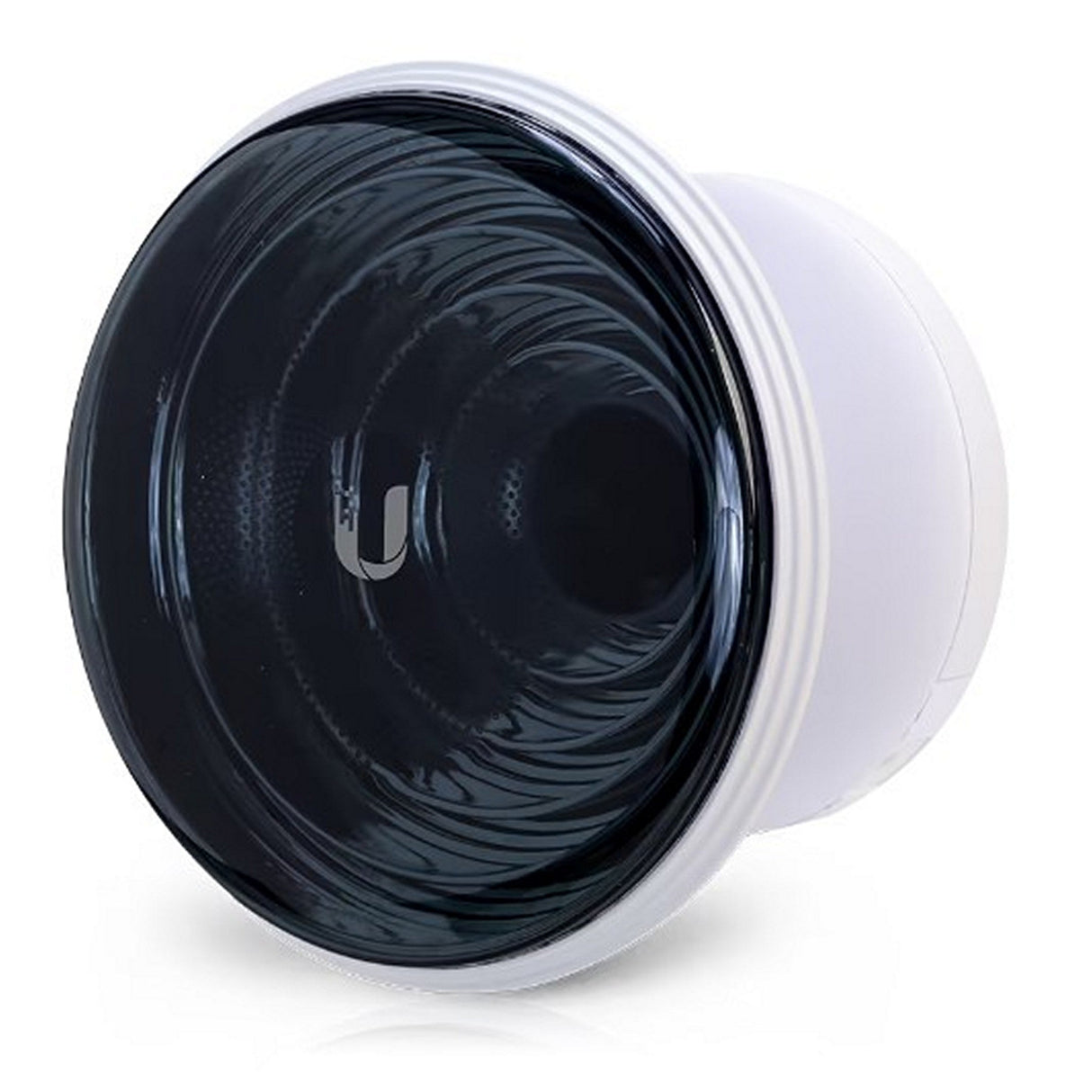

Ubiquiti airMAX IsoStation M5 CPE for High-Performance Connectivity

The Ubiquiti airMAX IsoStation M5 is a powerful, high-performance CPE designed to deliver reliable wireless communication in dense urban environments. With its advanced horn antenna technology, it provides excellent noise isolation, ensuring superior link quality even in challenging RF conditions. Ideal for extending network coverage or creating wireless bridges, this versatile device is easy to install and offers rugged performance in harsh weather conditions.

Key Features:

• 15 dBi gain with 45° beamwidth for optimized coverage
• Easy pole-mount installation (mounting kit included)
• Support for passive PoE with included 24V adapter
• Reliable performance in extreme conditions (up to 125 mph wind survivability)

Technical Specifications:

Dimensions: With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9")
Weight: With horn: 726 g (1.6 lb)
Wind Loading: 36N @ 200 km/h (8.09 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Mounting: Pole-mount (Kit included)
Networking Interface: (1) GbE RJ45 port
Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply: 24V, 0.5A Gigabit PoE adapter (included)
Supported Voltage Range: 22–27V DC
Max. Power Consumption: 6.5W
Operating Temperature: -40 to 70°C (-40 to 158°F)
Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Gain: 14 dBi
Beamwidth: 45° (default horn)
Operating Frequency: Worldwide: 5150-5875 MHz; USA: U-NII-1: 5150-5250 MHz, U-NII-3: 5725-5850 MHz
