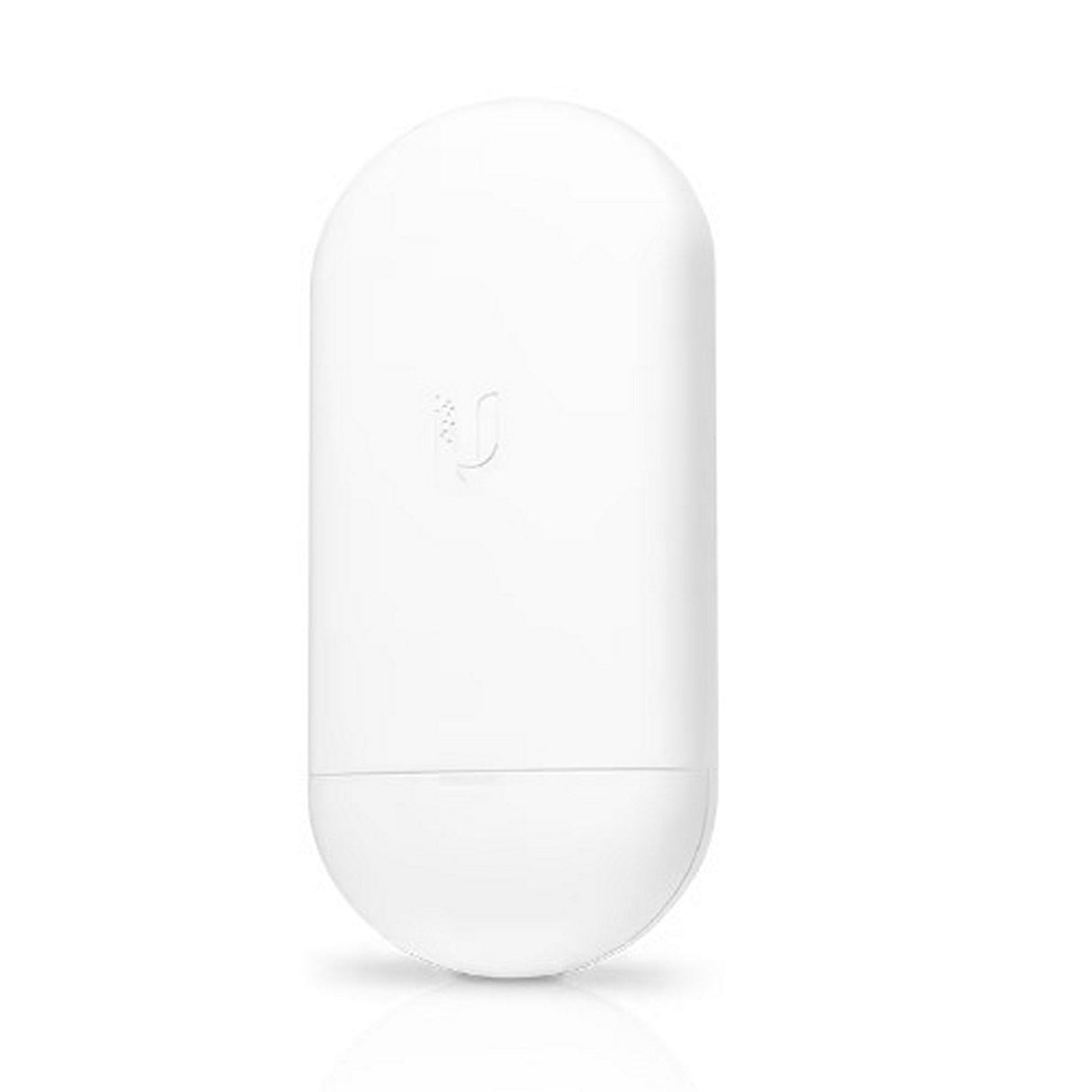

Ubiquiti AirMAX NanoStation 5AC Loco Outdoor WiFi Radio
Ubiquiti AirMAX NanoStation 5AC Loco Outdoor WiFi Radio
Ubiquiti airMAX NanoStation 5AC Loco - Compact Outdoor WiFi Radio
The Ubiquiti airMAX NanoStation 5AC Loco is a high-performance, compact wireless radio designed for long-range outdoor deployments. It features advanced 5 GHz technology, delivering a 450+ Mbps throughput and exceptional link range of over 10 km. With seamless integration into the UISP platform, it simplifies network management while offering superior performance and reliability for both residential and commercial use.
Key Features
- 450+ Mbps throughput with 10 km range
- 5 GHz frequency for improved performance
- Support for UISP platform for easy management
- Compact design for efficient outdoor installations
- Advanced spectral analysis for performance monitoring
Technical Specifications
Dimensions: 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3")
Weight: 180 g (6.4 oz)
Enclosure material: UV-stabilized plastic
Mounting: Pole mounting kit (Included)
Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply: 24V, 0.3A gigabit PoE supply (Not included)
Supported voltage range: 22ā27V DC
Max. power consumption: 7W
LEDs: Power, Ethernet, (4) signal strength
Ambient operating temperature: -40 to 70Ā° C (-40 to 158Ā° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Gain: 13 dBi
Channel bandwidths: 10/20/30/40/50/60/80 MHz
Cross-pol isolation: 20 dB min.
Max. VSWR: 1.8:1
Beamwidth: 45Ā° (H-pol) / 45Ā° (V-pol) / 45Ā° (Elevation)
Polarization: Dual linear
Operating Frequency (MHz): Worldwide 5150-5875 MHz
Management Radio (MHz): Worldwide 2412 - 2472 MHz, US/CA 2412 - 2462 MHz
