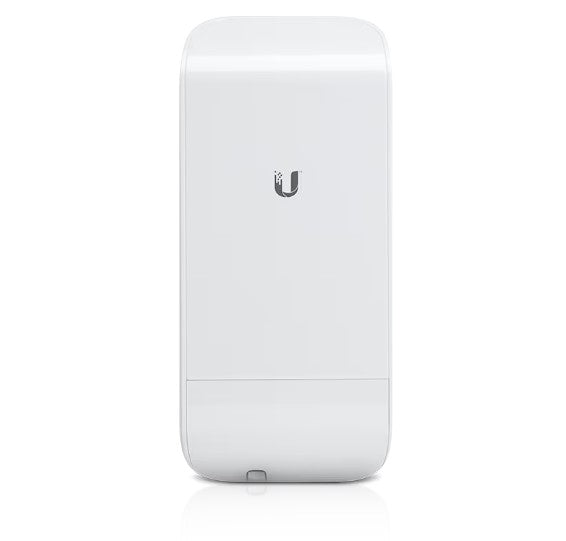

Ubiquiti AirMAX NanoStation M2 Loco CPE 2.4 GHz
Ubiquiti AirMAX NanoStation M2 Loco CPE 2.4 GHz
Ubiquiti airMAX NanoStation M2 loco CPE 2.4 GHz Broadband
The Ubiquiti airMAX NanoStation M2 loco is a compact and cost-effective CPE designed for reliable wireless communication. Ideal for point-to-point and point-to-multipoint applications, it operates in the 2.4 GHz frequency band. The device integrates easily with airMAX antennas, providing optimal performance in outdoor environments.
Key Features
- 2.4 GHz Frequency Band
- Compact, Outdoor UV-Stabilized Plastic Enclosure
- Perfect for Point-to-Point and Point-to-Multipoint Applications
- Efficient Power Consumption (5.5W)
Technical Specifications
Dimensions: 6.3" x 1.2" x 3.2"
Weight: 6.4 oz
Enclosure Material: Outdoor UV-Stabilized Plastic
Mounting: Pole-mount Kit Included
Networking Interface: (1) 10/100 MbE RJ45 Port
Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply: 24V, 0.5A PoE Adapter (Included)
Supported Voltage Range: 22ā27V DC
Max. Power Consumption: 5.5W
Operating Temperature: -30Ā°C to 75Ā°C (-22Ā°F to 167Ā°F)
Operating Humidity: 5% to 95% non-condensing
Shock & Vibration: ETSI300-019-1.4
Certifications: FCC, IC, CE, RoHS
Frequency: 2.4 GHz
Operating Frequency: 2412-2462 MHz
Gain: 8.5 dBi
Cross-pol Isolation: 20 dB Min.
Max. VSWR: 1.4:1
Beamwidth: 60Ā° (H-pol) / 60Ā° (V-pol) / 60Ā° (Elevation)
Polarization: Dual Linear
