Ubiquiti AirMAX RocketDish High-Gain 5 GHz Antenna
Ubiquiti AirMAX RocketDish High-Gain 5 GHz Antenna

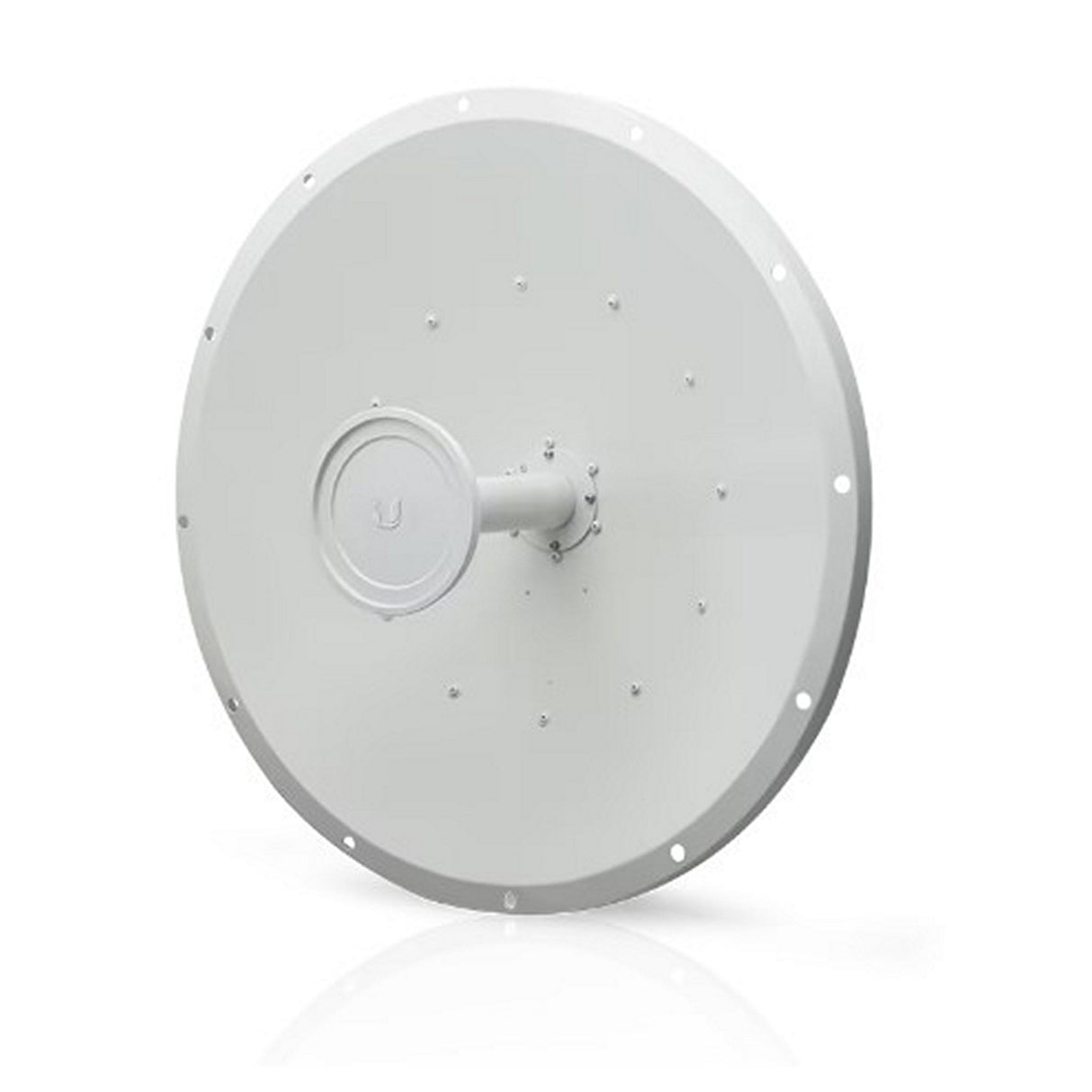

Ubiquiti airMAX RocketDish RD-5G30 High-Performance 5 GHz Antenna
The Ubiquiti airMAX RocketDish RD-5G30 is designed for high-performance, long-range wireless connectivity in the 5 GHz frequency range. This powerful antenna offers dual-linear polarization and delivers a gain of 30 dBi in the 5 – 5.9 GHz range, with excellent front-to-back ratio and low VSWR. Built to withstand harsh outdoor environments, it features robust construction and includes universal mounting options for easy installation. Whether for point-to-point or point-to-multipoint setups, the RD-5G30 ensures optimal performance and durability.
Key Features
- 5 GHz frequency range with up to 30 dBi gain
- Dual-linear polarization for improved signal quality
- Robust construction with universal pole mount and weatherproof RF connectors
- Wind survivability up to 200 km/h (125 mph)
- ETSI-compliant with EN 302 326 DN2 specification
Technical Specifications
Dimensions: 650 x 650 x 304 mm (25.6 x 25.6 x 11.97")
Weight: 21.61 lb (9.8 kg)
Frequency Range: 4.9 - 5.8 GHz
Gain: 4.9 GHz: 26 dBi, 5 - 5.9 GHz: 30 dBi
HPOL Beamwidth: 5° (3 dB)
VPOL Beamwidth: 5° (3 dB)
F/B Ratio: 34 dB
Max. VSWR: 1.4:1
Wind Loading: 787 N @ 200 km/h (177 lbf @125 mph)
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
