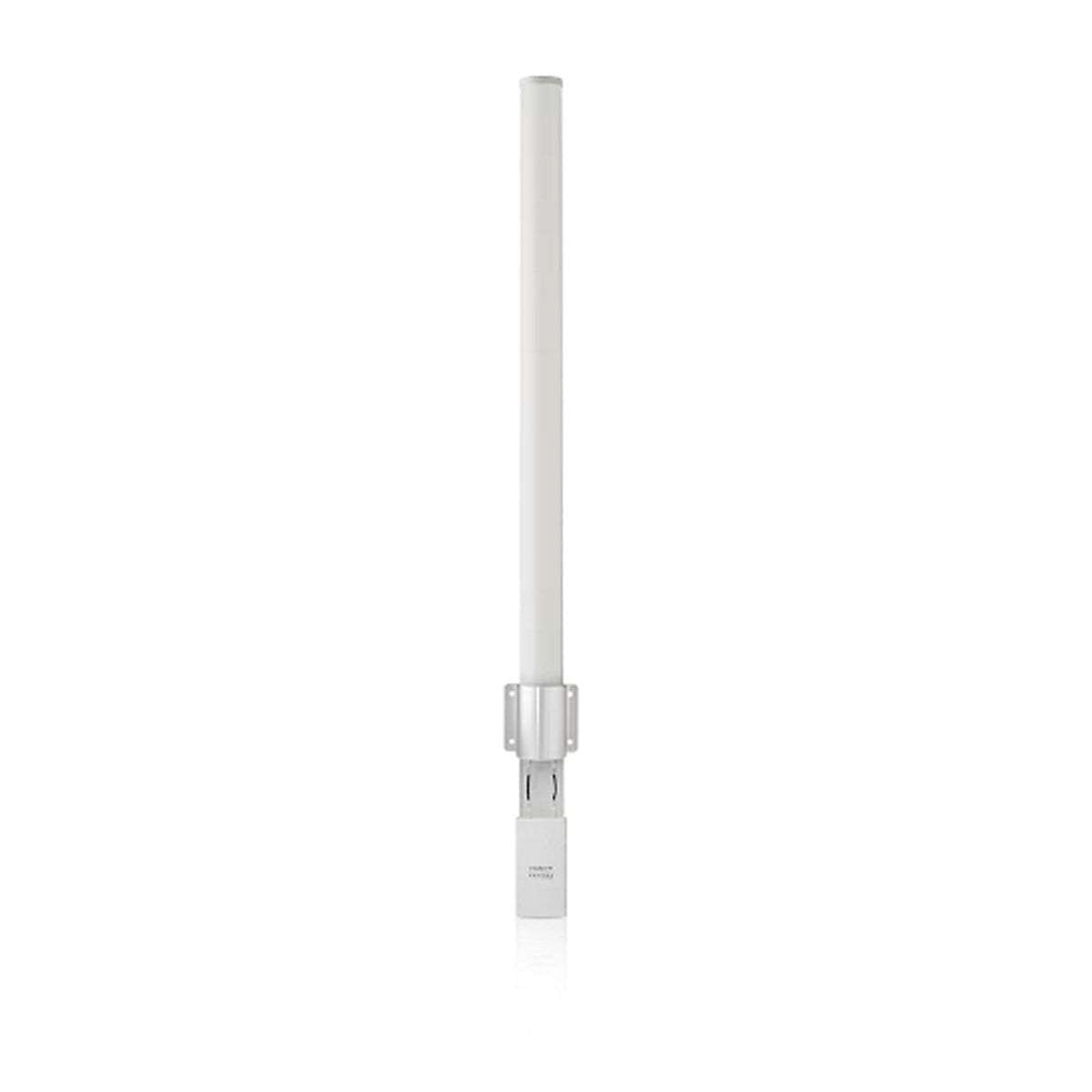

Ubiquiti AirMax Omni 13 dBi Dual Polarization Antenna
Ubiquiti AirMax Omni 13 dBi Dual Polarization Antenna
Free Shipping
AMO-2G13 13 dBi Antenna for Wireless Communication
The AMO-2G13 is a high-performance antenna designed for wireless communication systems, offering exceptional reliability and coverage in the 2.35 - 2.55 GHz frequency range. With a robust dual-linear polarization and a 13 dBi gain, this antenna provides improved signal quality and range. Its rugged design ensures long-lasting performance, even in harsh weather conditions, with wind survivability up to 125 mph. Ideal for outdoor environments, the antenna includes a universal pole mount, RocketM bracket, and weatherproof RF jumpers for easy installation.
Key Features:
- Frequency Range: 2.35 - 2.55 GHz for versatile use.
- 13 dBi gain for enhanced signal coverage and reliability.
- Durable design with wind survivability up to 125 mph.
- Dual-linear polarization for superior cross-pol isolation (25 dB min.).
- Comes with a universal pole mount, RocketM bracket, and weatherproof RF jumpers for easy setup.
Technical Specifications:
Dimensions: 1390 x 122 x 105 mm (54.2 x 4.8 x 4.1")
Weight: 2.4 kg (5.3 lb)
Frequency Range: 2.35 - 2.55 GHz
Gain: 13 dBi
Elevation Beamwidth: 7°
Max. VSWR: 1.7:1
Downtilt: 2°
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 71.2 N @ 160 km/h (16 lbf @ 100 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 25 dB min.
ETSI Specification: EN 302 326 DN2 E
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
