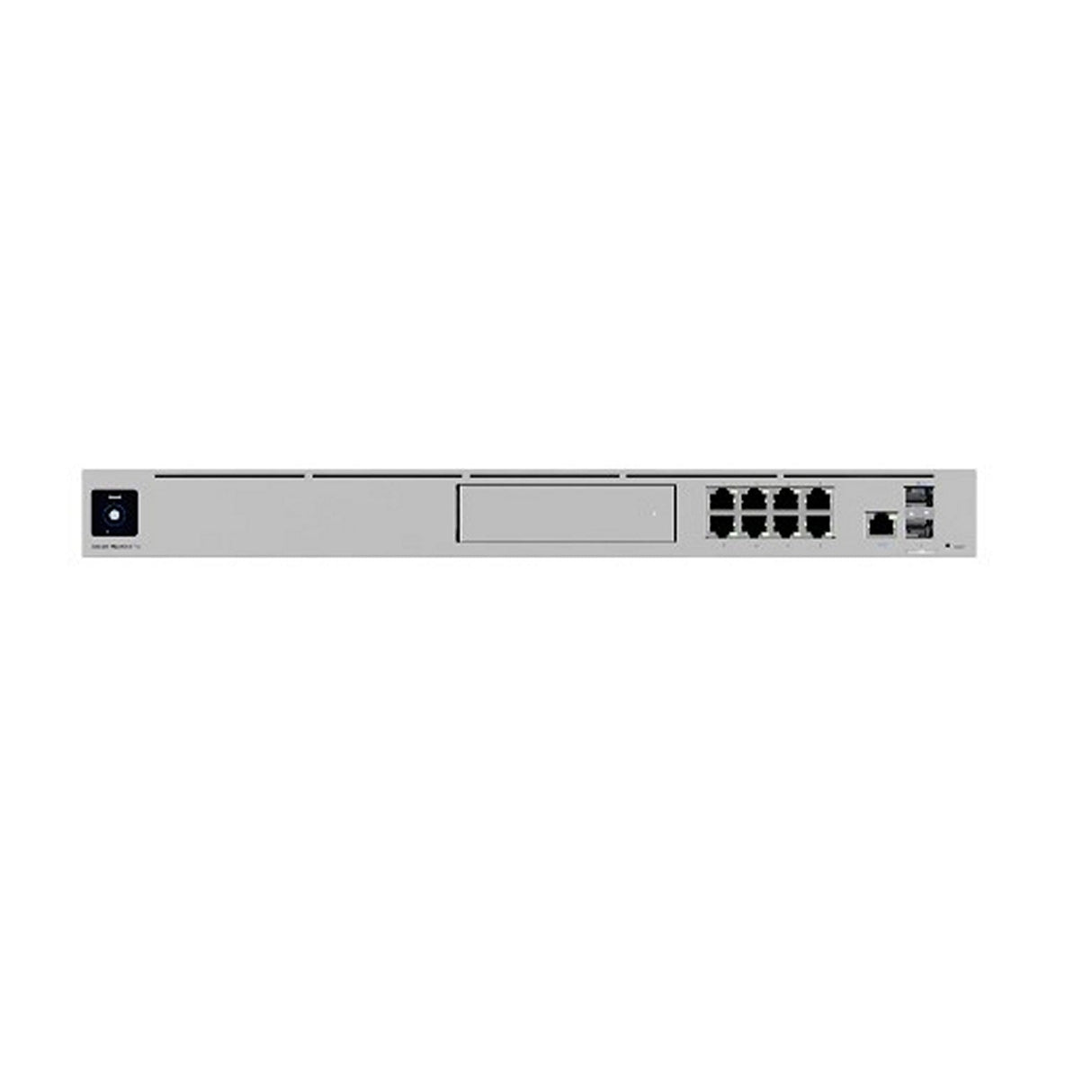

Ubiquiti Dream Machine Pro (UDM-Pro) - Advanced Gateway
The Ubiquiti Dream Machine Pro (UDM-Pro) is a high-performance gateway designed for demanding enterprise and home networks. With support for 200+ UniFi devices and 200+ client devices, it provides robust performance and next-generation security. It features redundant WAN with failover and load balancing, application-aware firewall, and advanced networking capabilities, such as license-free SD-WAN. The UDM-Pro is also equipped with a 1.3" touchscreen for easy management and a 10G SFP+ port for high-speed connectivity.
Key Features
- Supports 200+ UniFi devices and 200+ client devices
- Redundant WAN with failover and load balancing
- Application-aware firewall with next-gen security features
- License-free SD-WAN for advanced networking
- 10G SFP+ port and multiple Gigabit Ethernet ports
- 1.3" touchscreen display for intuitive control
Technical Specifications
Test data - UniFi Application Suite: Full
UniFi Devices: 200+
Client Devices: 200+
WiFi: -
High Availability: Shadow Mode
Multi-WAN Load Balancing: Yes
Application-Aware Firewall: Yes
Mechanical
Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight: 3.9 kg (8.6 lb)
Enclosure material: Aluminium CNC, SGCC steel
Mount material: SGCC steel
Hardware
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory: 4 GB DDR4
On-board storage: 16 GB eMMC
Management interface: Ethernet
Bluetooth: Yes
Networking interface:
- (8) GbE RJ45 ports
- (1) 10G SFP+ port
- (1) GbE RJ45 WAN port
- (1) 10G SFP+ WAN port
Power method:
- (1) Universal AC input, 100—240V AC, 50/60 Hz
- (1) USP-RPS DC input
Supported voltage range: 100—240V AC
Max. power consumption: 33W
ESD/EMP protection: Air: ± 15kV, contact: ± 8kV
LCM display: (1) 1.3" touchscreen
Button: Factory reset
Ambient operating temperature: -10° to 40° C (14° to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Gateway Features
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting
- Next-gen security: Application-aware firewall, signature-based IPS/IDS, and more
- Advanced networking features: WireGuard, L2TP, OpenVPN, SD-WAN
LED Indicators
- Ethernet: Link/activity (Green: 1G, Amber: 10/100M)
- SFP+: Link/activity (White: 10G, Green: 1G)
- HDD: White (disk activity), Amber (disk error)
- RPS: Blue (ready)
