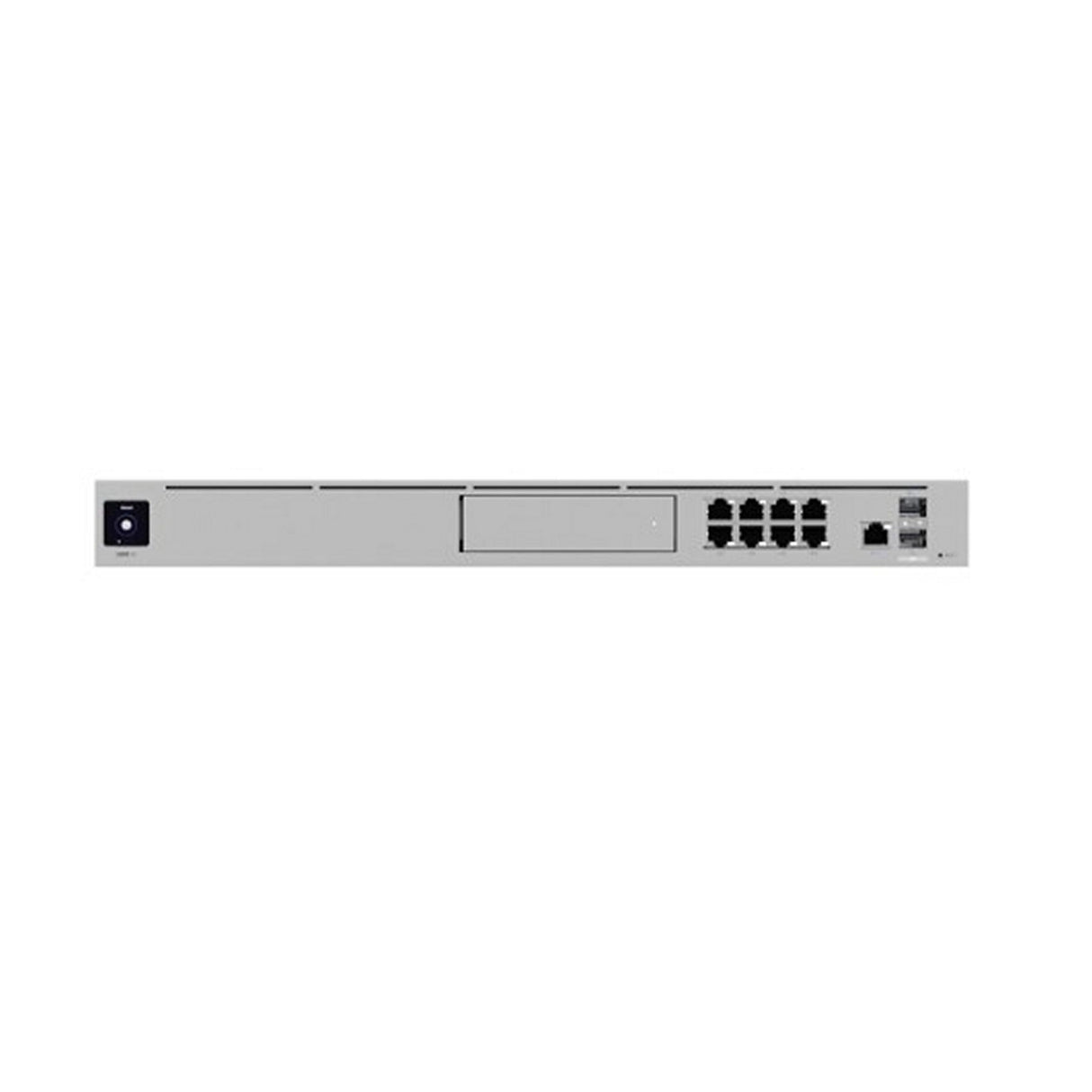

Ubiquiti Dream Machine Special Edition (UDM-SE) - 10G Gateway

The Ubiquiti Dream Machine Special Edition (UDM-SE) is an advanced all-in-one network solution for businesses and homes that require powerful, high-speed performance. With support for 200+ UniFi devices and 200+ client devices, the UDM-SE provides exceptional networking, security, and management capabilities. It integrates a 128 GB SSD for local network video recording and includes dual 10G SFP+ ports, PoE support, and advanced networking features for seamless connectivity. Whether you're handling demanding applications or running large-scale networks, the UDM-SE is built to deliver reliable performance and security.

Key Features

• Supports 200+ UniFi devices and 200+ client devices
• Integrated 128GB SSD for local NVR support
• Dual 10G SFP+ ports and 1x 2.5GbE WAN port
• Supports PoE/PoE+ for powering additional UniFi devices
• Built-in application-aware firewall with IDS/IPS threat detection
• License-free SD-WAN, VPN support, and high availability
• 1.3" touchscreen for easy device management

Technical Specifications

Test data - UniFi Application Suite: Full
UniFi Devices: 200+
Client Devices: 200+
WiFi: -
High Availability: Shadow Mode
Multi-WAN Load Balancing: Yes
Application-Aware Firewall: Yes

Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight: 5 kg (10.9 lb)
Enclosure material: Aluminium CNC, SGCC steel
Mount material: SGCC steel

Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory: 4 GB DDR4
On-board storage: 16 GB eMMC
Integrated 128 GB SSD
Management interface: Ethernet, Bluetooth
Networking interface:

• LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port
• WAN: (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port
• PoE interface: (6) PoE, (2) PoE+

IDS/IPS throughput: 3.5 Gbps
Power method: (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
Power supply: AC/DC, internal, 240W
Max. power consumption: 50W (Excluding PoE output)
PoE budget: 180W
Max. PoE wattage per port: PoE: 15.4W, PoE+: 30W
Voltage range PoE mode: PoE: 44—57V, PoE+: 50—57V
ESD/EMP protection: Air: ± 15kV, contact: ± 8kV
LCM display: (1) 1.3" touchscreen
Button: Factory reset
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Package Contents

• 1x Ubiquiti Dream Machine Special Edition (UDM-SE)
• Power Cable
• Ethernet Cable
