Ubiquiti EdgePoint S16 - 16-Port PoE+ Switch
Ubiquiti EdgePoint S16 - 16-Port PoE+ Switch
Free Shipping

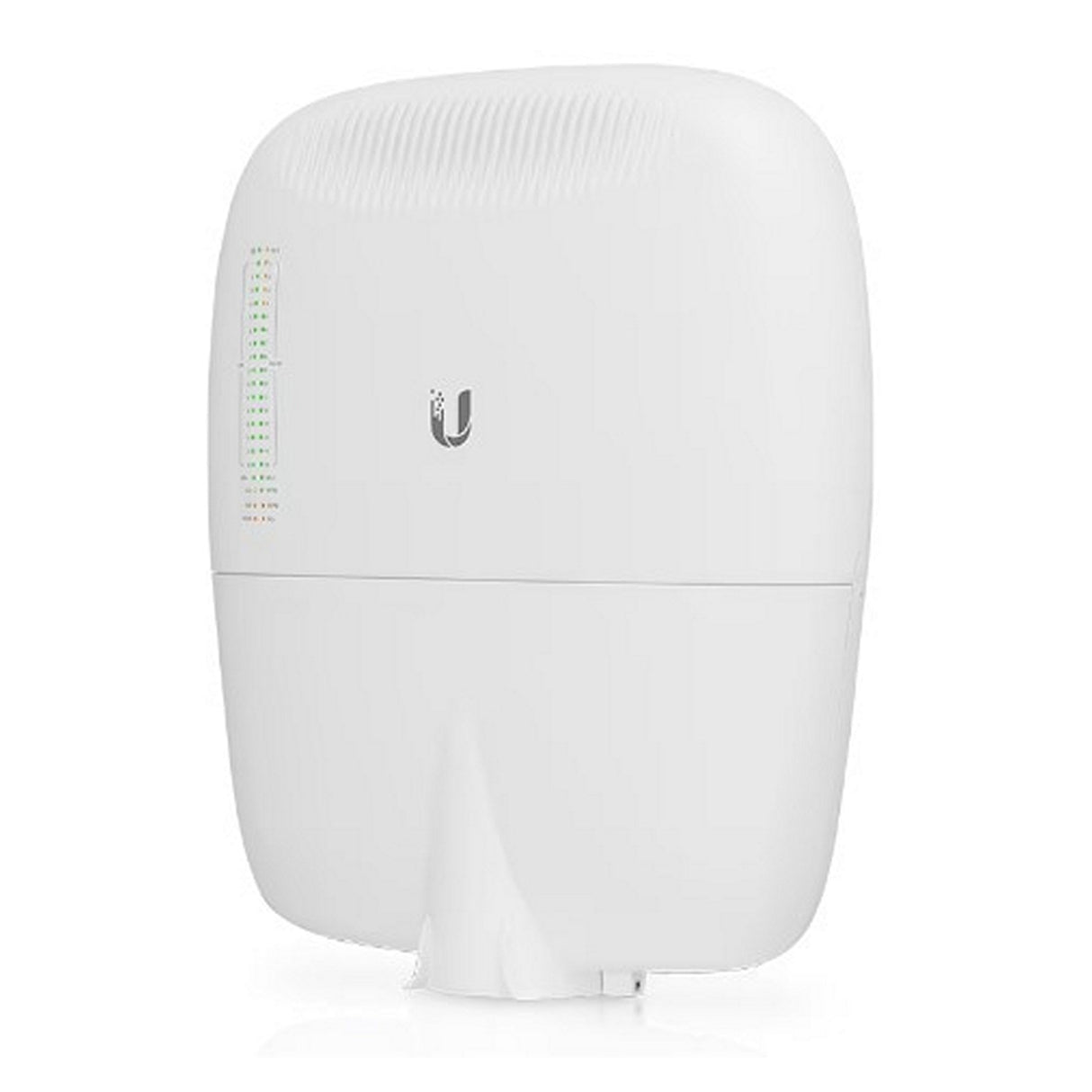

Ubiquiti EdgePoint S16 - 16-Port Switch with SFP+
The Ubiquiti EdgePoint S16 is a powerful and durable networking switch, designed for outdoor use. With 16 gigabit Ethernet RJ45 ports and 2 high-speed SFP+ ports, this model ensures reliable connectivity. It's ideal for high-performance networking in remote environments, featuring passive PoE input and output, as well as robust power management. Its rugged, weather-resistant design provides dependable operation in extreme conditions.
Key Features
- 16 x Gigabit RJ45 Ports
- 2 x 1/10Gbps SFP+ Ports
- Supports Passive PoE Input & Output
- Weatherproof Design for Harsh Environments
- Up to 65°C Operating Temperature
Technical Specifications
Dimensions: Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5")
Weight: Without wall-mount: 3.4 kg (7.5 lb), With wall-mount: 3.8 kg (8.4 lb)
Enclosure material: Diecast aluminum alloy, UV-resistant polycarbonate
Mount: Pole/wall mount
Wind loading: 153 N at 200 km/h (34 lbf at 125 mph)
Wind survivability: 200 km/h (125 mph)
Networking interface: 1 x RJ45 serial port, 16 x 10/100/1000 RJ45 ports, 2 x 1/10 Gbps SFP+ ports
Power method: DC terminal block, 54V DC, 6A input
Power supply: Min. 54V / 0.8A (Excludes PoE output)
Passive PoE input: 2 x 54V / 1.5A, 4-pair PoE, ports 1 and 2
Passive PoE output: 4 x 54V or 24V / 1.4A PoE, ports 1-4
Power monitoring: 1 x DC terminal block, 2 x RJ45, ports 1 and 2, PoE input or output power
Max. power consumption: 40W (Excludes PoE output)
Button: Factory reset
LEDs: System power, RJ45 ports (speed/link/activity/PoE), SFP ports (speed/link/activity)
Operating temperature: -40 to 65°C (-40 to 149°F)
Operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
