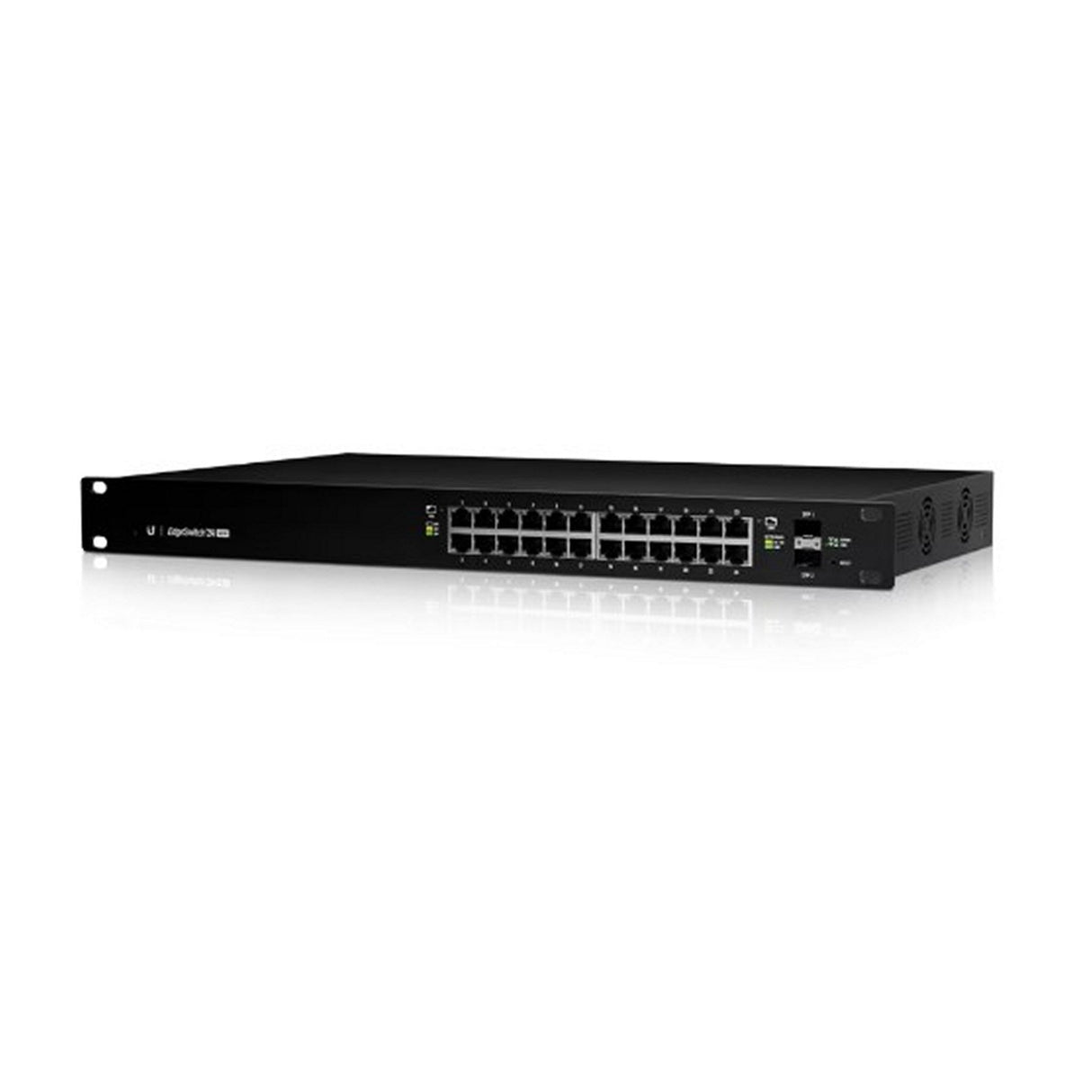

Ubiquiti EdgeSwitch 24 PoE 24 Ports 500W Switch
Ubiquiti EdgeSwitch 24 PoE 24 Ports 500W Switch
Free Shipping
Ubiquiti EdgeSwitch 24 PoE (500W)
The Ubiquiti EdgeSwitch 24 PoE (500W) is a powerful, high-performance managed switch designed for enterprise networks, featuring 24 Gigabit Ethernet PoE+ ports and 2 SFP ports for seamless fiber connectivity. This versatile switch offers 500W of PoE power, providing the flexibility to support a variety of devices. With robust management options and a compact 1U design, it is perfect for scalable installations and offers exceptional throughput and switching capabilities.
Key Features
- 24 PoE+ Ethernet ports and 2 SFP ports
- 500W PoE power output
- Layer 2/3 management support
- 1U rackmount design for easy integration
Technical Specifications
Mechanical:
Dimensions: 485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2")
Weight: 4.8 kg (10.6 lb)
Hardware:
Networking Interface: (24) 10/100/1000 Mbps RJ45 Ethernet ports, (2) 1 Gbps SFP ports
Management Interface: (1) RJ45 serial port, Ethernet In/Out-Band
Total Non-blocking Throughput: 26 Gbps
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
Power:
Power Method: 100-240V AC, 50-60 Hz, universal input
Power Supply: AC/DC, internal, 500W
Max Power Consumption: 500W (Includes PoE output), 30W (Excludes PoE output)
PoE Per Port: PoE+: 34.2W, Passive PoE: 17W
Voltage Range PoE+ Mode: 50ā57V
Voltage Range Passive PoE: 20ā27V
Additional:
ESD/EMP Protection: Air/contact: Ā±24 kV
LEDs: RJ45 ports: PoE, speed/link/activity; SFP ports: speed/link/activity
Rackmount: Yes, 1U high
Shock and Vibration: ETSI300-019-1.4 Standard
Ambient Operating Temperature: -5 to 40Ā° C (23 to 104Ā° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
