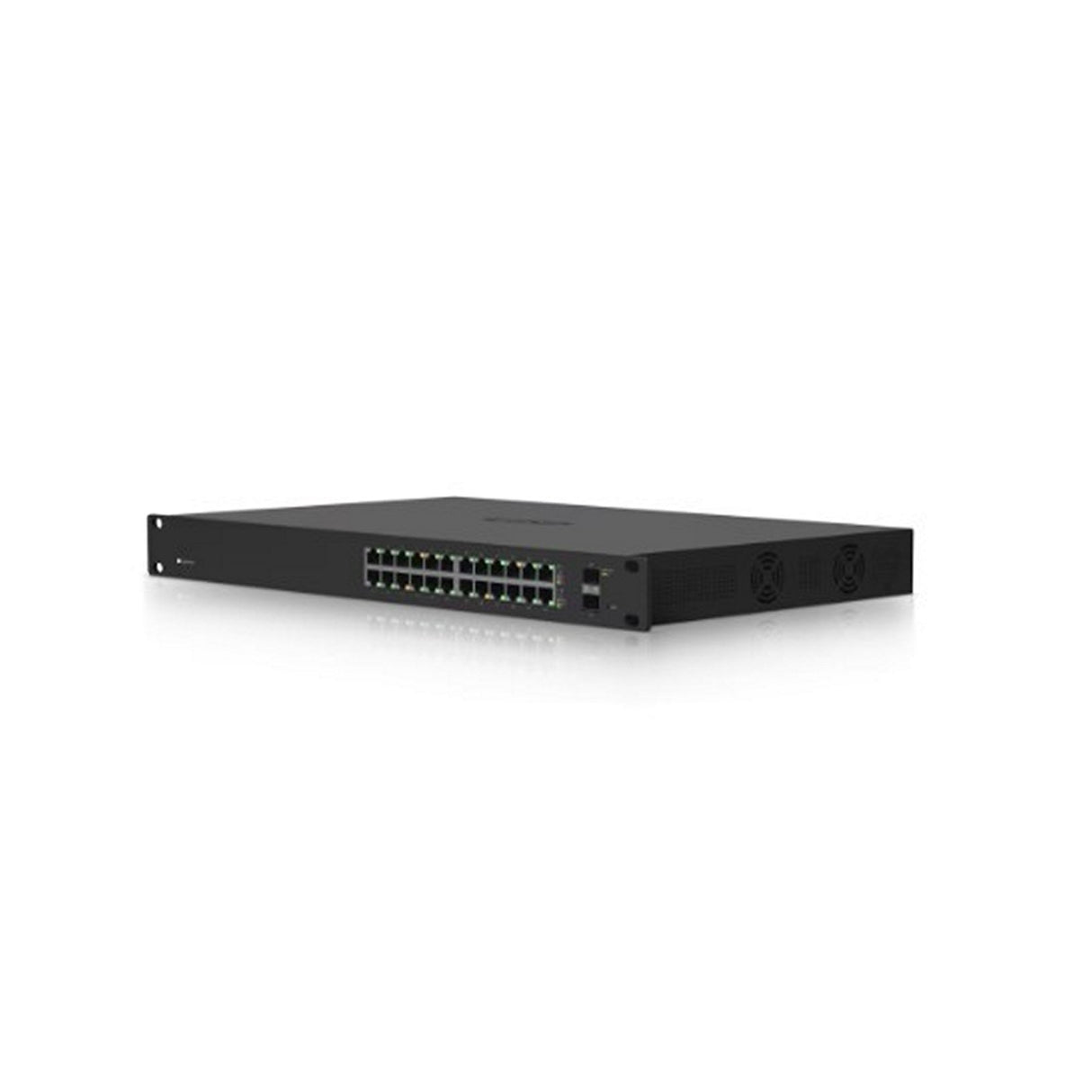

Ubiquiti EdgeSwitch 24 PoE (250W)
The Ubiquiti EdgeSwitch 24 PoE (250W) offers a comprehensive solution for advanced network management. With 24 Gigabit Ethernet ports and 2 SFP ports, it provides high-speed data transfer and efficient power delivery to connected devices. Ideal for high-density environments, this switch features PoE+ and passive PoE support, ensuring seamless connectivity. With 250W total PoE power, it is perfect for powering devices such as IP cameras, access points, and more. Its robust 1U rack-mountable design makes it suitable for professional networking setups.
Key Features
- (24) Gigabit Ethernet ports with PoE+ and passive PoE
- (2) SFP ports for high-speed fiber uplinks
- 250W total PoE power budget
- 1U rack-mountable design
- Advanced Layer 2 and Layer 3 functionality
Technical Specifications
Mechanical:
Dimensions: 485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2")
Weight: 4.7 kg (10.4 lb)
Hardware:
Management Interface: (1) RJ45 serial port, Ethernet In/Out-Band
Networking Interface: (24) GbE RJ45 ports, (2) 1G SFP ports
PoE Interface: (24) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-), (24) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 8-)
Total Non-blocking Throughput: 26 Gbps
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
Power:
Power Method: 100-240V AC, universal input, 50/60 Hz
Power Supply: AC/DC, internal, 250W
Max Power Consumption: 30W (Excludes PoE output)
Total PoE Available: 250W
Max PoE Wattage Per Port: PoE+: 34.2W, Passive PoE: 17W
Voltage Range PoE Mode: PoE+: 50-57V, Passive PoE: 20-27V
Additional:
ESD/EMP Protection: Air/contact: ±24 kV
LEDs: Ethernet ports: PoE, speed/link/activity; SFP ports: speed/link/activity
Button: Factory reset
Rackmount: Yes, 1U
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
