Ubiquiti EdgeSwitch 8 8 Ports, 150W PoE Switch
Ubiquiti EdgeSwitch 8 8 Ports, 150W PoE Switch
Free Shipping

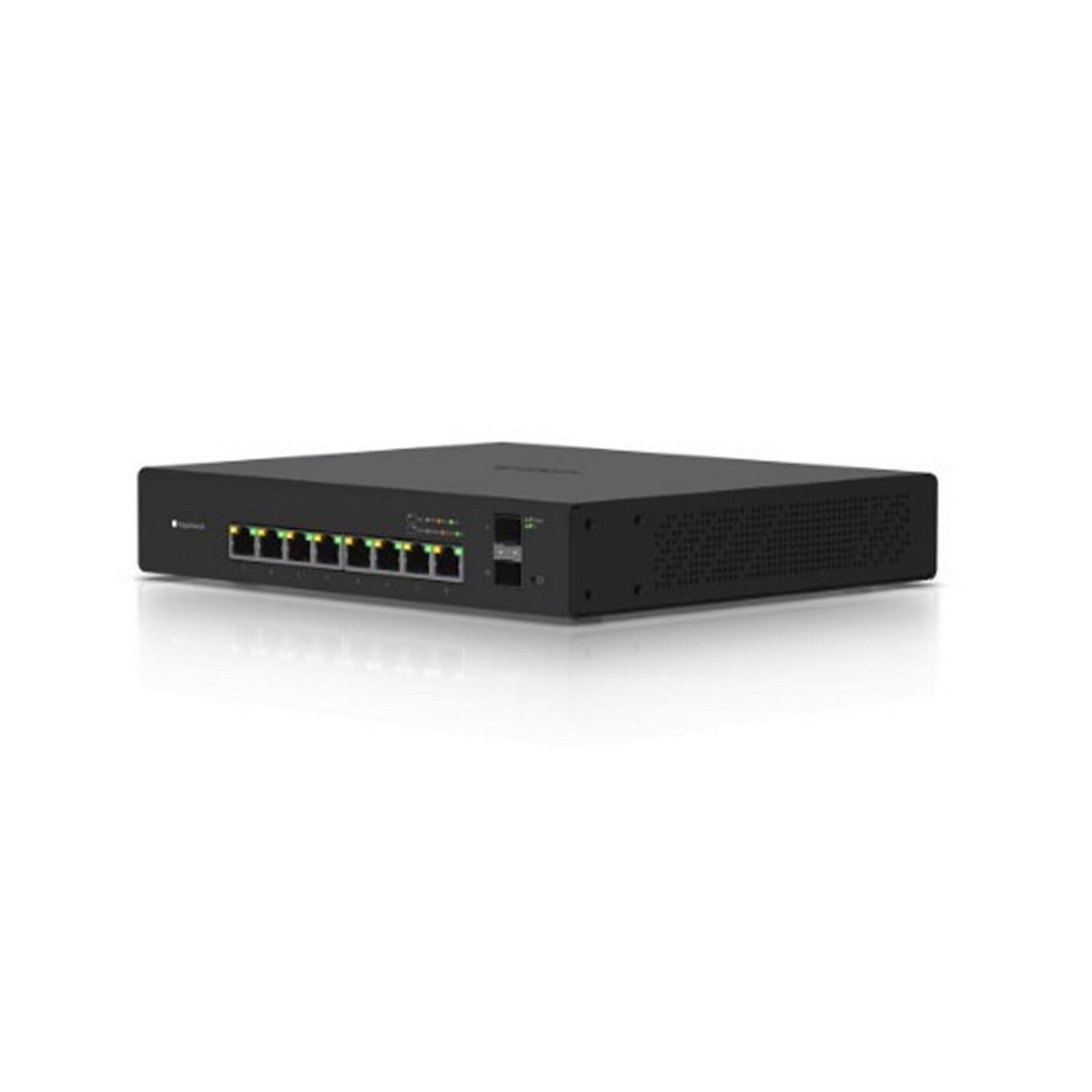

Ubiquiti EdgeSwitch 8 (150W) - 8 Ports, PoE+ Support
The Ubiquiti EdgeSwitch 8 (150W) offers high-performance networking with eight Gigabit Ethernet (GbE) ports, along with two 1G SFP ports for fiber connectivity. Built for versatility, it supports PoE/PoE+ and passive PoE, delivering a total of 150W across its ports. Its robust build and internal power supply ensure reliable operation in various environments.
Key Features:
- 8 Gigabit Ethernet Ports and 2 1G SFP Ports
- Supports PoE/PoE+ and 24V passive PoE
- 150W total PoE power output
- Non-blocking throughput of 10 Gbps
- Rackmountable with 1U height
Technical Specifications:
Dimensions: 8 x 1.7 x 9.3 inches (204 x 43 x 235 mm)
Weight: 3.8 lbs (1.7 kg)
Management Interface: (1) RJ45 serial port, Ethernet In/Out-Band
Networking Interface: (8) GbE RJ45 ports, (2) 1G SFP ports
PoE Interface: (8) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-), (8) 24V/0.7A passive PoE 2-pair (Pins 4, 5+; 7, 8-)
Total Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Power Method: 100-240V AC, universal input, 50/60 Hz, AC/DC integrated PSU
Power Supply: AC/DC, internal, 150W DC
Max. Power Consumption: 20W (Excludes PoE output)
Total PoE Available: 150W
Max. PoE Wattage per Port by PSE: PoE+: 34.2W, Passive PoE: 17W
ESD/EMP Protection: Air/contact: ± 24kV
LEDs: System status, PoE, link/speed/activity
Button: Factory reset
Shock and Vibration: ETSI300-019-1.4 Standard
Ambient Operating Temperature: -25 to 45°C (-13 to 113°F) with 150W, -25 to 55°C (-13 to 131°F) with 100W, -25 to 60°C (-13 to 140°F) with external DC
Ambient Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC
