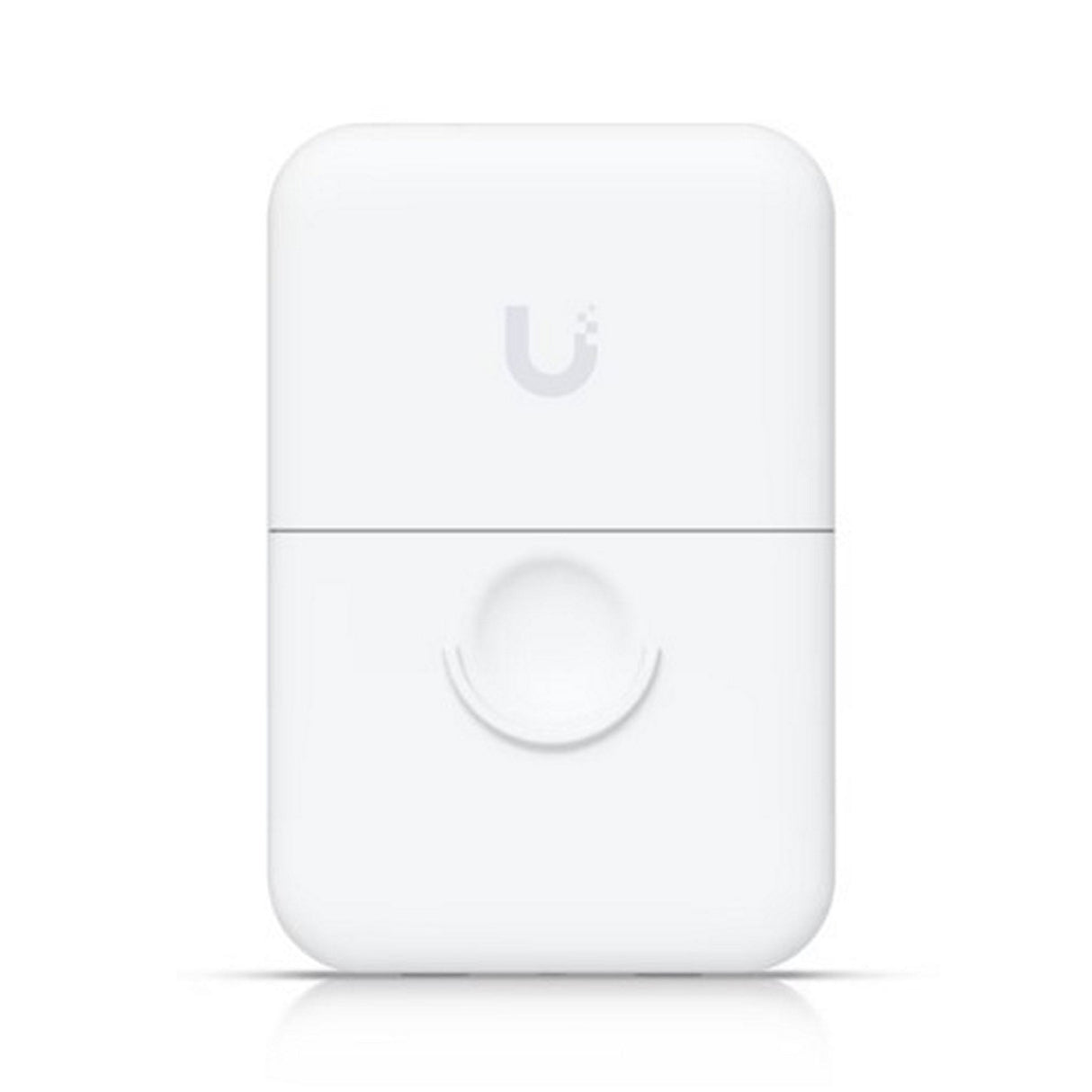

Ubiquiti Ethernet Surge Protector, IPX5, PoE Support
Ubiquiti Ethernet Surge Protector, IPX5, PoE Support
Ubiquiti Ethernet Surge Protector - IPX5, PoE, 2.5Gbps
The Ubiquiti Ethernet Surge Protector provides reliable surge protection for outdoor Ethernet equipment. With IPX5 weatherproofing, it ensures your network connections remain safe in various environmental conditions. Ideal for protecting devices operating at speeds up to 2.5Gbps, it absorbs transient surges, providing peace of mind for network infrastructure.
Key Features
- Protects against surges up to 700V
- IPX5 weatherproof for outdoor use
- Supports up to 2.5 Gbps data speeds
- PoE support for simplified installation
Technical Specifications
Dimensions: 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight: 80 g (2.8 oz)
Weatherproofing: IPX5
Networking Interface: (2) RJ45 female connectors
ESD/EMP Protection: Absorbs transient current with response to surge voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage: 90V @ 100V/s
Max. Impulse Spark-Over Voltage: 700V @ 1kV/µs
Discharge Current: 10kA+
Max. Insulation Resistance: 1G ohm @ 50V
Max. Capacitance: 1.0 pF @ 1 MHz
Data Line Protection: Up to 2.5 Gbps
PoE Support: Yes
Shock and Vibration Certification: ETSI300-019-1.4 Standard
Ambient Operating Temperature: -30 to 65° C (-22 to 149° F)
Ambient Operating Humidity: 10 to 90% noncondensing
