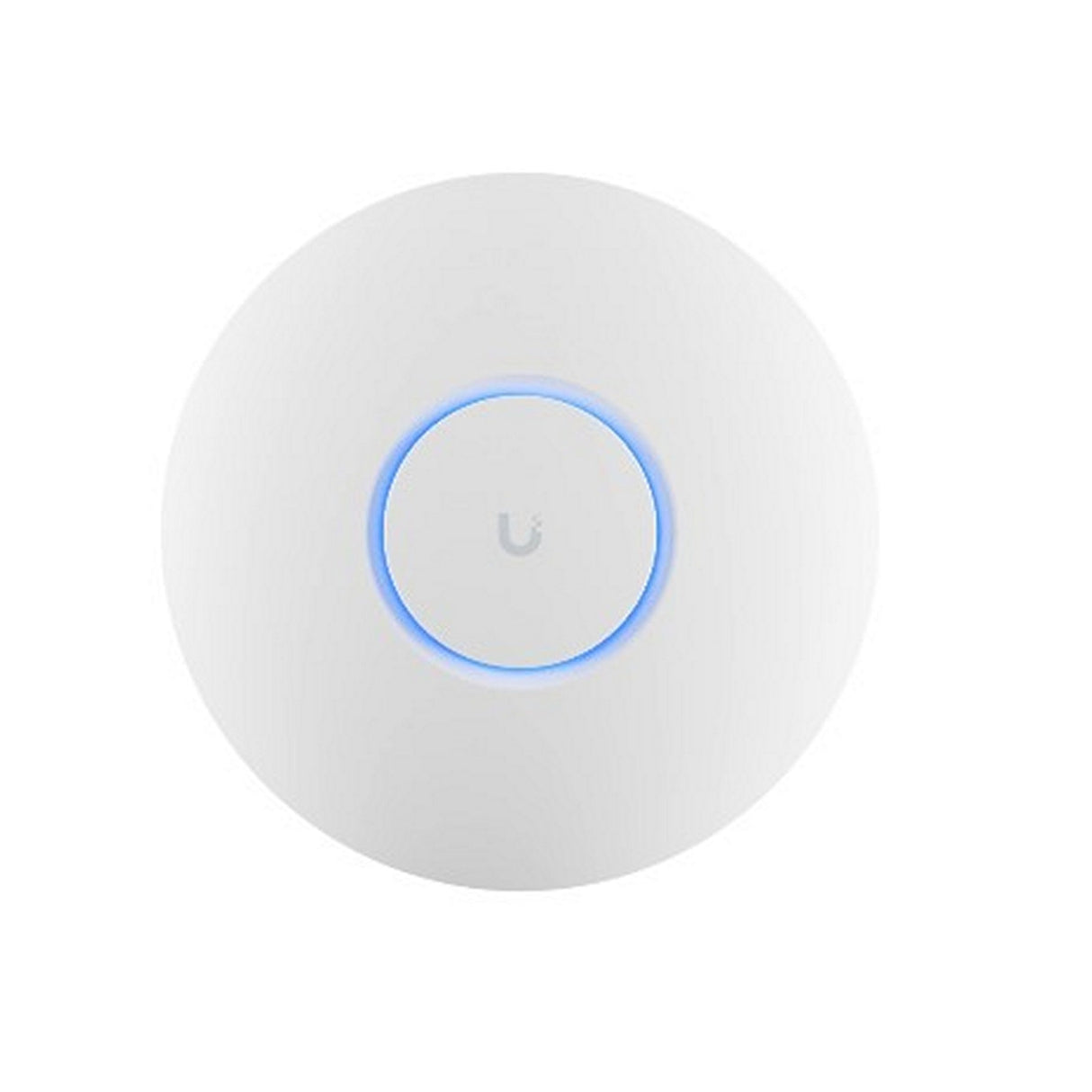

Ubiquiti U6 In-Wall Wi-Fi 6 Access Point
Ubiquiti U6 In-Wall Wi-Fi 6 Access Point
Free Shipping
Ubiquiti U6 Plus WiFi 6 Access Point - High-Performance Coverage
The Ubiquiti U6 Plus WiFi 6 Access Point offers advanced WiFi performance, providing superior speed and coverage for both residential and commercial applications. It supports 2.4 GHz and 5 GHz frequencies with WiFi 6 technology, delivering faster speeds and greater capacity. This access point is ideal for high-density environments with up to 300 concurrent clients and an extended coverage area. The U6 Plus is powered via PoE, ensuring easy deployment in various locations including ceilings and walls.
Key Features
- Dual-band WiFi 6 support for faster speeds and improved efficiency
- Supports 300+ clients, ideal for high-density environments
- Up to 2.4 Gbps throughput on 5 GHz band
- Wall or ceiling mountable for versatile installation options
- PoE powered for easy deployment and management
Technical Specifications
Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3")
Weight: Without mount: 338 g (0.8 lb), With mount: 413 g (0.9 lb)
Enclosure Material: Polycarbonate, aluminum
Mount Material: ABS, SGCC steel
Networking Interface: (1) GbE RJ45 port
Management Interface: Ethernet
Power Method: PoE
Supported Voltage Range: 44–57V DC
Max. Power Consumption: 9W
Max. TX Power: 2.4 GHz 23 dBm, 5 GHz 23 dBm
MIMO: 2 x 2 (DL/UL MU-MIMO) for both 2.4 GHz & 5 GHz
Max. Data Rate: 2.4 GHz 573.5 Mbps (BW40), 5 GHz 2.4 Gbps (BW160)
Antenna Gain: 2.4 GHz 3 dBi, 5 GHz 5.4 dBi
LEDs: White/blue
Button: Factory reset
Mounting: Wall, ceiling (Included)
Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
- WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest Traffic Isolation: Supported
- Zero-wait DFS: Yes (Supported with upcoming firmware versions)
- Concurrent Clients: 300+
- Data Rates: 802.11ax (WiFi 6) up to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Package Contents
- Ubiquiti U6 Plus WiFi 6 Access Point
- Mounting hardware (wall/ceiling)
- Quick Start Guide
