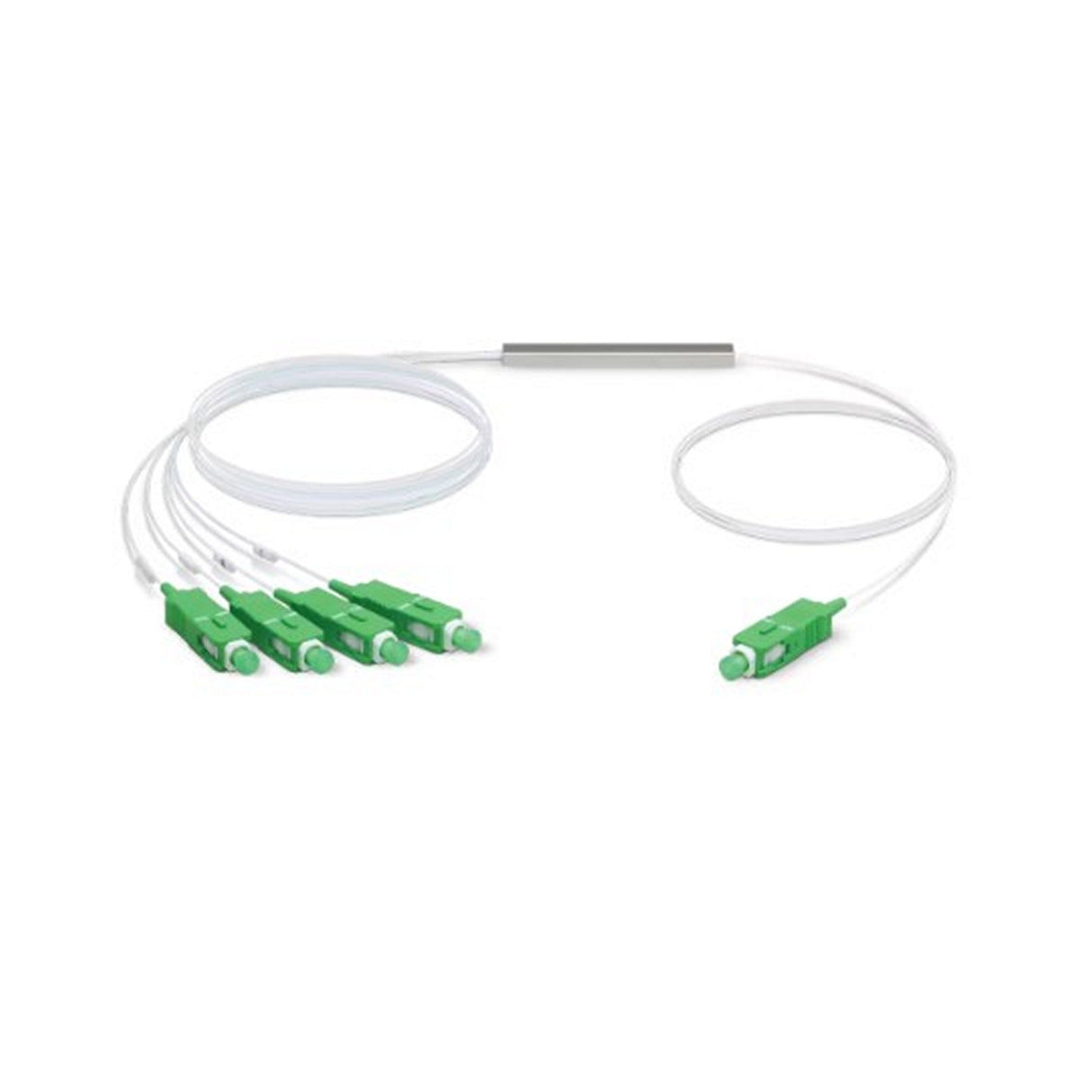

Ubiquiti UFiber Splitter - 1x4 Optical Distribution
The Ubiquiti UFiber Splitter provides a robust solution for splitting optical signals with minimal loss, perfect for FTTH applications. Designed with advanced G657A1 fiber technology, this splitter ensures high performance and reliability. Featuring one SC/APC input and four SC/APC outputs, it offers excellent insertion and uniformity loss metrics. Its durable construction supports a wide wavelength range, making it an essential component for efficient fiber network distribution.
Key Features
- One input and four outputs with SC/APC connectors.
- Low insertion and polarization-dependent loss.
- Wide operating temperature range for diverse environments.
- Compliant with G657A1 fiber standards.
Technical Specification
Input: (1) SC/APC
Outputs: (4) SC/APC
Insertion loss with connectors: 7.4 dB
Uniformity loss: 0.6 dB
Polarization dependent loss: 0.3 dB
Wavelength bandwidth: 1260-1650 nm
Return loss (All ports): 50 dB
Directivity: 55 dB
Fiber type: G657A1
Ambient operating temperature: -40 to 85° C (-40 to 185° F)
Total length: 4.06 m (13.32')
Weight: 58 g (2.0 oz)
