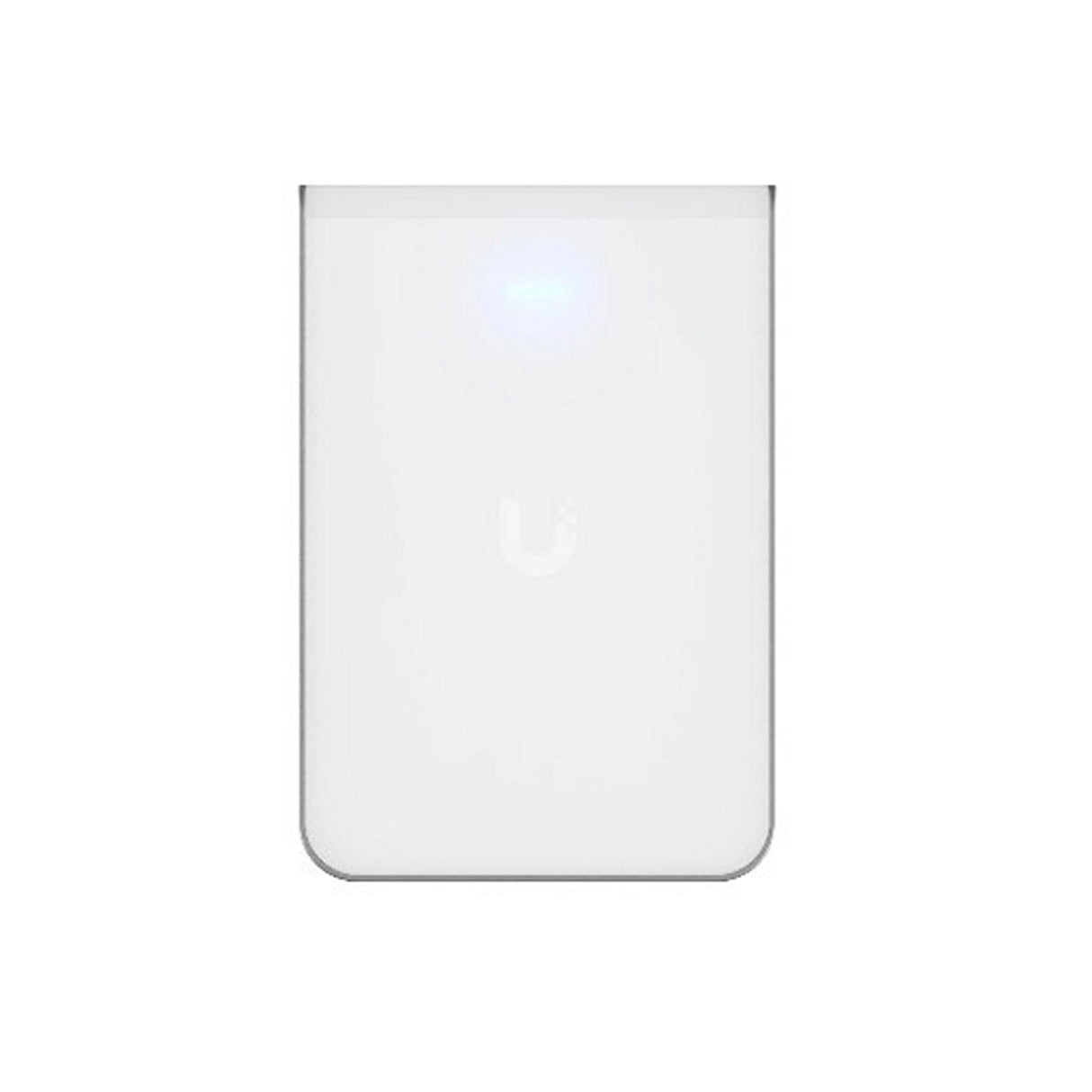

Ubiquiti U6 In-Wall Wi-Fi 6 Access Point

The Ubiquiti U6 In-Wall is a high-performance Wi-Fi 6 access point designed to deliver robust and reliable coverage in environments like offices, hotels, and classrooms. It supports over 300 devices and provides a seamless connection across its four Gigabit Ethernet ports. Powered by PoE+, this access point ensures easy installation and flexible deployment, ideal for high-density applications requiring superior performance and scalability.

Key Features:

• Wi-Fi 6 (802.11ax) support with six spatial streams
• Four Gigabit Ethernet ports for expanded network connectivity
• PoE+ powered for flexible installation
• Supports over 300 connected devices
• Perfect for high-density environments

Technical Specifications:

Dimensions: 5.5 x 3.8 x 1.3 inches (139.7 x 96 x 31.2 mm)
Weight: 1 lb (460 g)

Enclosure material: Plastic, aluminum
Mount material: Aluminum

Networking interface: (1) Data-in: GbE RJ45 port
(4) Data-out: GbE RJ45 ports

Management interface: Ethernet, Bluetooth
PoE interface: (1) PoE in (PoE output not used)
(1) PoE out (Requires a PoE+ switch)

Power method: PoE, PoE+ (Required for PoE output)
Power supply: UniFi PoE switch, 48V, 0.5A PoE adapter (Optional)
Max. power consumption: 13W (Excluding PoE output)
Max PoE wattage per port by PSE: 15.4W*

Max. TX power: 2.4 GHz 22 dBm, 5 GHz 26 dBm
MIMO: 2 x 2 (2.4 GHz), 4 x 4 (5 GHz)
Max. data rate: 2.4 GHz 573.5 Mbps, 5 GHz 4.8 Gbps

Antenna gain: 2.4 GHz 5 dBi, 5 GHz 5.9 dBi

LED: White/blue
Button: Factory reset
Mounting: Wall (Included)

Ambient operating temperature: -30 to 60°C (-22 to 140°F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Wi-Fi Standards and Software:

WiFi standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+

Application Requirements: UniFi Network Version 6.4.52 and later
