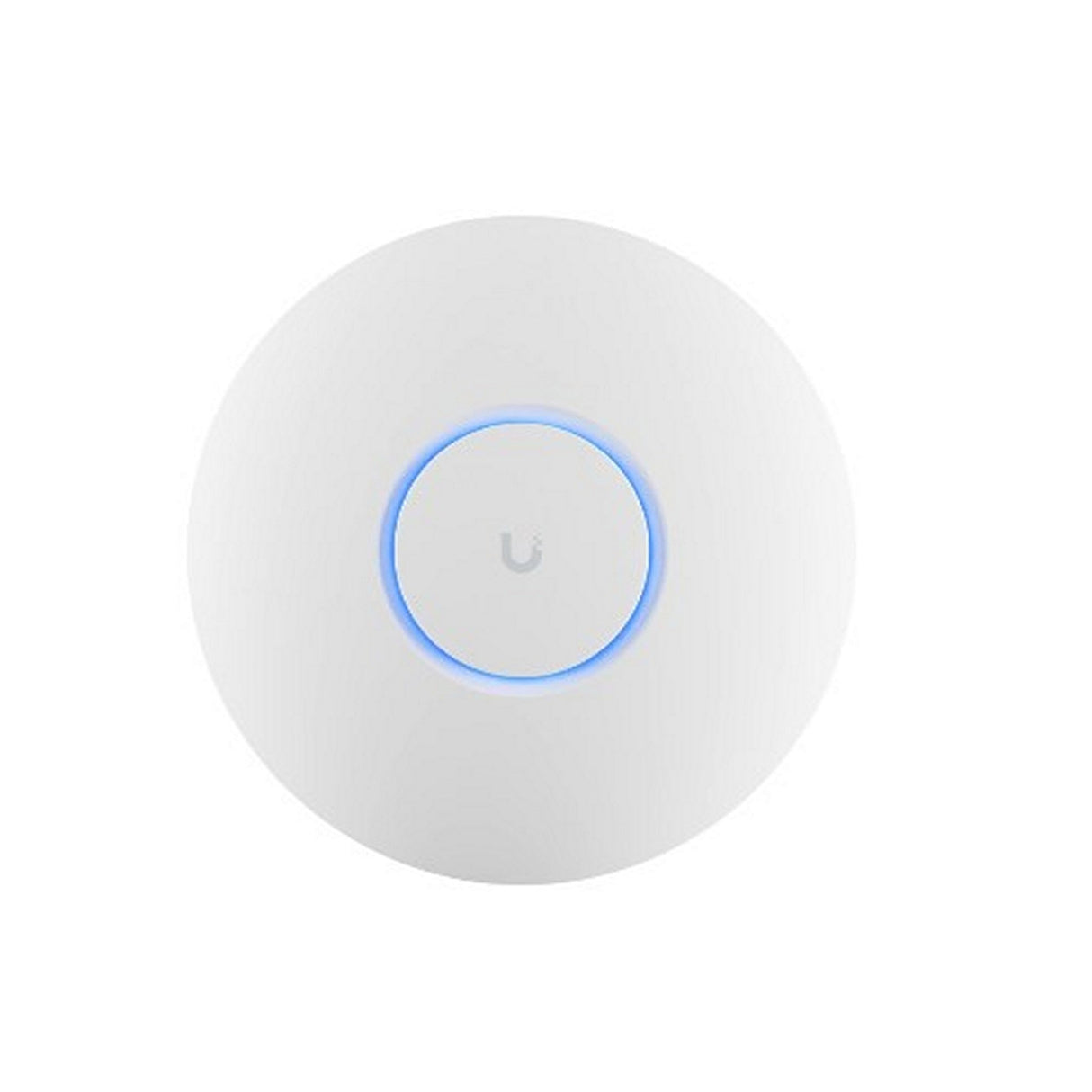

Ubiquiti U6 Lite WiFi 6 Access Point for Small Offices

The Ubiquiti U6 Lite is an efficient, compact WiFi 6 access point designed for small offices or home environments. This high-performance access point supports 4 spatial streams and is capable of covering up to 115 m² (1,250 ft²). With WiFi 6 technology, the U6 Lite supports up to 300+ connected devices, offering seamless connectivity with robust performance. Powered by PoE, it features a GbE uplink and is an ideal solution for modern network setups.

Key Features:

• WiFi 6 for enhanced speed and performance
• Supports 4 spatial streams for fast, reliable wireless connectivity
• Coverage area of 115 m² (1,250 ft²)
• Connects over 300 devices simultaneously
• Powered by PoE for easy installation
• Gigabit Ethernet uplink

Technical Specifications:

WiFi 6
4 spatial streams
Coverage: 115 m² (1,250 ft²)
Concurrent Devices: 300+ connected devices
Power Method: Powered via PoE
GbE Uplink: Yes

Mechanical:

Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3")
Weight: Without mount: 300 g (10.6 oz), With mount: 315 g (11.1 oz)
Enclosure Material: Polycarbonate, aluminum
Mount Material: Polycarbonate, SGCC steel

Hardware:

Networking Interface: (1) GbE RJ45 port
Management Interface: Ethernet, Bluetooth
Power Supply: PoE (48V, 0.32A PoE adapter, not included)
Max Power Consumption: 12W
Max TX Power: 2.4 GHz: 23 dBm, 5 GHz: 23 dBm
Max Data Rate: 2.4 GHz: 300 Mbps, 5 GHz: 1.2 Gbps
Antenna Gain: 2.4 GHz: 2.8 dBi, 5 GHz: 3 dBi

Software:

Wi-Fi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)
Security: WPA-PSK, WPA2-PSK, WPA3
BSSID: 8 per radio
Guest Traffic Isolation: Supported
VLAN: 802.1Q
QoS: Per-user rate limiting

Operating Conditions:

Operating Temperature: -30 to 60°C (-22 to 140°F)
Operating Humidity: 5% to 95% noncondensing

Package Contents:

• Ubiquiti U6 Lite Access Point
• Wall/ceiling mount
• Quick start guide
