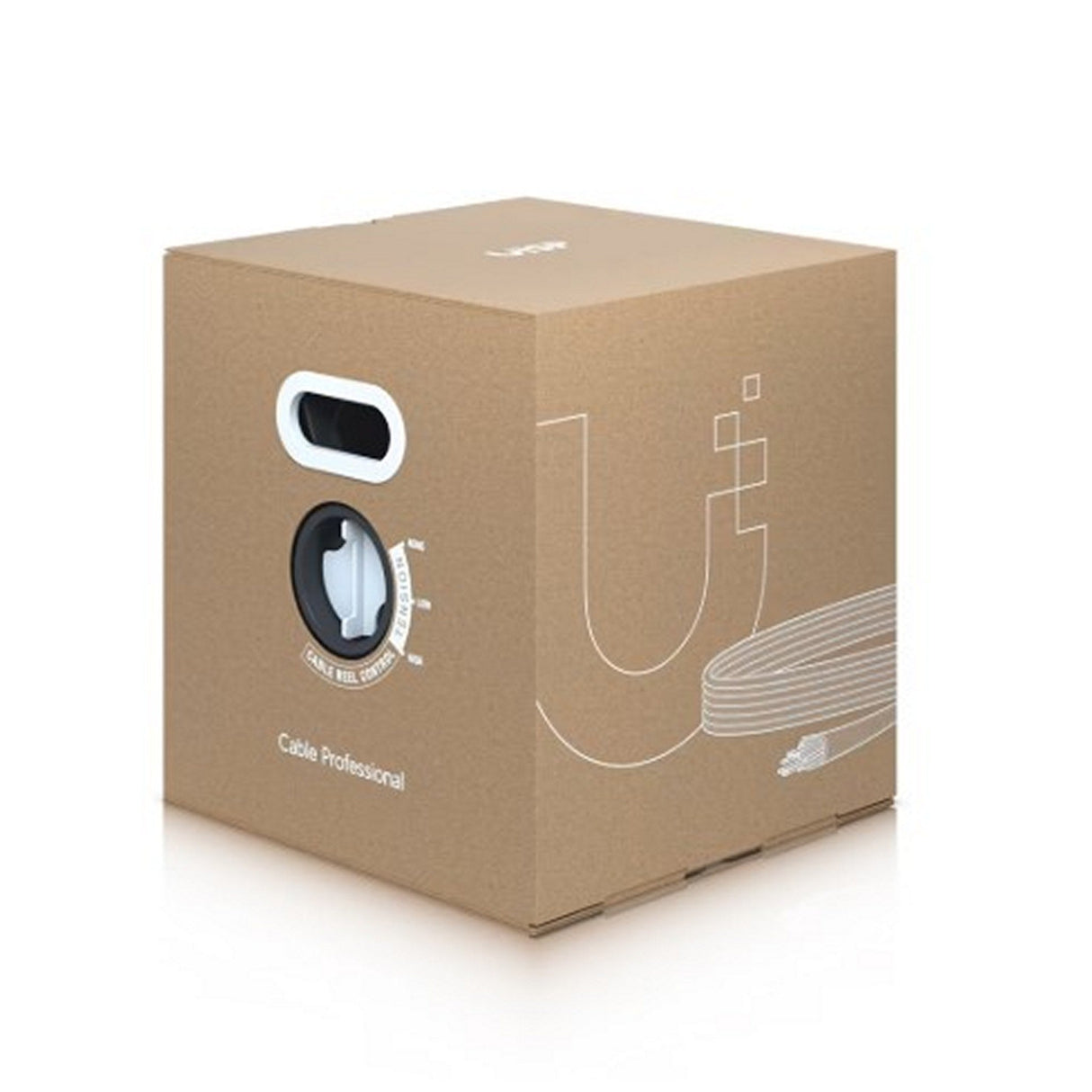

Ubiquiti UISP Cable Pro CAT5e 1000ft Shielded Ethernet Cable
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
UISP Cable Pro - Shielded CAT5e Ethernet Cable for Outdoor Use
The Ubiquiti UISP Cable Pro is a high-quality, shielded Ethernet cable designed for industrial and outdoor installations. With a length of 305 meters (1,000 feet), this black, UV-resistant cable ensures stable, high-performance connectivity in various environments. It supports Ethernet speeds up to 1 Gbps, making it ideal for demanding applications. The solid bare copper conductors, robust insulation, and protective jacket offer long-lasting durability and protection against external factors like UV exposure and harsh weather conditions.
Key Features:
- UV-resistant for long-term outdoor use
- Supports Ethernet speeds up to 1 Gbps
- Shielded CAT5e construction with solid bare copper conductors
- Includes a rip cord for easy cable installation
- Operates in extreme temperature conditions
Technical Specifications:
Box Dimensions: 330 x 330 x 340 mm (13 x 13 x 13.4")
Box Weight: 12 kg (26.5 lb)
Cable Length: 305 m (1,000 ft)
Cable Color: Black
Cable Type: CAT5e, shielded
UV Resistance: ASTM G 151/154
Ethernet Support: Up to 1 Gbps
Conductor Wire Gauge: 24 AWG
Conductor: Solid bare copper
Conductor Diameter: 0.500 Ā± 0.005 mm
Insulation Type: Solid polyethylene
Insulation Thickness: Avg. 0.26 mm (Min. 0.25 mm)
Insulation Diameter: 1.04 Ā± 0.03 mm
Separation (Polyester Wrapping): 0.025 mm thick, Extent: 20 mm
Cable Shield (Aluminum Foil): 0.060 mm thick, Extent: 18 mm
ESD Drain Wire: 0.4 CCS
Rip Cord: Yes
Jacket Material: Polyethylene
Jacket Thickness: Avg. 0.50 mm (Min. 0.46 mm)
Jacket Outer Diameter: 6.0 Ā± 0.30 mm
Jacket Color: Black
Storage Temperature: -30 to 75Ā° C (-22 to 167Ā° F)
Installation Temperature: -20 to 60Ā° C (-4 to 140Ā° F)
Ambient Operating Temperature: -40 to 80Ā° C (-40 to 176Ā° F)
Standards: ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2)
