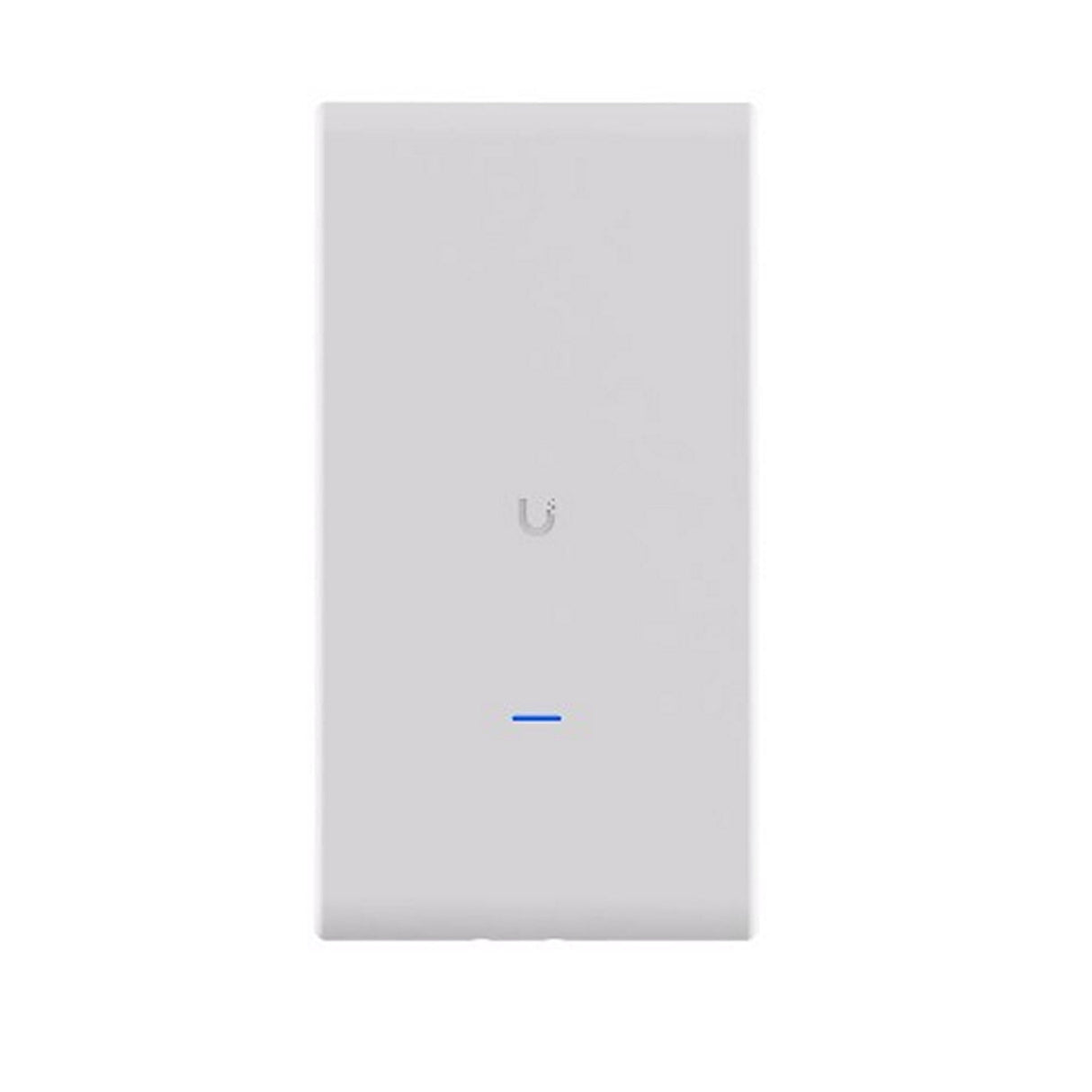

Ubiquiti UniFi AC Mesh Pro Access Point
The Ubiquiti UniFi AC Mesh Pro Access Point offers high-performance WiFi coverage, designed for both indoor and outdoor environments. This access point supports dual-band WiFi, with advanced MIMO technology for better range and faster speeds. Perfect for large areas, it covers up to 2,000 sq. ft. and handles up to 250+ devices simultaneously. Easy to install with Power over Ethernet (PoE), the UniFi AC Mesh Pro provides reliable, high-speed connectivity for demanding network environments. Ideal for businesses and high-density areas needing robust wireless performance.
Key Features
- Supports dual-band WiFi with MIMO technology
- Coverage up to 2,000 sq. ft. with 250+ devices
- Weather-resistant design for outdoor use
- Power over Ethernet (PoE) for easy installation
- Advanced QoS and VLAN support for enhanced network performance
Technical Specifications
Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight: 633 g (1.4 lb)
Networking Interface: (2) GbE RJ45 ports
Management Interface: Ethernet
Power Method: PoE
Power Supply: Gigabit PoE adapter 48V DC, 0.5A (Note: 5-packs do not come with PoE adapters)
Max. Power Consumption: 9W
Max. TX Power: 22 dBm (2.4 GHz, 5 GHz)
MIMO: 3 x 3 (DL MU-MIMO) for 2.4 GHz and 5 GHz
Max. Data Rate: 450 Mbps (2.4 GHz), 1.3 Gbps (5 GHz)
Antenna Gain: 8 dBi (2.4 GHz, 5 GHz)
Button: Factory reset
Mounting: Wall, pole (Included)
Operating Temperature: -40 to 70Ā° C (-40 to 158Ā° F)
Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
WiFi Standards: 802.11a/b/g/n/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN: 802.1Q
BSSID: Up to 4 per radio
Advanced QoS: Per-user rate limiting
Guest Traffic Isolation: Supported
Power Save: Supported
WMM: Voice, video, best effort, and background
Concurrent Clients: 250+
Supported Data Rates (Mbps):
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
- 802.11ac: 6.5 Mbps to 1.3 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
