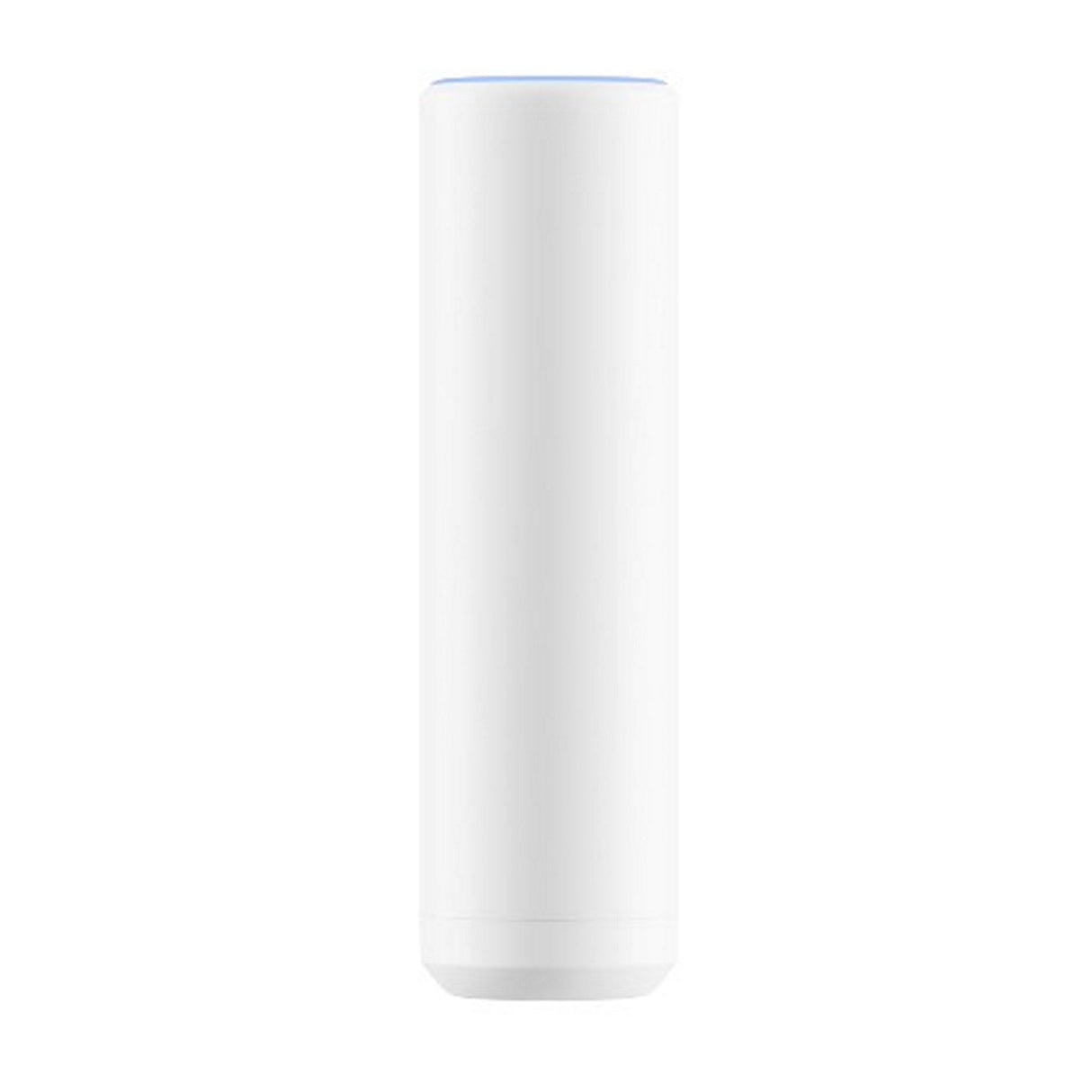

Ubiquiti UniFi FlexHD Access Point WiFi 5, 6.3-inches
Ubiquiti UniFi FlexHD Access Point WiFi 5, 6.3-inches
Free Shipping
Ubiquiti UniFi FlexHD Access Point - WiFi 5, 6 Spatial Streams
The Ubiquiti UniFi FlexHD is an ideal choice for both indoor and outdoor wireless coverage, providing exceptional performance with WiFi 5 and 6 spatial streams. It offers coverage for up to 200+ devices with seamless connectivity. The compact, sleek design fits in a variety of environments, while its robust PoE support simplifies installation. With advanced mounting options and a maximum throughput rate of 1.7 Gbps on 5 GHz, the FlexHD is the perfect solution for high-demand mesh networks.
Key Features
- WiFi 5 support with up to 6 spatial streams
- Up to 1.7 Gbps data rate on 5 GHz
- Versatile mounting options: wall, pole, and desktop
- PoE powered for easy setup
- Up to 200+ concurrent clients
- Supports 802.11ac Wave 2 for faster wireless speeds
Technical Specifications
Dimensions: Ć48.5 x 159.5 mm (Ć1.9 x 6.3")
Weight: 315 g (0.7 lb)
Networking Interface: (1) GbE RJ45 port
Management Interface: Ethernet
Power Method: PoE
Power Supply: UniFi PoE switch, 48V, 0.32A Gigabit PoE adapter (Included)
Supported Voltage Range: 44ā57V DC
Max. Power Consumption: 10.5W
Max. TX Power
Ā Ā Ā 2.4 GHz: 23 dBm
Ā Ā Ā 5 GHz: 26 dBm
MIMO
Ā Ā Ā 2.4 GHz: 2 x 2
Ā Ā Ā 5 GHz: 4 x 4
Throughput Rate
Ā Ā Ā 2.4 GHz: 300 Mbps
Ā Ā Ā 5 GHz: 1.7 Gbps
Antenna Gain
Ā Ā Ā 2.4 GHz: 1.6 dBi
Ā Ā Ā 5 GHz: 4 dBi
Button: Factory reset
Mounting: Wall, desktop, pole (Included), ceiling (Optional)
Ambient Operating Temperature: -30 to 70Ā° C (-22 to 158Ā° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
WiFi Standards: 802.11 a/b/g/n/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest Traffic Isolation: Supported
Concurrent Clients: 200+
Supported Data Rates
Ā Ā Ā 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Ā Ā Ā 802.11b: 1, 2, 5.5, 11 Mbps
Ā Ā Ā 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Ā Ā Ā 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Ā Ā Ā 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
