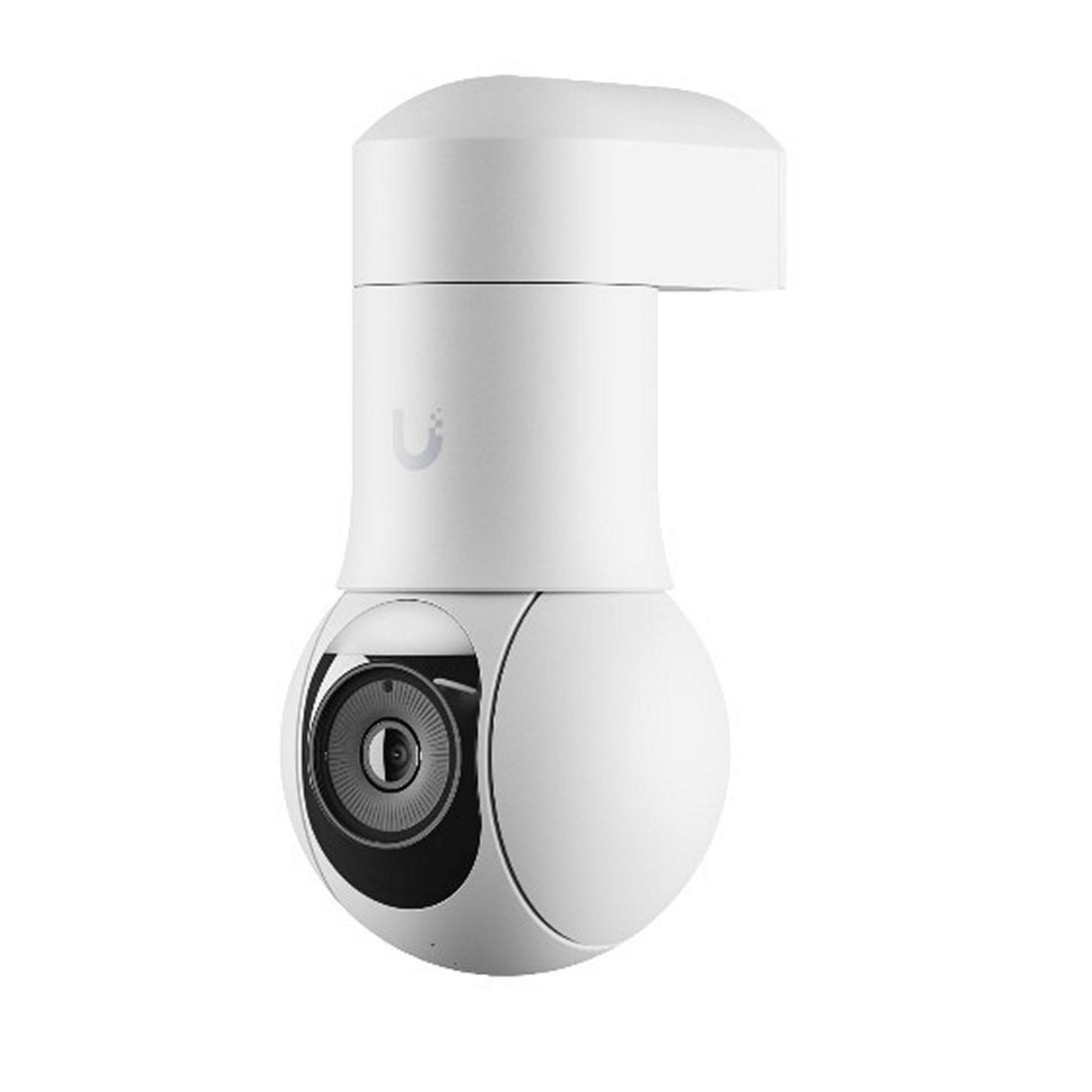

UI Camera G5 PTZ

The Ubiquiti UniFi Video Camera G5 PTZ is a compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options. It features 2K (4MP) video resolution, 2x optical zoom, 20 m (65 ft) IR night vision, AI event detections and automatic person tracking. With a built-in microphone, you can also record audio. The camera features an integrated LED spotlight for color night vision, and it can be connected and powered using PoE+.

---

Key Features

• 2K (4MP) video resolution
• 2x optical zoom
• 20 m (65 ft) IR night vision
• AI event detections and automatic person tracking
• Record audio with integrated microphone
• Integrated LED spotlight for color night vision
• Connect and power using PoE+

---

Technical Specifications

Mechanical

• Dimensions:
  • Without mount: Ø90 x 152.5 mm (Ø3.5 x 6")
  • With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7")
• Weight:
  • Without mount: 580 g (1.3 lb)
  • With mount: 650 g (1.4 lb)
• Enclosure material: Aluminum alloy, polycarbonate
• Mount material:
  • Wall mount: polycarbonate
  • Pole mount: aluminum alloy
• Pole mount diameter: 38–50 mm (1.5–2") on pipe outer diameter
• Weatherproofing: IP66
• Resistance: IK04

Optics

• Sensor: 5MP 1/2.7" CMOS
• Lens: F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4
• View angle:
  • 16:9 Wide: H: 99.7°, V: 51.9°, D: 121°
  • 16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4°
• Night mode: Built-in IR & white LED illumination with IR cut filter
• IR distance: 20 m (65 ft)
• IR limitation: Keep distance from top/side ≥60 cm (2 ft)

Video

• Resolution: 4MP 2688 x 1512 (16:9)
• Max. frame rate: 30 FPS

System

• Networking interface: 10/100 MbE RJ45 port
• Max. power consumption: 14W
• Power method: PoE+
• Supported voltage range: 37–57V DC
• LEDs: R/G/B/W: link, activity Floodlight: 400 lm
• Button: Factory reset
• Mounting: Wall, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional, sold separately)
• Ambient operating temperature: -30 to 45º C (-22 to 113º F)
• Ambient operating humidity: 0 to 90% noncondensing
• Certifications: FCC, IC, CE

Audio

• Microphone: Yes (Can be disabled)

Software

• Web application: UniFi Protect
• Mobile app: UniFi Protect iOS™ and Android™
