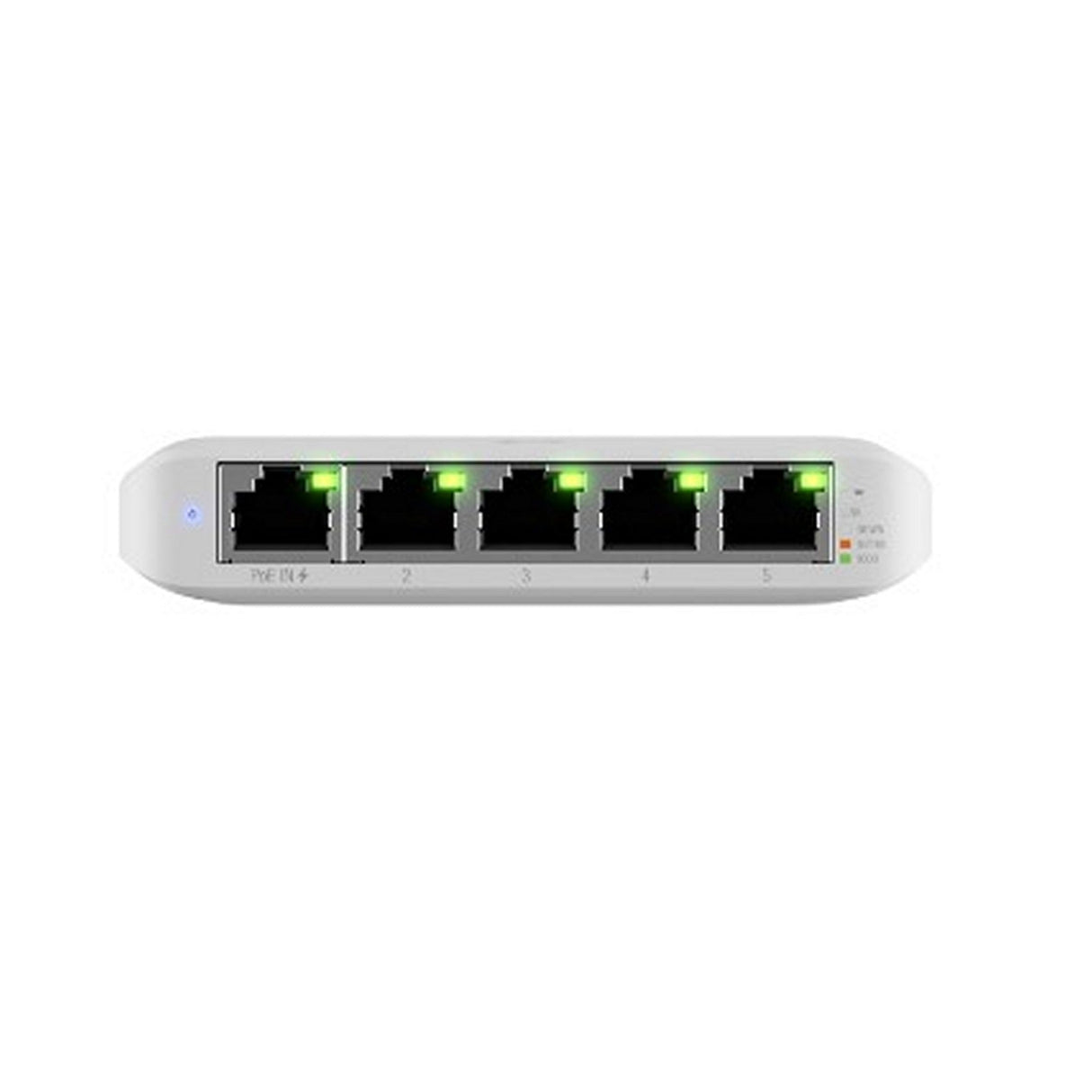

Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini) 5-Port PoE Switch
The Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini) offers a compact yet powerful solution for home and office networks. With 4 Gigabit Ethernet ports and one PoE input, it supports both data and power transmission, making it an excellent choice for powering devices such as cameras and phones. This Layer 2 switch is powered by either PoE or a 5V USB-C adapter, providing flexibility in how it's integrated into your network.
Key Features
- 5-port design with 4 Gigabit Ethernet ports
- PoE input support for data and power transmission
- 5 Gbps non-blocking throughput for efficient data handling
Technical Specifications

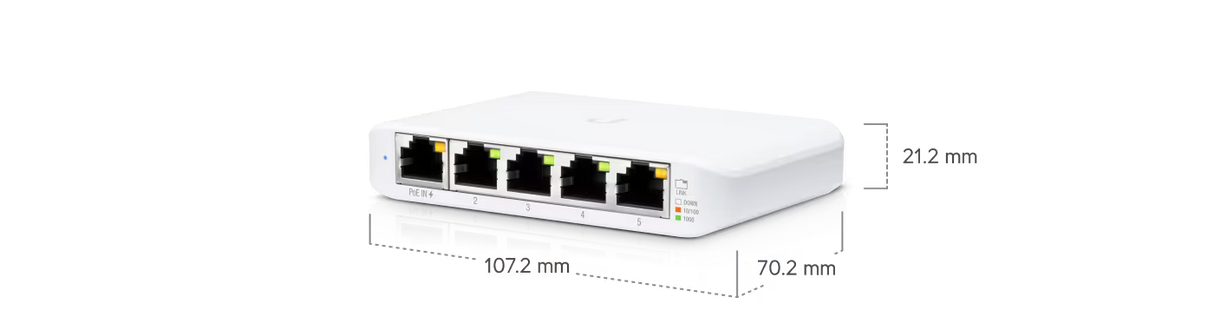

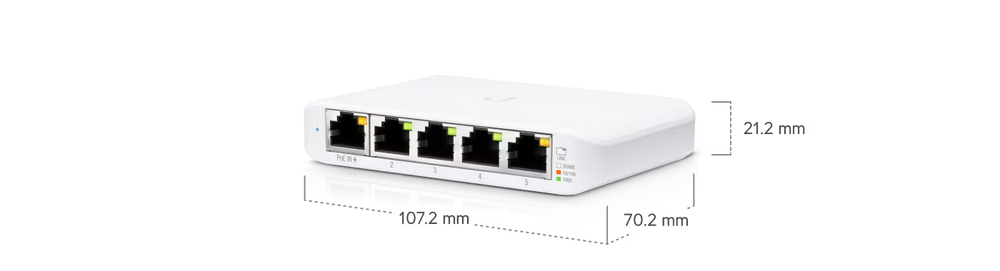

Dimensions: 4.2" x 2.8" x 0.8" (107 x 70 x 21 mm)
Weight: 5.3 oz (150 g)
Enclosure Material: Polycarbonate
Management Interface: Ethernet In-Band

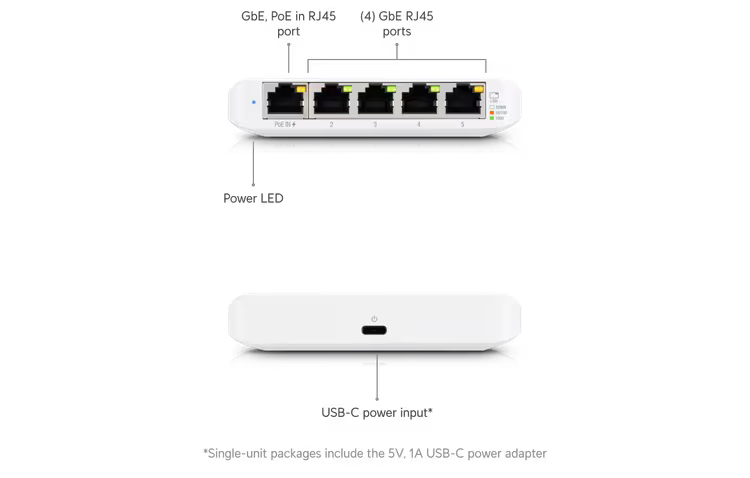

Networking Interface: (5) GbE RJ45 ports

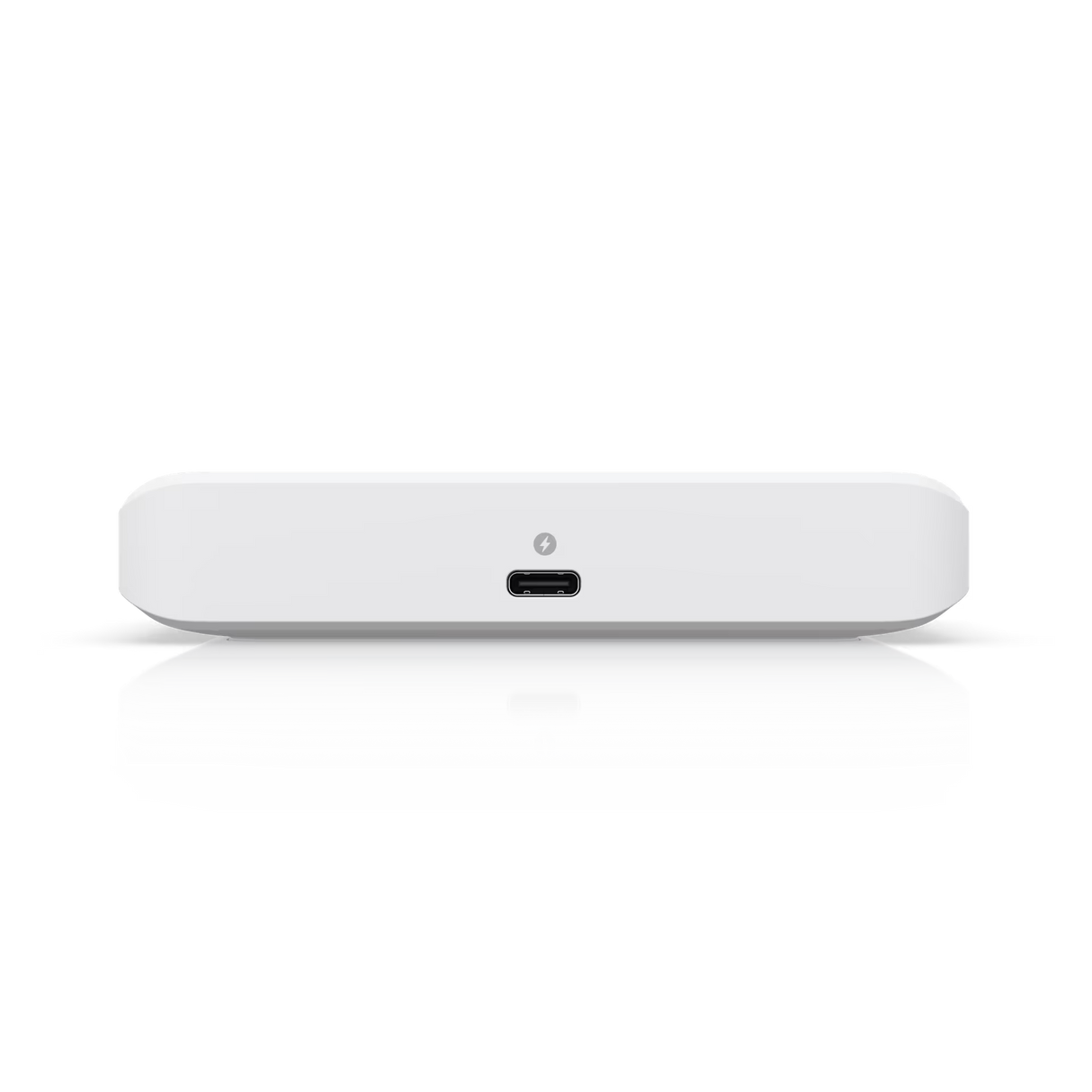

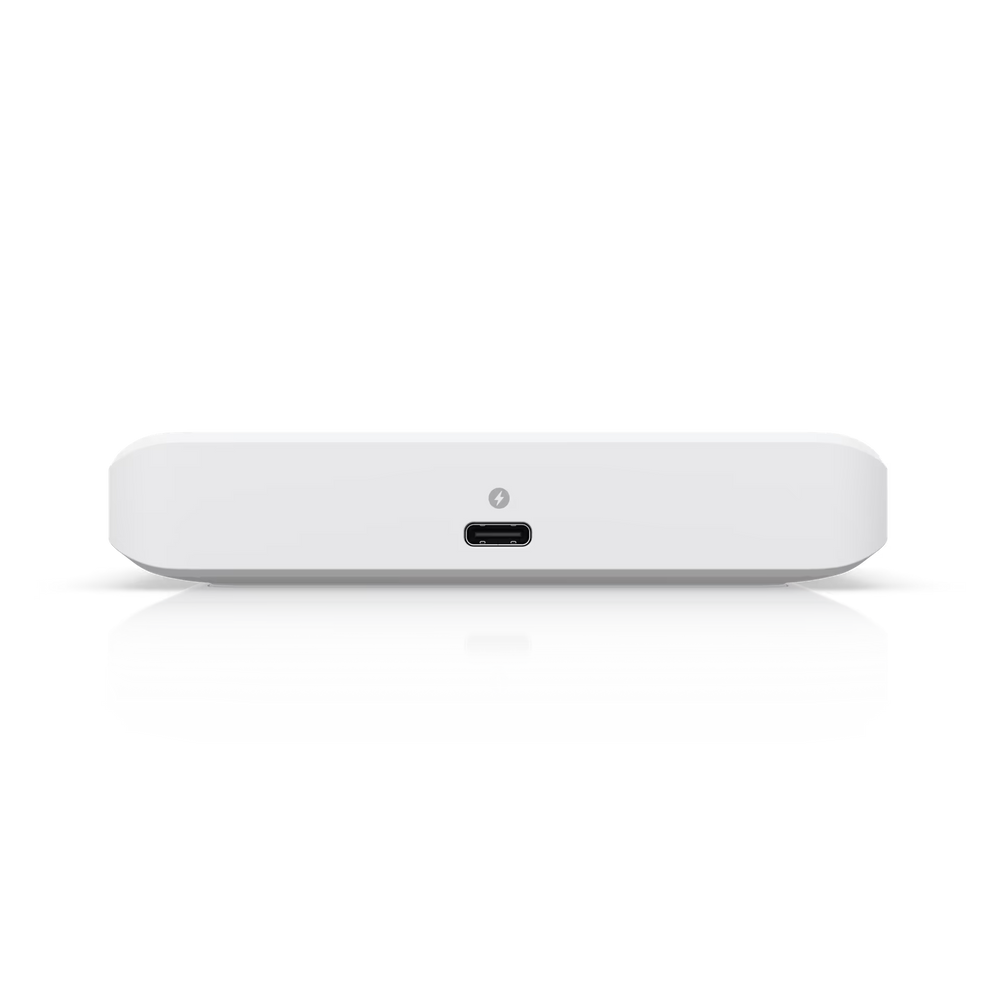

Power Method: USB Type C (5V), PoE/PoE+ (44—57V DC)
Power Supply: 5V, 1A power adapter (included with single-unit packages)
Max Power Consumption: 2.5W
ESD/EMP Protection: Air: ±16kV, contact: ±12kV
Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
Installation / Use Cases
- Use as a compact 5-port Gigabit Ethernet switch for home or office networks.
- Suitable for adding four Gigabit Ethernet ports while using one port for PoE input.
- Use in UniFi network environments requiring Ethernet in-band management.
- Suitable for compact network setups that need 5 Gbps non-blocking throughput.
- Use PoE/PoE+ or USB Type-C power depending on the installation setup.
- Suitable for small network expansions involving devices such as cameras, phones, computers, or other Ethernet devices.
Package Contents
- Ubiquiti UniFi Switch Flex Mini USW-Flex-Mini 5-Port PoE Switch
Frequently Asked Questions
What is the Ubiquiti UniFi Switch Flex Mini used for?
The USW-Flex-Mini is used to expand a network with five Gigabit Ethernet RJ45 ports in a compact Layer 2 switch.
How many Ethernet ports does the switch provide?
The switch provides five Gigabit Ethernet RJ45 ports.
Can the USW-Flex-Mini be powered by PoE?
Yes. It can be powered by PoE or PoE+ at 44-57V DC.
Can the switch be powered through USB-C?
Yes. It can also be powered through USB Type-C at 5V.
What is the non-blocking throughput?
The switch supports 5 Gbps non-blocking throughput.
How much power does the switch consume?
Maximum power consumption is 2.5W.
What are the size and weight?
The switch measures 4.2 x 2.8 x 0.8 inches, or 107 x 70 x 21 mm, and weighs 5.3 oz, or 150 g.
