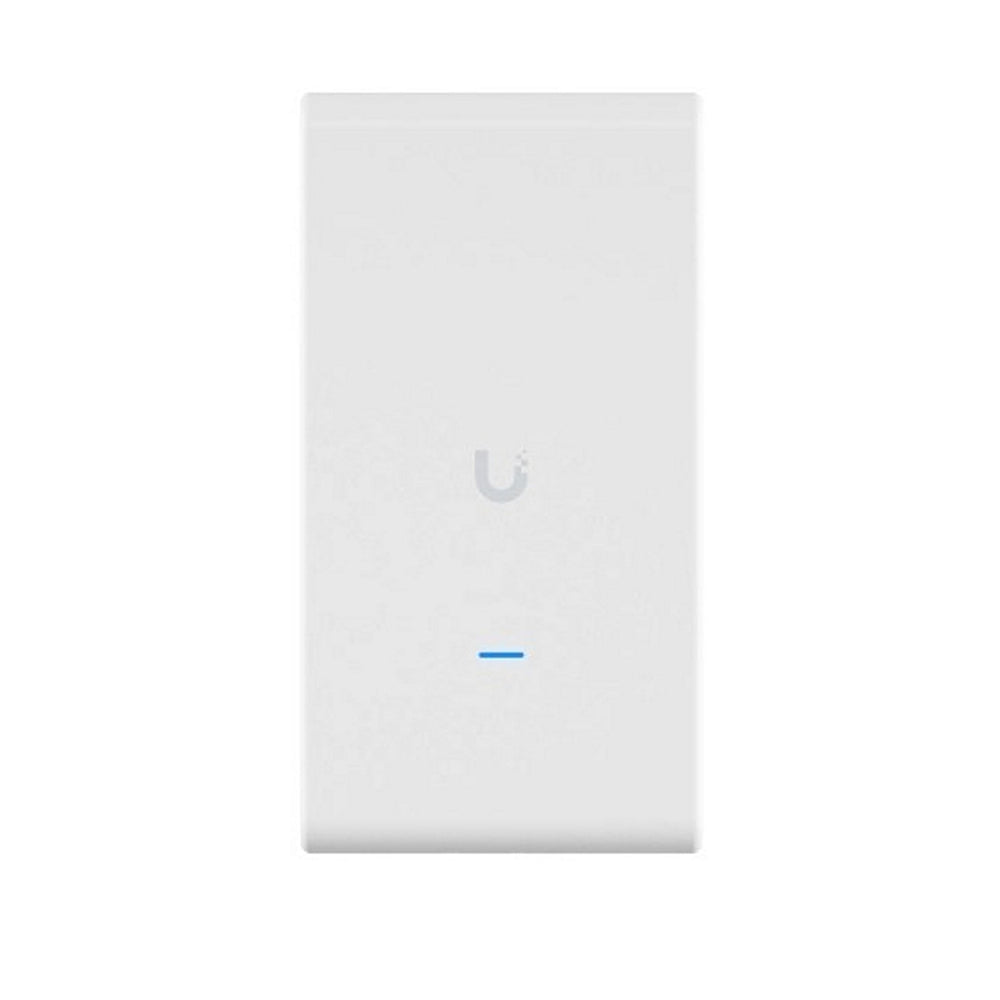

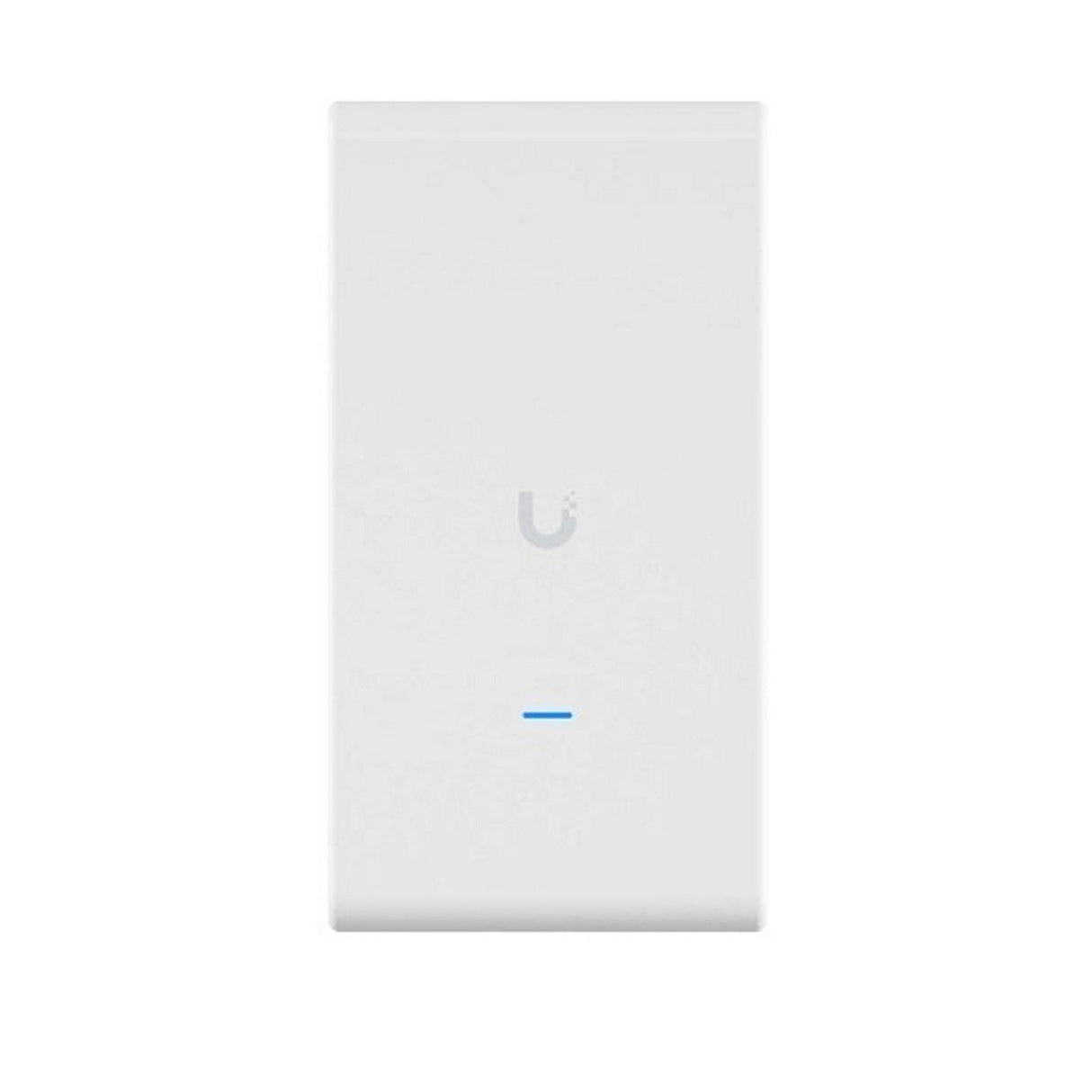

Ubiquiti U6 Mesh Pro WiFi 6 Access Point

The Ubiquiti U6 Mesh Pro is a powerful WiFi 6 access point designed to extend connectivity across large areas. With dual Gigabit Ethernet ports, PoE support, and weatherproofing, it is ideal for both indoor and outdoor use. This access point offers exceptional performance, with coverage up to 2,000 sq. ft., and is capable of handling over 350 connected devices at once. The U6 Mesh Pro is perfect for environments that demand high-speed internet and reliability.

Key Features

• WiFi 6 with 2.4 GHz and 5 GHz dual-band support
• Dual Gigabit Ethernet ports with PoE power
• Supports 350+ connected devices
• Weatherproof (IPX6) for outdoor use
• Up to 2,000 sq. ft. coverage
• Easy wall or pole mounting (mounting hardware included)

Technical Specifications

Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight: 819 g (1.8 lb)
Enclosure material: UV-stabilized polycarbonate
Mount material: Aluminum alloy, steel
Pole mount diameter: 1–2.5" on pipe outer diameter
Weatherproofing: IPX6
Hardware
Networking interface: (2) GbE RJ45 ports
Management interface: Ethernet
Power method: PoE (Powered via UniFi PoE switch, 48V, 0.5A PoE adapter included)
Supported voltage range: 42.5—57V DC
Max. power consumption: 9W
Max. TX power: 22 dBm (2.4 GHz), 27 dBm (5 GHz)
Max. data rate: 573.5 Mbps (2.4 GHz), 2.4 Gbps (5 GHz)
Antenna gain: 8 dBi (2.4 GHz & 5 GHz)
LEDs: White/blue
Button: Factory reset
Mounting: Wall, pole (Included)
Ambient operating temperature: -30 to 60°C (-22 to 140°F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software

• WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6)
• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• Concurrent clients: 350+
• Advanced QoS, VLAN, and Guest traffic isolation support

Package Contents

• Ubiquiti U6 Mesh Pro Access Point
• Mounting Hardware
• 48V PoE Adapter
• Quick Start Guide
