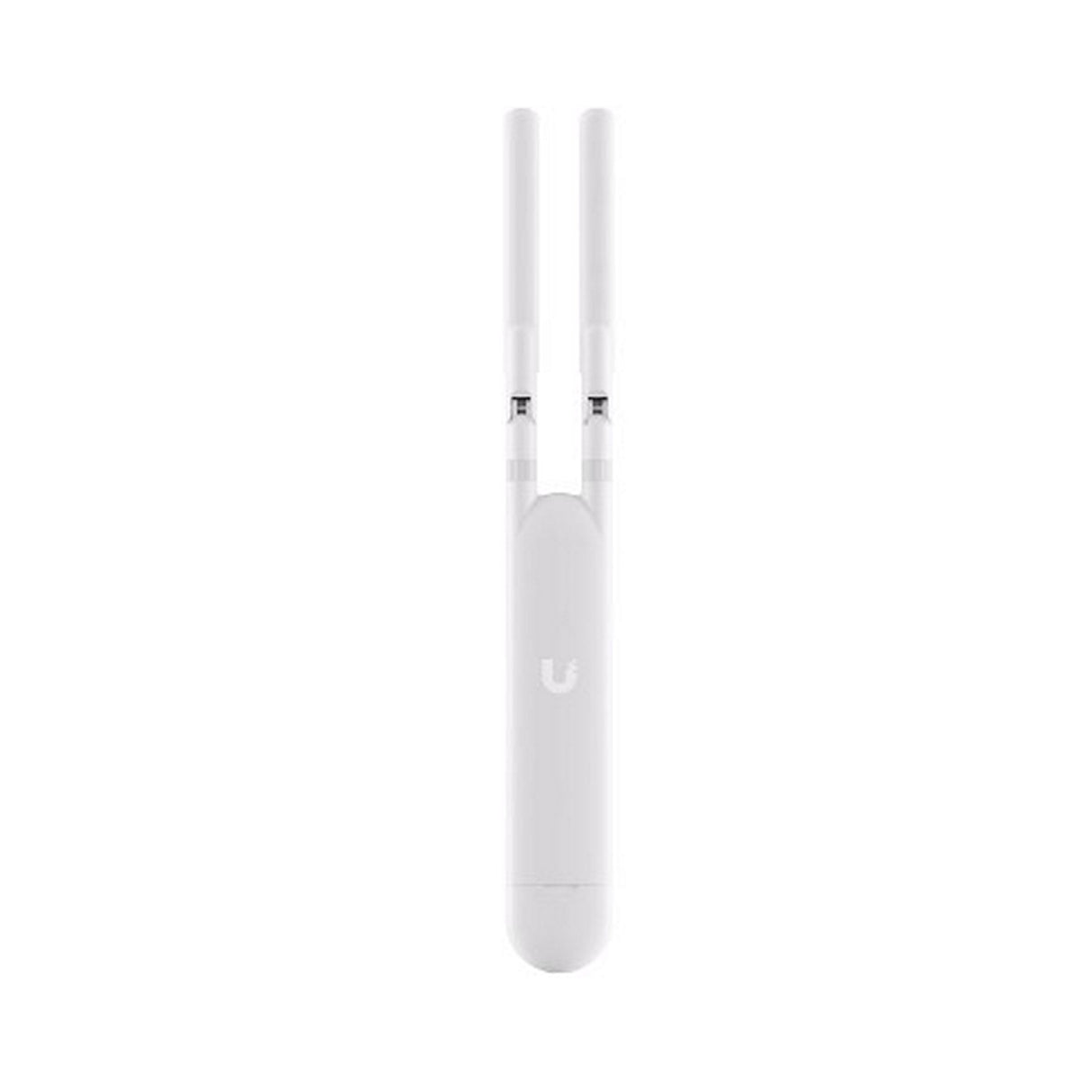

Ubiquiti UniFi UAP-AC-Mesh Access Point Outdoor/Indoor White - Single
Ubiquiti UniFi UAP-AC-Mesh Access Point Outdoor/Indoor White
Free Shipping
Ubiquiti UniFi UAP-AC-Mesh Access Point - Dual-Band Outdoor/Indoor Wi-Fi
The Ubiquiti UniFi UAP-AC-Mesh is a versatile access point designed for both indoor and outdoor environments. It delivers reliable dual-band Wi-Fi coverage with a sleek, compact form factor. Ideal for high-density deployments, this access point supports up to 250+ concurrent users and provides up to 867 Mbps on the 5 GHz band, with a maximum range of 1,500 ftĀ². It is powered by PoE and features a durable design suitable for various environments, including wall or pole mounting.
Key Features:
- Dual-band Wi-Fi with up to 867 Mbps data rate
- Supports 250+ concurrent clients
- Weatherproof and designed for both indoor and outdoor use
- Includes PoE for flexible installation options
- Supports optional external antenna for enhanced coverage
Technical Specifications:
Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
Weight: 152 g (5.4 oz)
Networking interface: (1) GbE RJ45 port
Management interface: Ethernet, Bluetooth
Power method: Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power supply: Gigabit PoE adapter 24V, 0.5A (sold separately)
Supported voltage range: 44ā57V DC
Max. power consumption: 8.5W
Max. TX power: 2.4 GHz: 20 dBm, 5 GHz: 20 dBm
MIMO: 2.4 GHz: 2 x 2 (DL MU-MIMO), 5 GHz: 2 x 2 (DL MU-MIMO)
Max. data rate: 2.4 GHz: 300 Mbps (BW40), 5 GHz: 867 Mbps (BW80)
Antenna gain: 2.4 GHz: 3 dBi, 5 GHz: 4 dBi
Button: Factory reset
Mounting: Wall, pole, fast-mount (Included)
Ambient operating temperature: -30 to 70Ā° C (-22 to 158Ā° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC, UKCA
Wi-Fi standards: 802.11 a/b/g/n/ac
Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: Up to 4 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Power save: Supported
WMM: Voice, video, best effort, and background
Concurrent clients: 250+
Supported Data Rates (Mbps): 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40); 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
