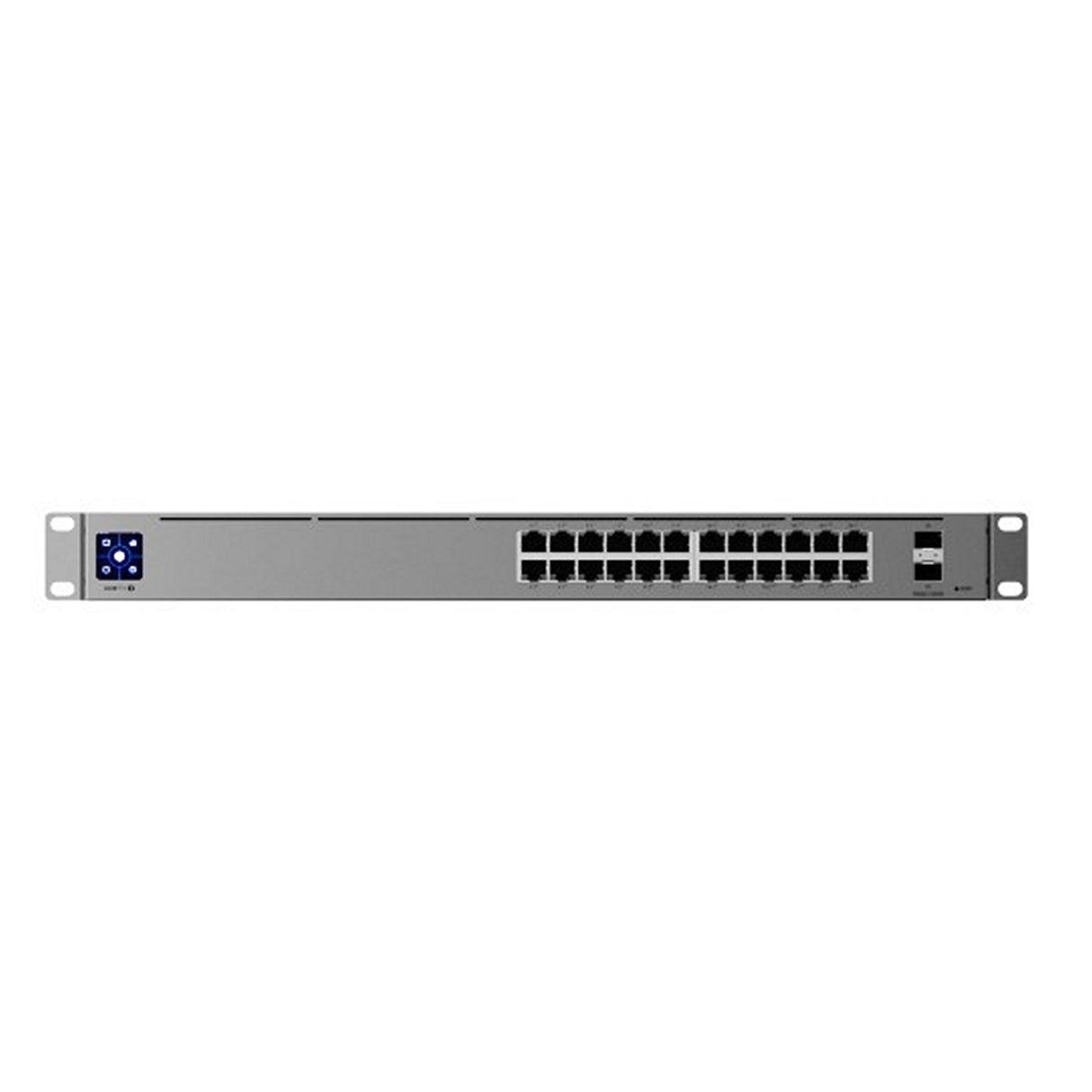

Ubiquiti USW-Pro-24-POE 24-Port Layer 3 PoE Switch

The Ubiquiti UniFi Switch Pro 24 PoE (USW-Pro-24-POE) is an advanced Layer 3 switch that features 24 Gigabit Ethernet ports, 2 x 1/10G SFP+ ports, and offers exceptional PoE+ and PoE++ capabilities. Ideal for powering devices such as IP cameras and access points, this switch ensures high-performance networking with 400W PoE power available. With a total throughput of 44 Gbps and a forwarding rate of 65.472 Mpps, it is perfect for businesses requiring scalability and efficient network management.

Key Features:

• 24 GbE PoE+ ports and 8 PoE++ ports
• 2 x 10G SFP+ uplinks
• 400W total PoE power output
• Layer 3 switching with advanced routing capabilities
• 1.3" touchscreen LCM display for easy management
• Supports high PoE wattage: 64W per PoE++ port

Technical Specifications:

Dimensions: 17.4" x 11.2" x 1.7" (442 x 285 x 44 mm)
Weight: 9.5 lb (without mounting brackets), 9.7 lb (with mounting brackets)
Enclosure material: SGCC Steel

Hardware
Management interface: Ethernet In-Band
Networking interface: 24 x GbE RJ45 ports, 2 x 10G SFP+ ports
PoE interface: 16 x PoE/PoE+ (Pins 1, 2+; 3, 6-) / 8 x 60W PoE++
Total non-blocking throughput: 44 Gbps
Switching capacity: 88 Gbps
Forwarding rate: 65.472 Mpps
Power method: Universal input, 100—240V AC, 50/60 Hz
Power supply: AC/DC, internal, 450W
Max. power consumption: 50W (Excluding PoE output)
Total available PoE: 400W
Max. PoE wattage per port: PoE+: 32W, PoE++: 64W
PoE voltage range: PoE: 44—57V, PoE+: 50—57V
LCM display: 1.3" touchscreen
Button: Factory reset
Ambient operating temperature: -5 to 40° C (23 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

Switching Features:

• Layer 2 features: IGMP snooping, STP/RSTP, Port isolation, and more
• Layer 3 features: DHCP relay, Static routing, Inter-VLAN routing
• Advanced security: MAC address blocking, 802.1X control, and more

Application Requirements:

UniFi Network: Version 5.10.5 and later
