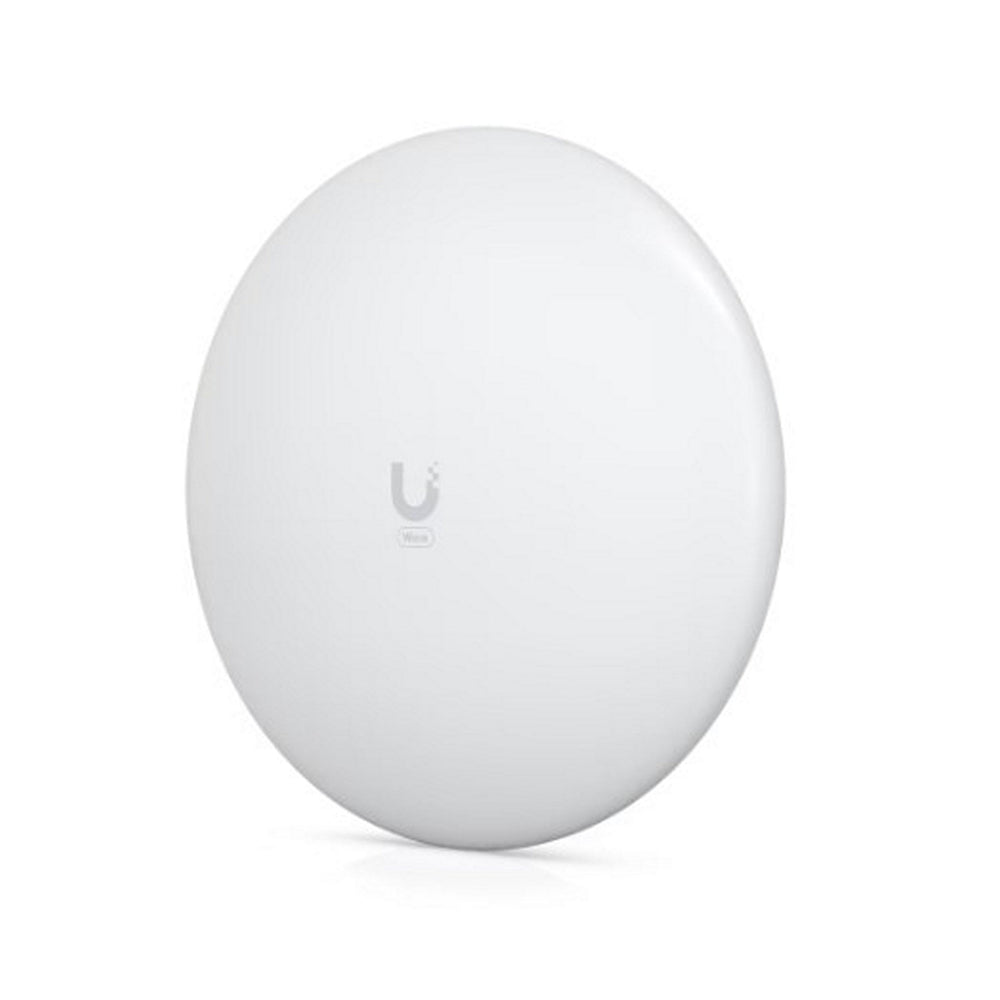

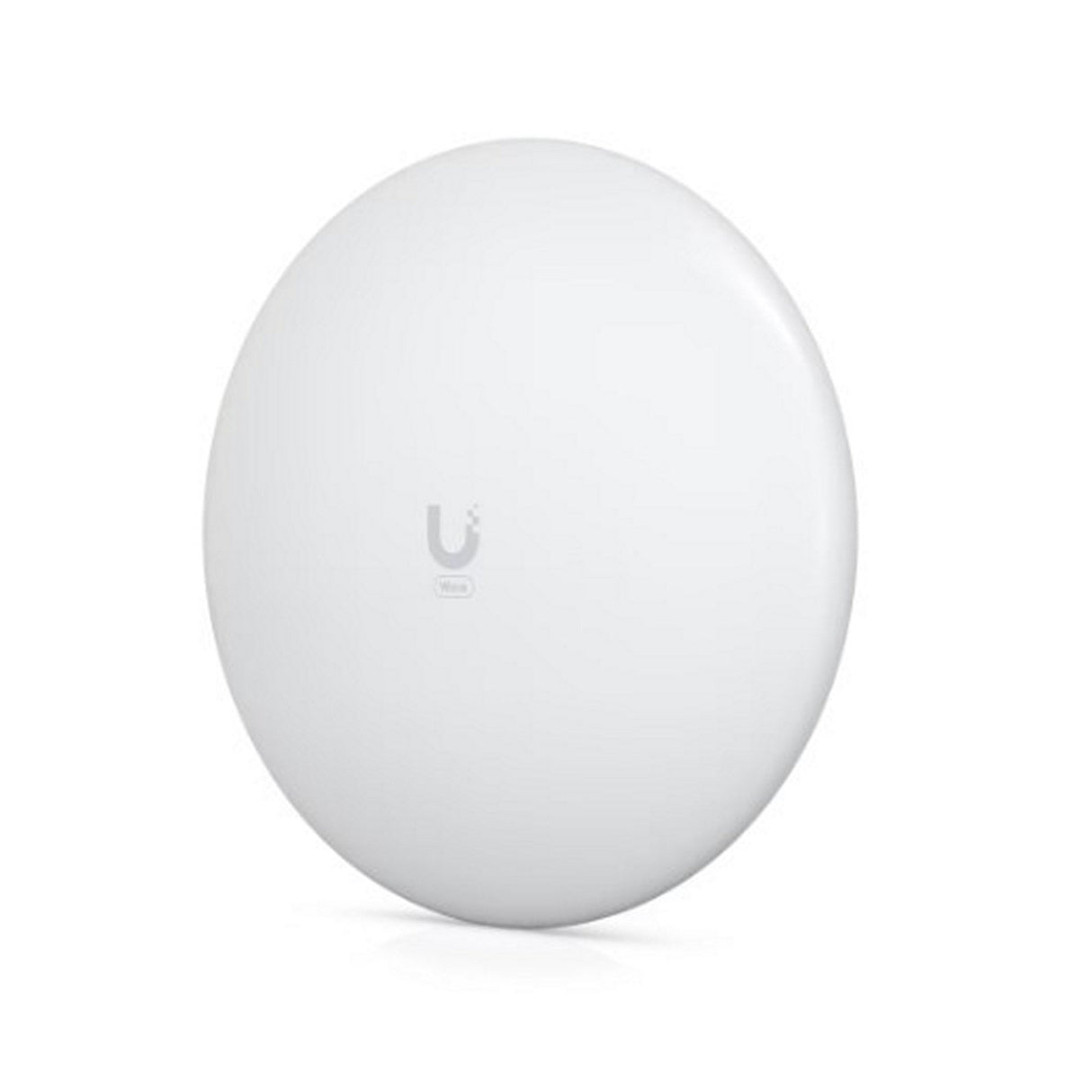

Ubiquiti Wave Long-Range 60 GHz PtMP Station

Ubiquiti | SKU: UBI-WAVELRUS
$50087

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New


Ubiquiti Wave Long-Range 60 GHz PtMP Station - High Performance

The Ubiquiti Wave Long-Range (Wave-LR) is a powerful 60 GHz PtMP station designed to deliver high-speed, long-range connectivity. It features a maximum range of over 8 km and total throughput of 2 Gbps, making it perfect for connecting multiple sites with reliable, high-capacity backhaul. With integrated GPS and support for passive PoE, the Wave-LR offers flexibility in deployment while maintaining optimal performance. Its advanced Wave AI technology enhances signal management, and the durable design ensures reliable outdoor use.

Key Features

  • Max range of 8+ km for long-distance connectivity
  • Total throughput of 2 Gbps for high-speed performance
  • Support for 5 GHz backup with up to 800 Mbps throughput
  • Wave AI technology for better signal management
  • Weatherproof and robust design for outdoor use

Technical Specifications

Dimensions: Ƙ424.4 x 166.2 mm (Ƙ16.7 x 6.5")
Weight: Without mount: 5.7 lb (2.6 kg)
With mount: 8.4 lb (3.8 kg)
Enclosure material: UV stabilized plastic
Mount material: Stainless steel
Pole mount diameter: 1 to 3" (25 to 76.2 mm) pipe outer diameter
Wind loading: 64.3 lbf at 125 mph (286 N at 200 km/h)
Weatherproofing: IPX6
Processor: Dual-core ARMĀ® CortexĀ®-A53 at 1 GHz
Memory: DDR3L 512 MB
Networking interface: 1 GbE RJ45 port
Max. power consumption: 20W
Power method: Passive PoE 4-pairs (44ā€“54V DC)
Supported voltage range: 44ā€“54V DC, 22ā€“27V DC
GPS: Yes
Button: Factory reset
LEDs: Power, Ethernet, GPS, link
Operating temperature: -40 to 60Ā°C (-40 to 140Ā°F)
Operating humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE
Total throughput: 2 Gbps
Max. range: 8+ km
WPA2-PSK encryption: AES
Operating frequency: 57ā€“71 GHz (depends on regulatory region)
Channel bandwidth: 2160, 1080, 540 MHz
Modulation: 16QAM, QPSK
Antenna gain: 46 dBi
Polarization: Vertically linear
Beamwidth: Azimuth: 3 dB 1Ā°, Elevation: 3 dB 1Ā°
WiFi standard: 802.11ax (WiFi 6)
Backup RF Wi-Fi: 5 GHz, 22 dBi gain, dual-linear polarization

In The Box

  • Wave Long-Range Access Point
  • Mounting Kit
  • PoE Adapter (48V DC, 0.65A)
  • Quick Start Guide
