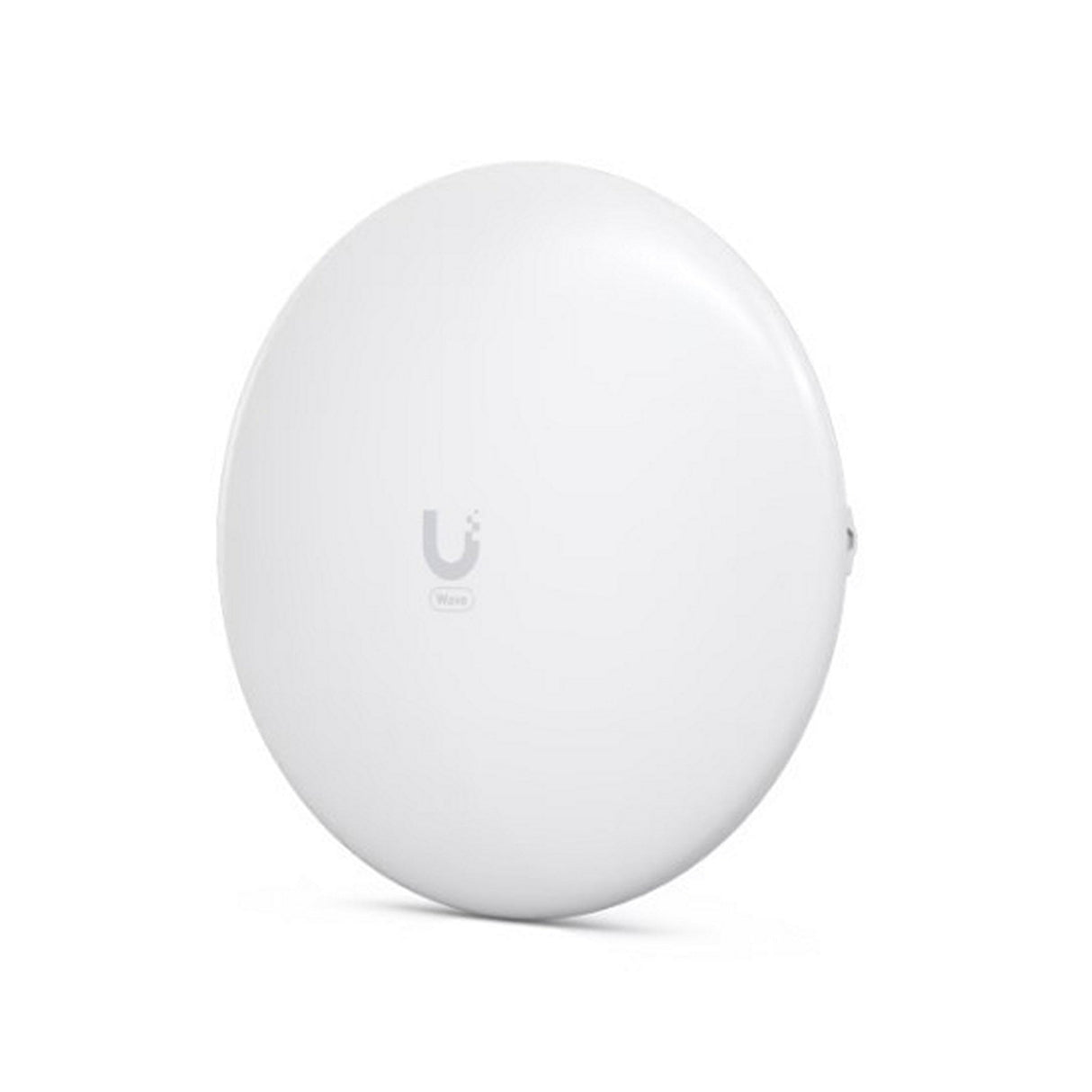

Ubiquiti Wave Nano 60 GHz PtMP Station

Ubiquiti Wave Nano - 60 GHz PtMP Station

The Ubiquiti Wave Nano is a high-performance wireless device built to provide long-range connectivity in 60 GHz frequency bands. Designed to operate as a PtMP (Point-to-Multipoint) station, it supports impressive data throughput and offers a reliable, weatherproof outdoor wireless solution for large networks. With an antenna gain of 41 dBi and a range of over 5 km, this device is ideal for high-speed, high-capacity deployments in outdoor environments. Its robust design ensures exceptional performance even in harsh weather conditions, providing seamless communication across long distances.

Key Features:

• Maximum throughput: 2 Gbps
• 5 GHz backup radio for redundancy
• Integrated GPS for easy network synchronization
• Weatherproof IPX6 rating for outdoor environments
• Advanced 60 GHz wireless technology for optimal performance

Technical Specifications:

Dimensions: Ø10.1 x 4.5" (Ø256.5 x 113.5 mm)
Weight: 2.1 lb (932 g) without mount, 2.6 lb (1.2 kg) with mount
Enclosure material: Aluminum alloy, UV stabilized plastic
Mount material: Aluminum alloy, UV stabilized plastic
Pole mount diameter: 1 to 2.5" (25 to 63.5 mm) on pipe outer diameter
Wind loading: 28.6 lbf at 125 mph (127 N at 200 km/h)
Weatherproofing: IPX6
Processor: Dual-core ARM® Cortex®-A53 at 1 GHz
Memory: DDR3L 512 MB
Networking interface: (1) GbE RJ45 port
Max. power consumption: 20W
Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply: 48V DC, 0.65A gigabit PoE adapter (Included)
GPS: Yes
Button: Factory reset
LEDs: Power, Ethernet, GPS, link
Ambient operating temperature: -40 to 60° C (-40 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE
Operating mode: PtMP station, PtP (FW version 3.2.0 and later)
Ubiquiti specific features: Wave AI, discovery protocol
Services: UISP, ping watchdog, NTP client, SNMP
Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test (FW version 3.3.0 and later)
Network: Bridge/Router* mode (Router available in PtMP station mode only)
System: Total throughput: 2 Gbps
Max. range: 5+ km
Encryption: WPA2-PSK (AES)
RF: Operating frequency: 57–71 GHz (depends on regulatory region)
Channel bandwidth: 2160, 1080, 540 MHz (FW version 3.3.0 and later)
Modulation: 16QAM, QPSK
Antenna gain: 41 dBi
Polarization: Vertically linear
Beamwidth: Azimuth: 3 dB 1.4°, Elevation: 3 dB 1.4°
Backup RF: WiFi standard: 802.11ax (WiFi 6), Operating frequency: 5150-5875 MHz (depends on regulatory region)
Channel bandwidth: 20, 40, 80 MHz
Modulation: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Antenna gain: 19 dBi
Polarization: Dual-linear
Beamwidth: Azimuth: 3 dB 14°, Elevation: 3 dB 14°
Cross-pol isolation: 20 dB

Package Contents:

• Wave Nano unit
• Mounting hardware
• PoE injector
