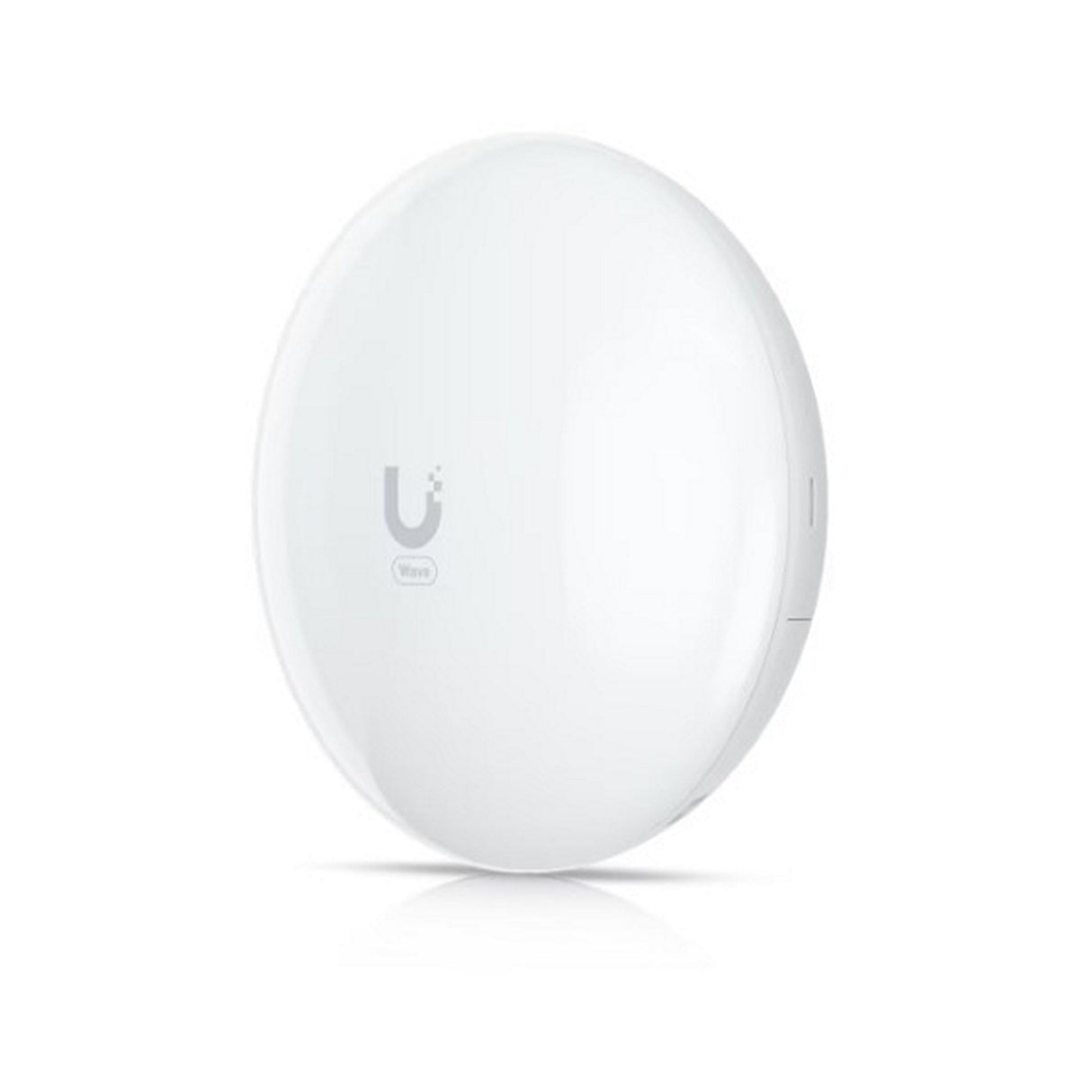

Ubiquiti Wave Pico 60 GHz PtMP Station - Compact Connectivity Solution

The Ubiquiti Wave Pico is a compact 60 GHz PtMP station designed for efficient and high-performance connectivity. With Wave technology, it delivers impressive speeds and reliable service, making it an ideal choice for high-demand applications where strong bandwidth is required. This solution offers a max throughput of 2 Gbps and an effective backup 5 GHz radio, ensuring minimal disruptions. Its compact size and IPX6 weatherproofing make it suitable for outdoor use in diverse conditions, offering seamless performance for Point-to-Multipoint (PtMP) and Point-to-Point (PtP) networking.

Key Features

• Max Throughput: 2 Gbps
• Max Range: Up to 1.3 km (Wave AP)
• Dual-core ARM Cortex processor for high performance
• 1 GbE RJ45 port for fast wired connectivity
• Easy setup and management with Bluetooth integration
• IPX6 weatherproofing for reliable outdoor operation

Technical Specifications

Dimensions: Ø152.1 x 55.8 mm (Ø6 x 2.2")
Weight: Without mount: 347 g (12.2 oz), With mount: 409 g (14.4 oz)
Enclosure material: UV stabilized polycarbonate
Mount material: UV stabilized polycarbonate
Pole mount diameter: 20 to 53.1 mm (0.8 to 2.1")
Wind loading: 31.3 N at 200 km/h (7 lbf at 125 mph)
Weatherproofing: IPX6
Processor: Dual-core ARM Cortex-A53 at 1 GHz
Memory: DDR3L 512 MB
Networking interface: (1) GbE RJ45 port
Max. power consumption: 10W
Power method: Passive PoE (44–54V DC)
Power supply: 48V DC, 0.5A PoE adapter (Included)
GPS: No
Button: Factory reset
LEDs: Power, Ethernet, Link
Ambient operating temperature: -40 to 60° C (-40 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE

Software

• Operating Mode: PtMP station, PtP
• Ubiquiti specific features: Wave AI, discovery protocol
• Services: UISP, ping watchdog, NTP client, SNMP
• Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test*
• Application Requirements: UISP web (Version 2.4.61 and later), UISP mobile iOS™ (Version 2.32.0 and later), UISP mobile Android™ (Version 2.31.9 and later)

Network

• Bridge/Router Mode: Router available in PtMP station mode only

System

• Total throughput: 2 Gbps
• Max. range: Up to 1.3 km (Wave AP)
• Encryption: WPA2-PSK (AES)

RF Specifications

Operating frequency: 57–71 GHz (depends on regulatory region)
Channel bandwidth: 2160, 1080, 540 MHz (FW version 3.3.0 and later)
Operating channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz (depends on regulatory region)
Modulation: 16QAM, QPSK
Antenna gain: 27.7 dBi
Polarization: Vertically linear
Beamwidth: Azimuth: 3 dB 6°, Elevation: 3 dB 6°

Back-Up RF

WiFi Standard: 802.11ax (WiFi 6)
Operating frequency: US/CA: U-NII-1 5150 - 5250 MHz, U-NII-2A 5250 - 5350 MHz, U-NII-2C 5470 - 5725 MHz, U-NII-3 5725 - 5850 MHz
Worldwide: 5180 - 5875 MHz (depends on regulatory region)
Channel bandwidth: 20, 40, 80 MHz
Modulation: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Antenna gain: 9 dBi
Polarization: Dual-linear
Beamwidth: Azimuth: 3 dB 50°, Elevation: 3 dB 50°
Cross-pol isolation: 15 dB

LED Indicators

• Power: Flashing white: bootup, White: not connected, Blue: connected, Flashing blue: locate in progress, Blue/white: firmware upgrade
• Ethernet: Flashing blue: Ethernet traffic detected
• Links: White: 5 GHz link, Blue: 60 GHz link

Package Contents

• Wave Pico Unit
• Mounting hardware
• PoE adapter
