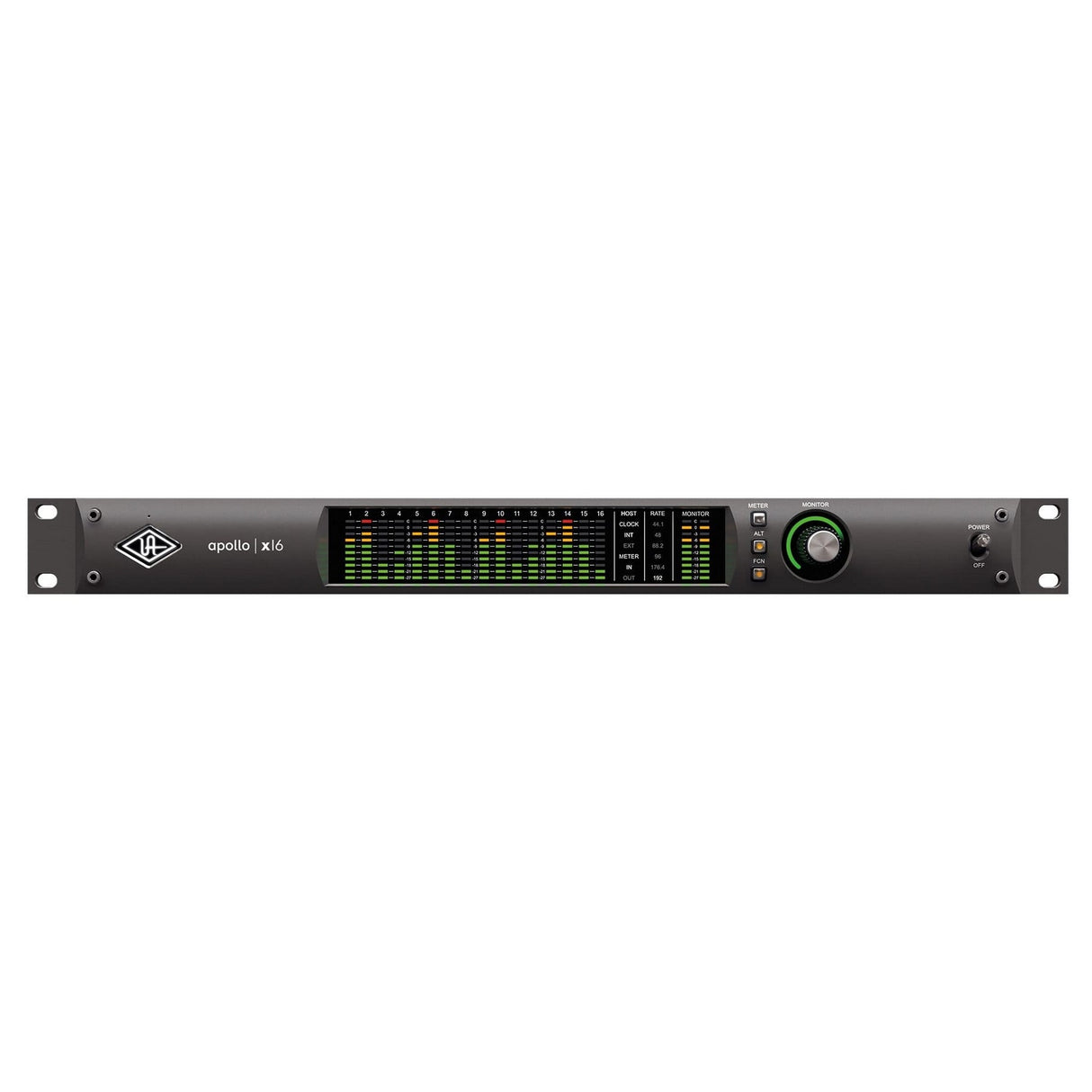

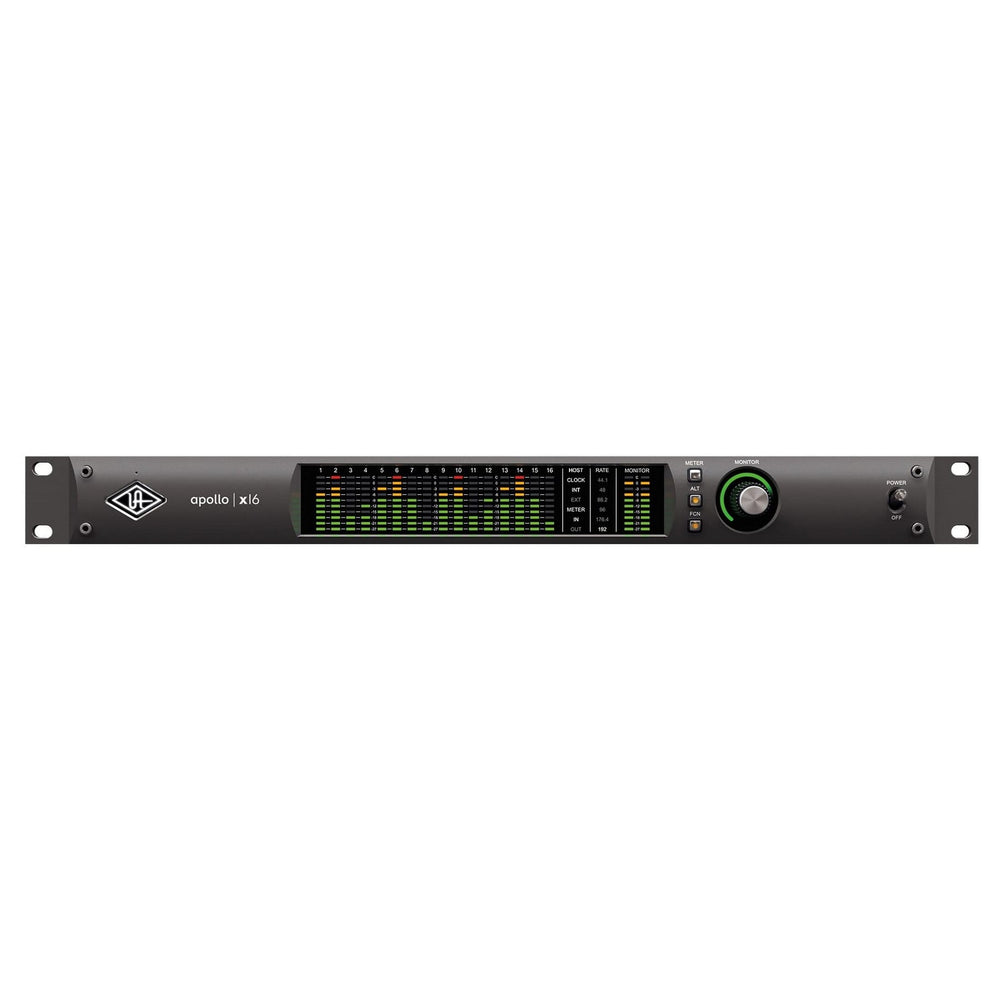

Universal Audio Apollo x16 HE Audio Interface with Heritage Plug-Ins

Universal Audio Apollo x16 HE Audio Interface with Heritage Plug-Ins

The Universal Audio Apollo x16 HE Audio Interface with Heritage Plug-Ins is a professional-grade Thunderbolt 3 audio interface crafted to deliver the industry's best audio conversion, superior sonic fidelity, and exceptional versatility for music producers, project studios, and post-production professionals. This remarkable interface is designed to provide you with pristine audio quality, boasting elite-class A/D and D/A conversion used in countless hit songs and albums. With the Apollo x16, you experience the widest dynamic range and the lowest noise floor of any integrated audio interface, providing an unparalleled foundation for your recordings.

Equipped with HEXA Core processing, the Apollo x16 allows you to run more UAD Powered Plug-Ins with near-zero latency, ensuring exceptional performance during tracking and mixing. Its 16 x 16 analog I/O via DB-25 connections and switchable +24 dBu headroom enhance compatibility with professional mixing consoles and outboard gear. Furthermore, it acts as your central monitoring hub for immersive audio mixes, supporting up to 9.1.6 formats such as Dolby Atmos and Sony 360 Reality Audio. The included Realtime Analog Classics Plus UAD Plug-In Bundle enables you to add vintage analog warmth and modern audio effects to your productions.

With the ability to link up to four Apollos for up to 156 channels of premium I/O and easy control from your desktop, the Apollo x16 streamlines your recording workflow, especially with the LUNA Recording System (Mac only). Built with UA's renowned analog design, superior components, and premium build quality, the Apollo x16 ensures reliable performance for years to come, making it a cornerstone for any professional audio setup.

Key Features

• 18 x 20 Thunderbolt 3 audio interface with elite 24-bit/192 kHz conversion
• HEXA Core Realtime UAD Processing for ultra-low latency tracking with UAD plug-ins
• Control 16-channel 9.1.6 immersive audio mixes for formats like Dolby Atmos and Sony 360 Reality Audio
• Includes Realtime Analog Classics Plus UAD Plug-In Bundle
• Link up to 4 Thunderbolt-equipped Apollos and 6 UAD devices
• Selectable +24 dBu operation for seamless integration with professional gear
• Front panel monitoring functions include Alt Speakers, Talkback mic, and Dim or Mono options
• UA analog design with top-notch components and exceptional build quality
• Free technical support from experienced audio engineers via phone and online

Specifications

• Analog Line Inputs: 16
• Analog Line Outputs (DC coupled): 16
• Analog Monitor Outputs (DC coupled): Two (one stereo pair)
• AES/EBU: One stereo input, one stereo output
• Thunderbolt 3 Ports: Two
• Word Clock: One input, one output
• Simultaneous A/D Conversion: 16 channels
• Simultaneous D/A Conversion: 18 channels
• Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
• Bit Depth Per Sample: 24
• Analog Round-Trip Latency: 1.1 milliseconds @ 96 kHz
• Dimensions: Width - 19 in (48.26 cm), Height - 1.75 in (4.45 cm), Depth - 12.125 in (30.80 cm) (Chassis only)
• Weight: 9 lbs (4.08 kg)

Package Contents

• Apollo x16 Audio Interface Unit
• External Power Supply
• AC Power Cable (IEC), Region Specific
• Set of (4) Rack-Mount Screws
• Getting Started URL Card
• UA 1176 Classic Limiter Collection
• Teletronix LA-2A Classic Leveler Collection
• Pultec Passive EQ Collection
• Fairchild Tube Limiter Collection
• UA 610 Tube Preamp & EQ Collection
• Teletronix LA-3A Audio Leveler
• Helios Type 69 Preamp & EQ Collection
• V76 Preamplifier
• UA Oxide Tape Recorder
• UA Pure Plate Reverb
