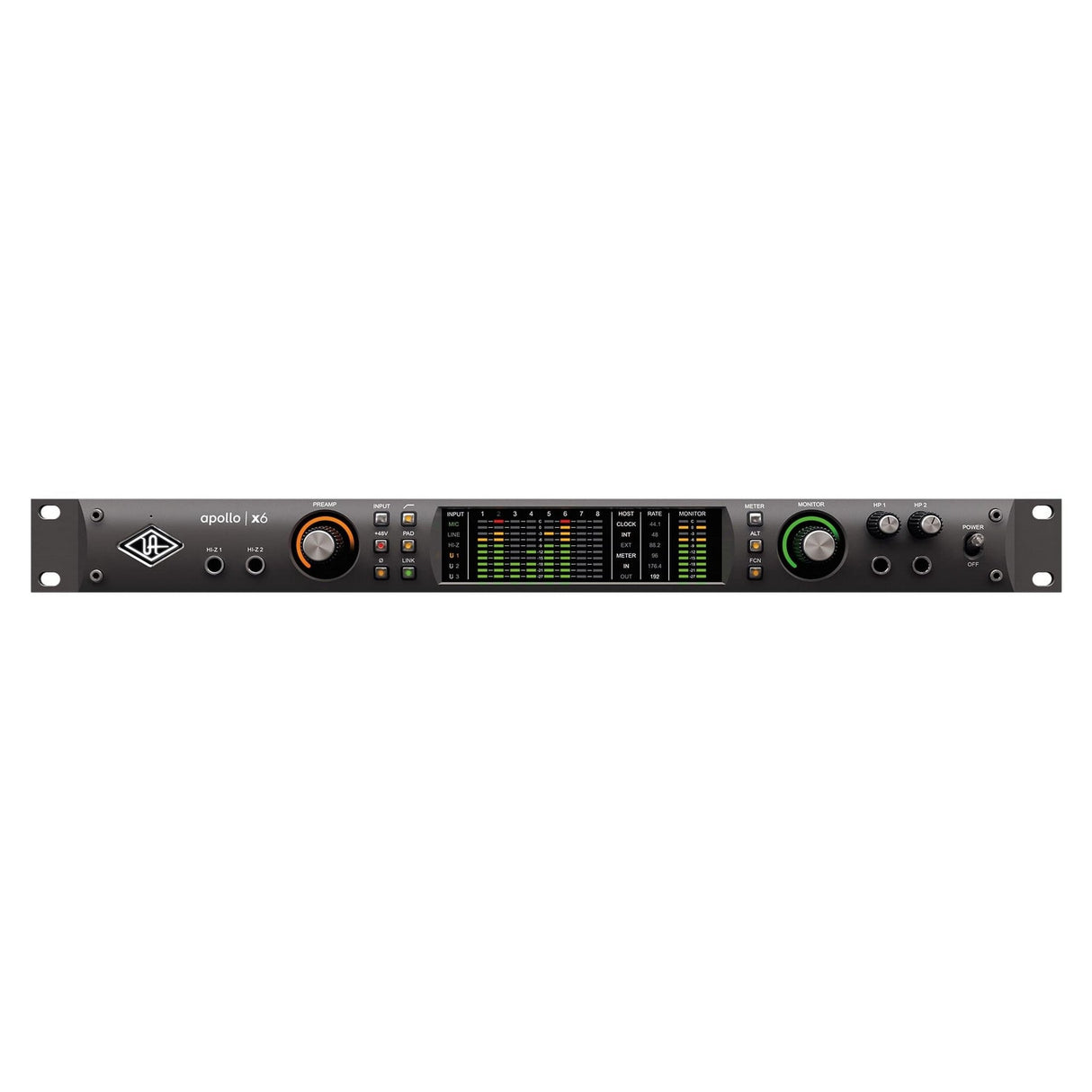

Universal Audio Apollo x6 HE Audio Interface with Heritage Plug-Ins

Universal Audio Apollo x6 HE Audio Interface with Heritage Plug-Ins

Experience studio-grade recording and production like never before with the Universal Audio Apollo x6 HE Audio Interface with Heritage Plug-Ins. This advanced Thunderbolt 3 audio interface brings elite-class A/D and D/A conversion to your home or project studio, capturing every sonic detail with precision and clarity. With the power of six UAD HEXA Cores and Unison preamps, you can track vocals and instruments through iconic mic preamps from renowned brands like Neve, API, Manley, Avalon, and more, all in real-time with near-zero latency.

The Apollo x6 HE doesn’t just stop at exceptional audio capture—it breaks new ground in mixing and mastering. With seamless integration between Apollo x6 HE and the LUNA Recording System, you get access to console emulation, tape emulation, and built-in extensions for a fluid and intuitive workflow. Furthermore, the UAD Powered Plug-in library provides a treasure trove of award-winning effects processors and instruments, expanding the palette of your creative endeavors.

Designed to scale as your studio grows, Apollo x6 HE allows you to connect up to four Apollos, offering a massive 156 channels of premium audio input and output. It’s the ideal choice for musicians, producers, and audio engineers who demand superior sound quality and a flexible yet powerful UAD processing engine. Enhanced by industry-leading technical support, the Apollo x6 HE Audio Interface with Heritage Plug-Ins stands out as the powerhouse you need to elevate your recording and production capabilities.

Key Features

• 16 x 22 Thunderbolt 3 audio interface with top-tier 24-bit/192 KHz conversion
• Realtime UAD HEXA Core Processing for tracking with UAD plug-ins at ultra-low latency
• 2 Unison-enabled mic/line preamps for authentic preamp emulations from top brands
• Surround monitoring up to 5.1 format controlled easily
• Access to the “Realtime Analog Classics Plus” UAD plug-in bundle for various classic effects
• Enhanced mixing capabilities in major DAWs with UAD HEXA Core processing
• Expandable setup with multiple Thunderbolt-equipped Apollos and UAD devices
• Selectable +24 dBu operation for seamless integration with professional equipment
• Front-panel monitoring with Alt Speakers, Talkback mic, and more
• Top-notch UA analog design, premium components, and exceptional build quality

Specifications

• Microphone Inputs: Two
• High Impedance (Hi-Z) Instrument Inputs: Two
• Analog Line Inputs: Six
• Analog Line Outputs (DC coupled): Six (eight including Monitor outputs)
• Analog Monitor Outputs (DC coupled): Two (one stereo pair)
• Headphone Outputs: Two stereo
• ADAT: Up to eight channels via dual I/O ports with S/MUX
• S/PDIF: One stereo input, one stereo output
• Thunderbolt 3 Ports: Two
• Word Clock: One input, one output
• Simultaneous A/D Conversion: Six channels
• Simultaneous D/A Conversion: 12 channels
• Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Bit Depth Per Sample: 24
• Analog Round-Trip Latency: 1.1 milliseconds @ 96 kHz sample rate
• Frequency Response (Microphone Inputs): 20 Hz – 20 kHz ±0.05 dB
• Dynamic Range (Microphone Inputs): 122 dB (A–weighted)
• Total Harmonic Distortion + Noise Ratio: -114 dB (0.00020%)
• Maximum Input Level (PAD on): 26 dBu
• Default Input Impedance: 5.4K Ohms (variable via Unison plug-ins)
• Gain Range: +10 dB to +65 dB
• Pad Attenuation: 20 dB (variable via Unison plug-ins)
• Phantom Power: +48V (switchable per mic input)
• Connector Type (Microphone Inputs): XLR Female, pin 2 positive
• Connector Type (Hi-Z Inputs): ¼” Female TS Unbalanced
• Connector Type (Line Inputs): ¼” Female TRS Balanced
• Connector Type (Line Outputs): ¼” Female TRS Balanced
• Connector Type (Monitor Outputs): ¼” Female TRS Balanced
• Connector Type (Stereo Headphone Outputs): ¼” Female TRS Stereo
• Connector Type (S/PDIF): Female Phono (RCA)
• Connector Type (ADAT): Optical TOSLINK JIS F05
• Connector Type (Word Clock): BNC
• Power Supply: External AC-to-DC Power Supply, Level VI compliant
• Dimensions (Width x Height x Depth): 19 in x 1.75 in x 12.125 in (48.26 cm x 4.45 cm x 30.80 cm)
• Weight (bare unit): 9 lbs (4.08 kg)

Package Contents

• Apollo x6 Audio Interface Unit
• External Power Supply
• AC Power Cable (IEC), Region Specific
• Set of (4) Rack-Mount Screws
• Getting Started URL Card
• UA 1176 Classic Limiter Collection
• Teletronix LA-2A Classic Leveler Collection
• Pultec Passive EQ Collection
• Fairchild Tube Limiter Collection
• UA 610 Tube Preamp & EQ Collection
• Teletronix LA-3A Audio Leveler
• Helios Type 69 Preamp & EQ Collection
• V76 Preamplifier
• UA Oxide Tape Recorder
• UA Pure Plate Reverb
