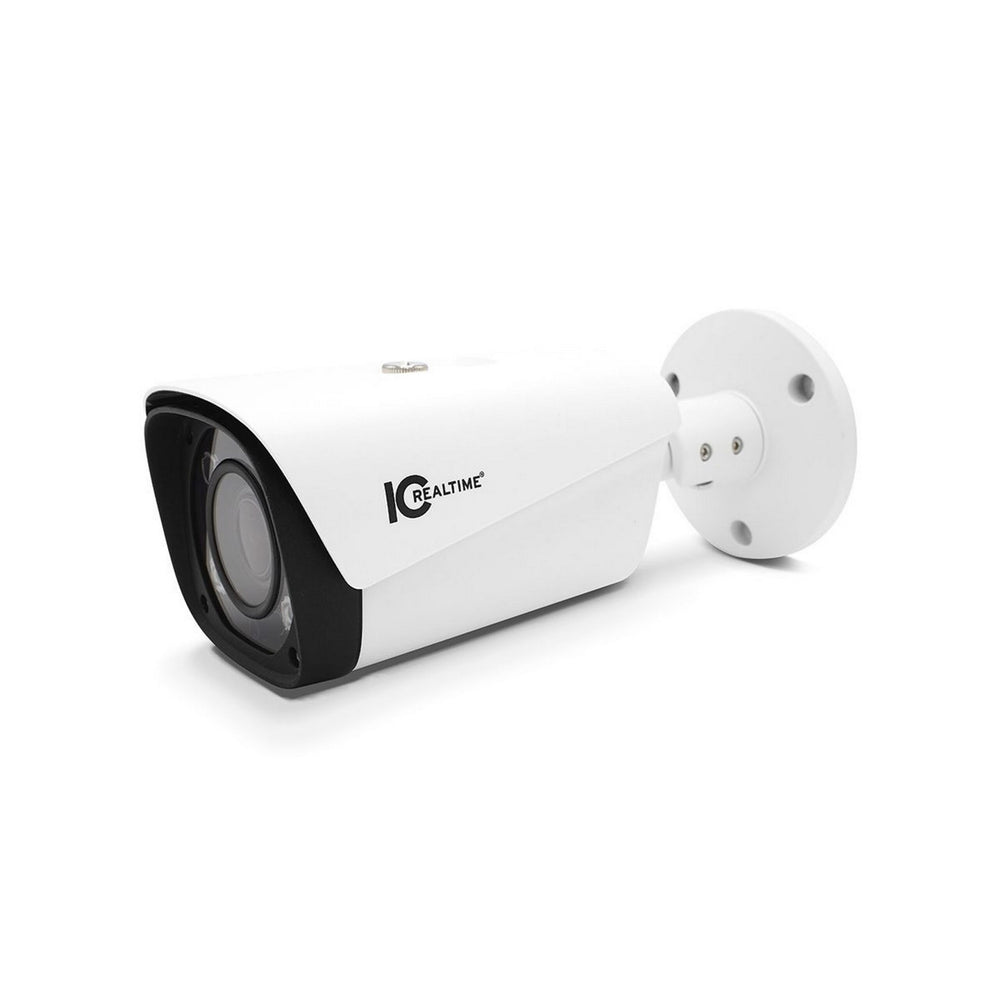

IC Realtime IPFX-B40V-IRW2 4 Megapixel IP Indoor/Outdoor Mid Size Bullet Camera

The IPFX-B40V-IRW2 is a 4MP bullet camera featuring our latest generation of 1/3’’ CMOS sensors. It also has Starlight Support with increased IR illumination up to ~197’. The camera also features a motorized, 2.7mm-13.5mm lens which offers up a 28-104 degree horizontal eld of view. The zoom level is fully controllable directly from the camera interface, enabling you to obtain the perfect shot. This makes the camera well suited for exterior applications on commercial as well as residential installations.

Key Features

• 1/3 CMOS | 4MP | 30fps@4MP
• 2.7mm To 13.5mm | Motorized Varifocal | AoV 104 To 28
• Max. IR Length 197ft | Smart IR | Starlight Support
• 1ch Audio In/ Out | 256GB MSD | IVS Support
• IP67 | 12VDC Or PoE | Max. 9.8W

Technical Specifications

Camera
Image Sensor
1/3”4Megapixel progressive CMOS
Effective Pixels
2688 (H) ×1520 (V)
RAM/Rom
128 MB/512MB
Scanning System
Progressive
Minimum Illumination
0.005 Lux@F1.5
IR Distance
60 m (197 ft)
IR On/Off Control
Auto/Manual
IR LEDs
4
Lens
Lens Type
Motorized vari-focal
Mount Type
14
Focal Length
2.7 mm-13.5 mm
Max. Aperture
F1.5
Angle of View
Horizontal: 104°-27°
Vertical
55° -15°
Diagonal
124° -31°
Close Focus Distance
0.8 m (2.6 ft)
DORI Detect
64.0 m (210.0ft)/ 222.0 m (728.3 ft)
DORI Observe
25.6 m (84.0 ft)/ 88.8m(291.3 ft)
DORI Recognize
12.8 m (42.0 ft)/ 44.4 m(145.7 ft)
DORI Identify
6.4 m(21.0 ft)/ 22.2 m(72.8 ft)
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG
Streaming Capability
3 streams
Resolution
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate
Main stream (2688 × 1520@1-25/30 fps)
Sub stream (704 × 576@1-25 fps/704 × 480@1-30 fps)
Third stream (1280 × 720@1-25/30 fps
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto(ICR)/Color/B/W
Backlight Compensation
Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest
Yes (4 areas)
Smart IR
Yes
Flip
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Privacy Masking
4 areas
WDR
120 dB
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;802.1x;SNMP
Interoperability
ONVIF / PSIA / CGI
Compatability
ONVIF(Profile S/Profile G); CGI; P2P; Milestone; Genetec
Streaming Method
Unicast / Multicast
Max. User Access
20 (Total bandwidth: 64 M)
Edge Storage
FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Web Viewer
IE: IE8, IE9, IE11
Interface
Audio I/O
1-channe Input(RCA port)
1-channel Output(RCA port)
Alarm I/O
1 channel in: 5mA 3V-5V DC
1 channel out: 300mA 12V DC
Memory Slot
Micro SD Card (support max. 256 GB)
Construction
Casing
Metal
Dimensions
244.1 mm × 79.0 mm × 75.9 mm
(9.6" × 3.1" × 3.0")
Gross Weight
1090 g (2.4lb)
Mounting Pan/Tilt/Rotation
Horizontal: 0°-360°; vertical: 0°-90°; rotation: 0°-360°
