Audio-Technica ATW-3212/C510DE2 True Diversity UHF Bodypack Handheld Wireless System, 470.125 - 529.975 MHz (Used)

Like New: Open box product with no signs of use.

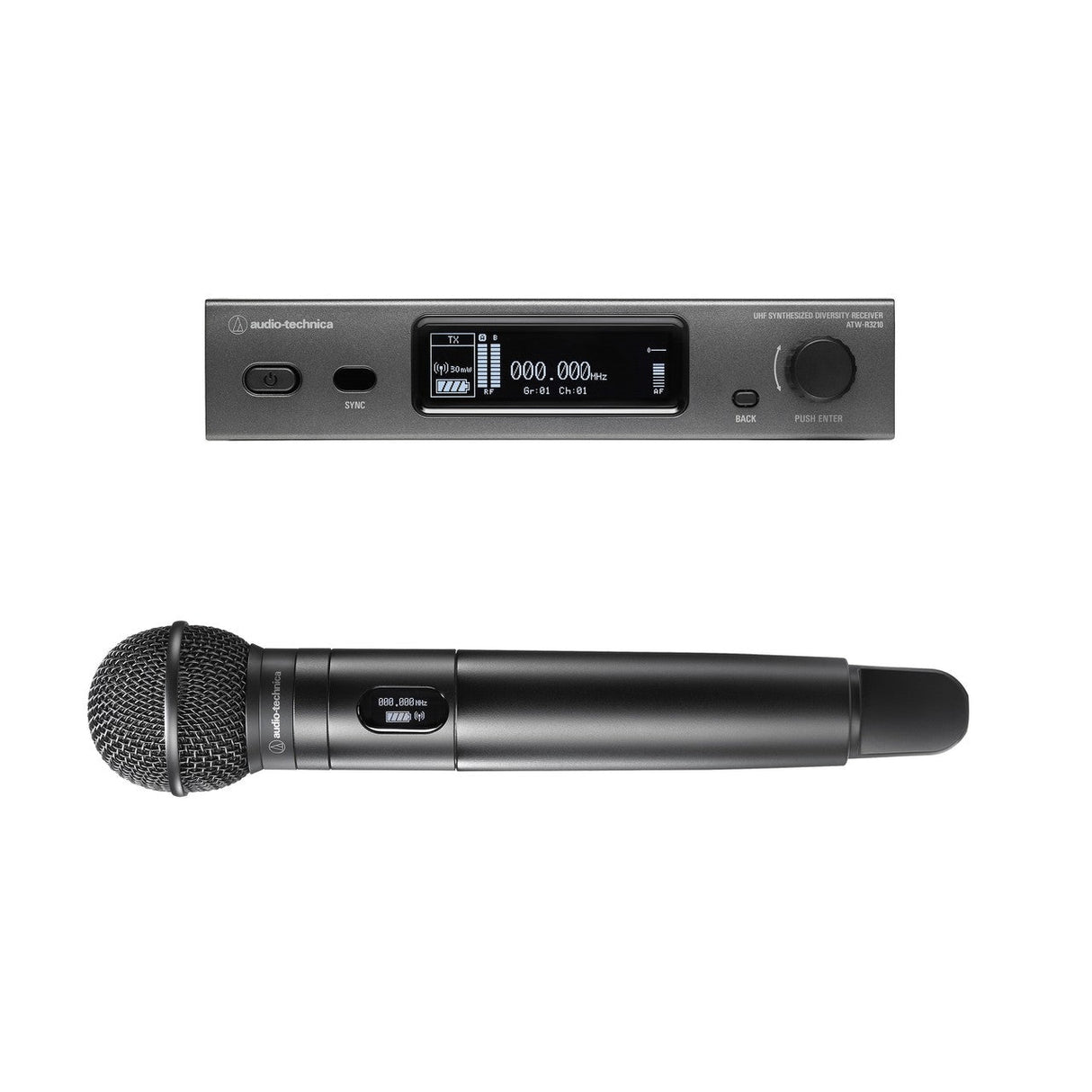

ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C510 cardioid dynamic microphone capsule.

Technical Specifications

Overall System
Operating Frequencies
Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Operating Frequencies
Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step
25 kHz
Modulation Mode
FM
Maximum Deviation
ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Frequency Response
ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element
Operating Range
100 m (328')
Open range environment with no interfering signals.
Total Harmonic Distortion
<1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range
-5° C to +45° C (23° F to 113° F)
Simultaneous Use
40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent

Handheld Transmitter
RF Power Output
High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions
Following Federal and National Regulations
Microphone Capsule
Interchangable industry standard thread
Battery Type
Two 1.5V AA, not included
Battery Life
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
Dimensions
ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
Net Weight
ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries

Body Pack
RF Power Output
High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
Battery Type
Two 1.5V AA, not included
Dimensions
64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H)
Input Connections
cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V
Net Weight
102 g (3.6 oz), without batteries
Spurious Emissions
Following Federal and National Regulations
High-pass (low-freq. roll-off)
125Hz, 12dB/octave

Receiver
Receiving System
True Diversity
Image Rejection
60 dB nominal
RF Sensitivity
20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Maximum Output Level
XLR, balanced: +14 dBV
6.3 mm (1/4"), unbalanced: +8 dBV
Antenna Input
BNC-type, 50 ohms
Antenna Power
12 V DC, 160 mA (combined)
Power Supply
100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions
210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H)
Weight
1100 g (38.8 oz), without accessories
Accessories Included
Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
