Blackmagic Design Mini Converter Audio to SDI 2 (Used)

The Blackmagic Design Mini Converter Audio to SDI 2 is an essential tool for professional video production, providing a seamless way to embed audio into any SDI source in both standard definition (SD) and high definition (HD) formats up to 1080p60. This used converter is in like-new condition, meaning it is an open box product with no signs of use. Whether you're working with balanced analog or AES/EBU audio, this converter ensures impeccable integration with your mixers and analog decks. It's an ideal solution for those who need a reliable and cost-effective SD/HD SDI audio embedder without the added expense of Ultra HD capabilities.

Optimize your production workflow with the Mini Converter Audio to SDI 2, which offers a range of inputs and outputs to suit different scenarios. The converter features automatic switching between inputs for uninterrupted performance, ensuring your project proceeds smoothly even if the main input fails. User-friendly and highly compatible, it supports auto detection of SD, HD, or 3G-SDI and offers USB 2.0 updates and configuration, allowing you to always stay up-to-date with the latest software enhancements.

Blackmagic Design has built its reputation by delivering professional-grade products that cater to modern video production needs, and the Mini Converter Audio to SDI 2 is no exception. Its robust construction and versatile functionalities make it indispensable equipment for videographers, broadcasters, and content creators who demand high-quality audio embedding solutions.

Key Features

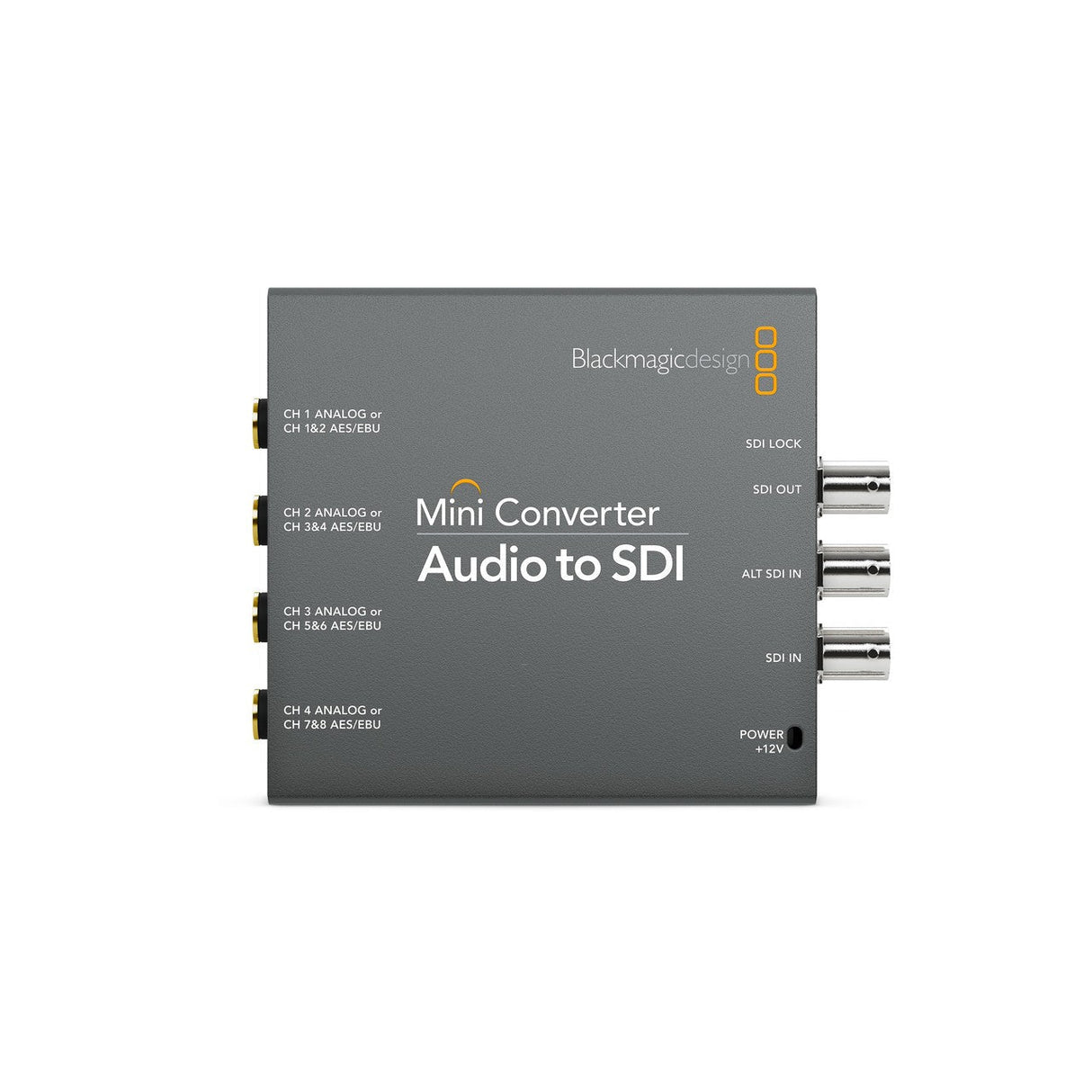

• SDI Video Inputs: 1 x SD, HD, or 3G-SDI. 1 x ALT SDI Input for automatic switch over if the main input fails.
• SDI Video Outputs: 1 x Embedded SDI Output.
• Analog Audio Inputs: 4 channels of balanced analog audio.
• Digital Audio Inputs: 8 channels of balanced AES/EBU audio.
• SDI Redundant Input: Automatically switches over if the main SDI input is lost.
• Multi Rate Support: Auto detection of SD, HD, or 3G-SDI.
• Updates and Configuration: Via USB 2.0 high speed (480 Mb/s).

Specifications

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
• SDI Video Rates: Switchable between standard definition and high definition
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Audio Sampling: 48 kHz and 24 bit
• SDI Color Precision: 4:2:2, 4:4:4
• SDI Color Space: YUV, RGB
• SDI Auto Switching: Automatically selects between SD, HD, and 3G-SDI
• Software Control: Mac and Windows software upgrade via USB
• Internal Software Upgrade: Via included updater application
• Operating Systems: Mac 10.12 Sierra, Mac 10.13 High Sierra or later; Windows 8.1 or Windows 10
• Power Supply: +12V universal power supply included with international socket adapters for all countries, cable tie point
• Power Consumption: 8.40 Watts
• Operating Voltage Range: 12V DC
• Physical Dimensions: Height 0.90 in, Width 3.63 in, Length 4.52 in, Weight 7.58 oz
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -20 to 45°C (-4 to 113°F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Mini Converter Audio to SDI 2
• 12V universal power supply with international socket adapters
