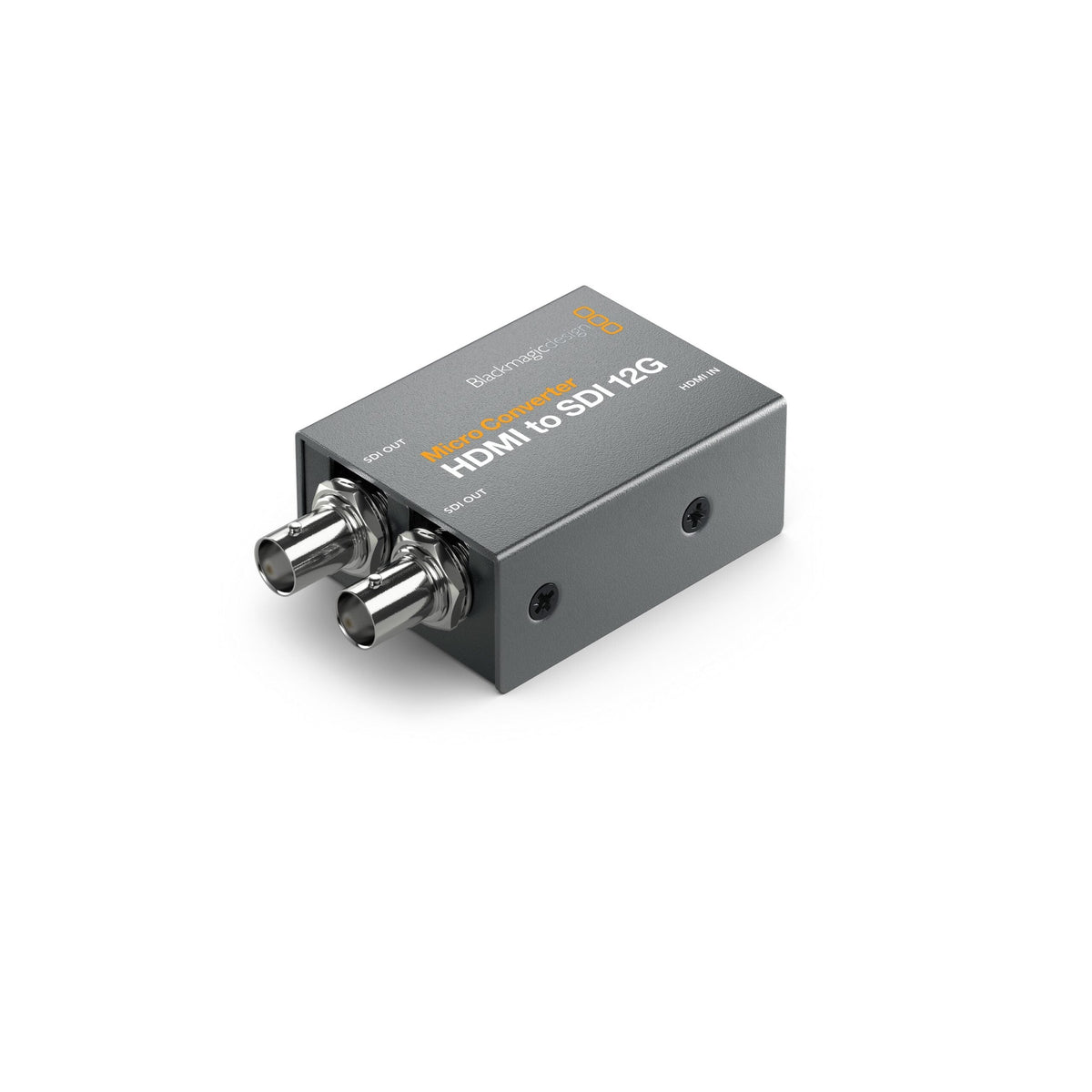

Blackmagic Design Micro Converter HDMI to SDI 12G (Used)

Like New: Open box product with no signs of use.

Blackmagic Design Micro Converter HDMI to SDI 12G (Used)

The Blackmagic Design Micro Converter HDMI to SDI 12G is the world's smallest HDMI to 12G-SDI broadcast quality converter! This miniaturized video converter is perfect for connecting HDMI cameras and computers to professional SDI equipment. Despite its compact size, it offers incredibly powerful features that make it an essential tool for any broadcast or production environment. With dual 12G-SDI outputs, versatile compatibility, and full-size HDMI and professional 12G-SDI connections, this converter is designed to handle your video conversions with ease and precision.

This used, like-new device shows no signs of wear and operates flawlessly. Ideal for a range of applications including live events, post-production, and professional broadcasting, the Blackmagic Design Micro Converter HDMI to SDI 12G supports a variety of SDI and HDMI video standards. From NTSC to PAL, 720p to 2160p, and even 4K DCI, it automatically detects and switches between different signal types, ensuring smooth and uninterrupted workflow. Plus, you can power it using a USB connection from your laptop or a mobile phone charger, adding further convenience and flexibility.

Beyond its exceptional functionality, the Blackmagic Design Micro Converter HDMI to SDI 12G also prioritizes high-quality video output. It supports 4:2:2 color precision and allows the loading of a 33-point LUT for precise monitor calibration or color correction. With its user-friendly setup and compatibility with both Mac and Windows systems, this converter is engineered to meet the demanding requirements of professional video production environments.

Key Features

• World’s smallest HDMI to SDI broadcast quality converter
• Dual 12G-SDI outputs for flexible and professional connectivity
• Supports a wide range of video standards including NTSC, PAL, 720p, 1080p, 2160p, and 4K DCI
• Full-size HDMI and professional 12G-SDI connections
• Automatic signal detection and switching for seamless operation
• Powered via USB from a laptop or mobile phone charger
• Supports 4:2:2 color precision and 33-point LUT loading for color calibration
• Compatible with MacOS and Windows software utility for settings control

Specifications

• SDI Video Outputs: 2, automatically matches HDMI input
• HDMI 2.0 Video Outputs: 1 x Type A
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
• Multi Rate Support: Auto detection of SD, HD, 2K, Ultra HD, and 4K
• Updates, Configurations and Power: USB Type-C
• Reclocking: Yes
• Supported SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• Supported HD Video Standards: 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, etc.
• Supported Ultra HD Video Standards: 2160p23.98, 2160p24, etc.
• Supported 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, etc.
• SDI Compliance: Multiple SMPTE standards
• SDI Video Rates: Switchable between SD, 720p, 1080i, 1080p, 2K DCI, Ultra HD, 4K DCI
• SDI Color Precision and Space: 4:2:2 YUV
• SDI Auto Switching: Yes, between SD, HD, Ultra HD, and 4K DCI
• HDMI Video Standards: Multiple, same as SDI standards
• HDMI Color Precision and Space: 4:2:2 YUV
• Copy Protection: HDMI input can’t capture from protected sources
• Settings Control: Via MacOS and Windows software utility over USB
• Operating Systems: Mac 10.15 Catalina or later; Windows 10, 64-bit
• Power Consumption: 4W max
• Operational Voltage Range: 4.4V to 5.25V DC

Package Contents

• Blackmagic Design Micro Converter HDMI to SDI 12G
• USB Type-C Cable
• User Manual
