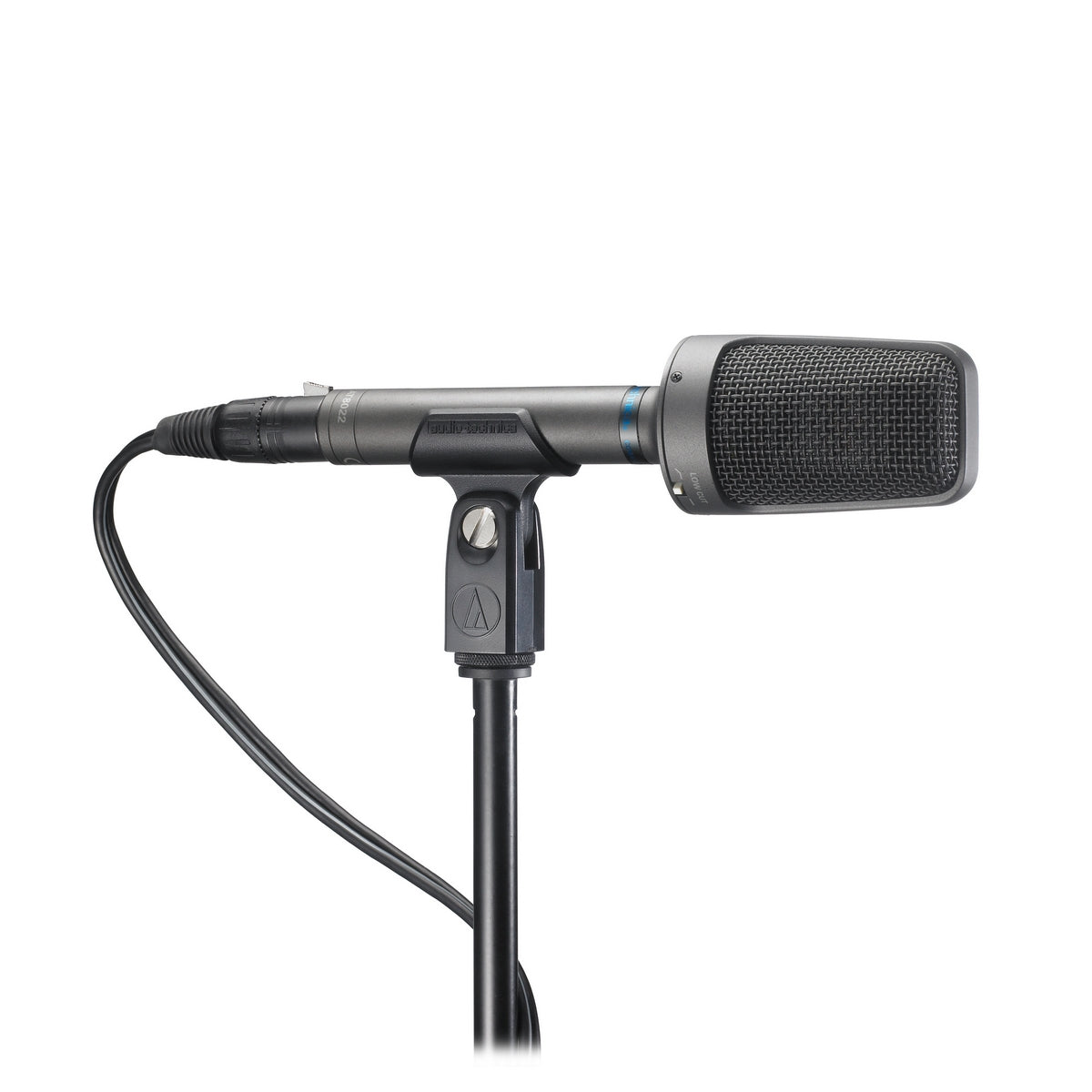

Audio-Technica AT8022 X/Y Stereo Video Camera Mount Microphone (Used)

Like New: Open box product with no signs of use.

Audio-Technica AT8022 X/Y Stereo Video Camera Mount Microphone (Used)

The Audio-Technica AT8022 X/Y Stereo Video Camera Mount Microphone is an exceptional choice for those seeking pristine sound quality and versatile functionality in a compact form. This used, like-new microphone boasts a robust construction, minimizing signs of previous use. Ideal for video camera mounting as well as stereo field recording, interviews, and home recording, this versatile condenser microphone delivers the precision and clarity you need to capture every detail of live sound fields.

The AT8022 features an innovative X/Y coincident capsule configuration that produces an accurate stereo image within a small housing. The microphone is also highly adaptable, offering the convenience of battery or phantom power, making it suitable for both professional and consumer equipment. To help you get started right out of the box, the AT8022 comes with two cables: one balanced with two 3-pin XLRM-type connectors and one unbalanced with a 3.5 mm TRS connector. Designed with compliance in mind, this microphone is RoHS-compliant, ensuring it meets the EU directive on the reduction of hazardous substances.

Key Features

• Innovative capsule configuration produces an accurate stereo image in a smaller housing
• Compact, lightweight design is perfect for video camera-mount use, stereo field recording, interviews, and home recording
• Ideal for use with handheld digital recording devices
• Operates on battery or phantom power for use with both professional and consumer equipment
• Switchable low-frequency roll-off
• Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced (3.5 mm TRS connector at output)
• RoHS-compliant and free from all substances specified in the EU directive on the reduction of hazardous substances

Specifications

• Element: Fixed-charge back plate permanently polarized condenser
• Polar Pattern: X/Y Stereo
• Frequency Response: 20-15,000 Hz
• Low Frequency Roll-off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa; Battery: -38 dB (12.5 mV) re 1V at 1 Pa
• Channel Balance: <2.5 dB
• Impedance: Phantom: 250 ohms; Battery: 300 ohms
• Maximum Input Sound Level: Phantom: 128 dB SPL, 1 kHz at 1% T.H.D.; Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range (typical): Phantom: 109 dB, 1 kHz at Max SPL; Battery: 101 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 75 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical (each channel)
• Battery Type: 1.5V AA/UM3
• Battery Current/Life: 0.7 mA/700 hours typical (alkaline)
• Switch: Battery On/Off; Flat, roll-off
• Weight: 247 g (8.7 oz)
• Dimensions: 186.0 mm (7.32") long, 47.6 mm (1.87") head diameter, 21.0 mm (0.83") maximum body diameter
• Output Connector: Integral 5-pin XLRM-type
• Cables: Balanced: 2.0 m (6.5') stereo cable with 5-pin XLRF-type connector at the microphone end and two 3-pin XLRM-type connectors at output; Unbalanced: 0.6 m (2.0') stereo cable with 5-pin XLRF-type connector at the microphone end and 3.5 mm TRS connector at the output end
• Accessories: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; battery; soft protective pouch
• Case Style: S12

Package Contents

• Audio-Technica AT8022 X/Y Stereo Video Camera Mount Microphone
• AT8405a stand clamp for 5/8"-27 threaded stands
• Windscreen
• Battery
• Two cables: one balanced, one unbalanced
• Soft protective pouch
