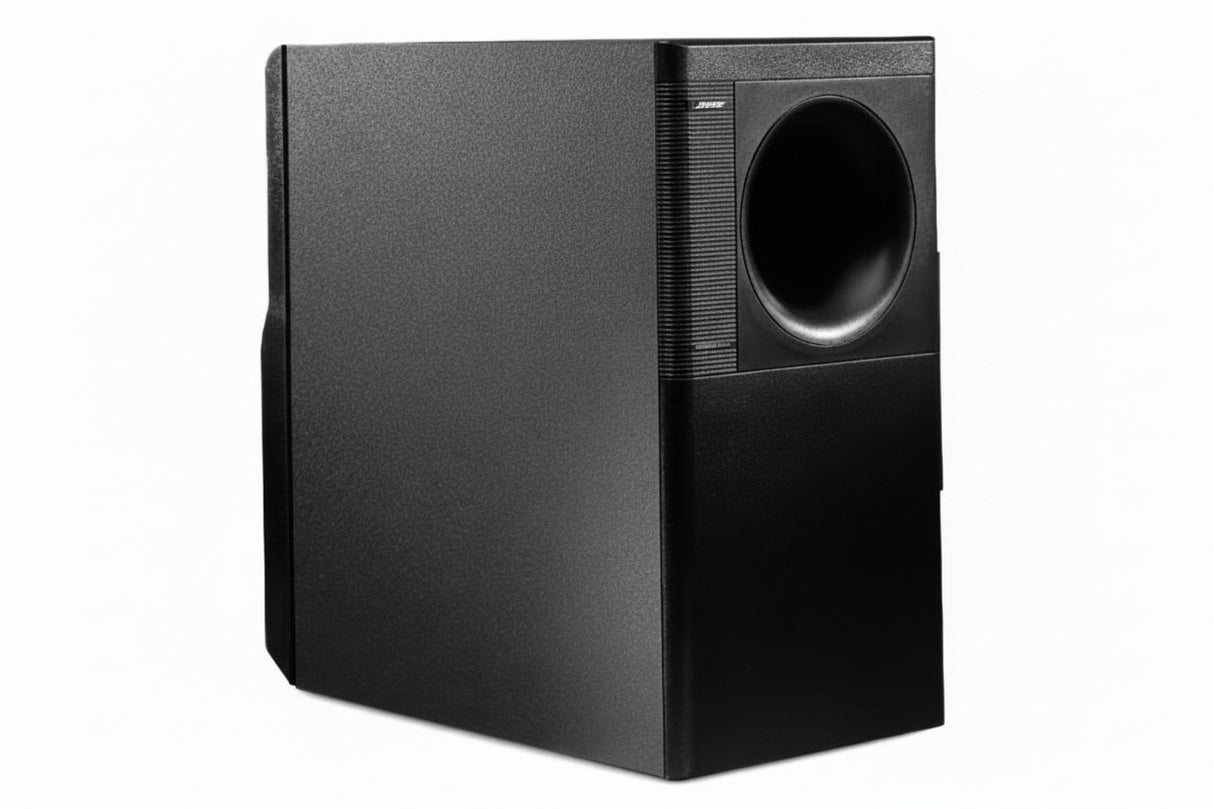

Bose FreeSpace 3 Surface Mount Acoustimass Bass Module Indoor Low Frequency Loudspeaker Black Single (Used)
Great: Minimal signs of use.
The Bose FreeSpace 3 Surface-Mount Acoustimass Bass Module is a low-frequency loudspeaker designed to enhance background music systems with deep, non-localized bass. Engineered for indoor commercial environments, it provides consistent low-frequency performance while maintaining a clean and unobtrusive installation.
Key Features
- Low-frequency loudspeaker designed for background music systems
- 5.25-inch dual-voice-coil woofer for extended bass response
- Delivers deep, non-localized bass down to approximately 40 Hz
- Acoustimass technology helps reduce audible distortion
- Supports selectable 70V / 100V or low impedance operation
- Surface-mount design with included mounting bracket
- Allows parallel connection of multiple bass modules
- Can support two or four FreeSpace 3 satellite speakers per module
- Designed for indoor commercial environments
Technical Specifications
- Product Type: Surface-mount Acoustimass bass module
- Driver: 5.25-inch (133 mm) dual-voice-coil low-frequency driver
- Frequency Response (+/-3 dB): 50 Hz - 230 Hz
- Frequency Range (-10 dB): 40 Hz - 315 Hz
- Nominal Dispersion: Omnidirectional below 200 Hz
- Maximum SPL @ 1 m: 96 dB (102 dB peak) per channel; 102 dB (108 dB peak) mono
- Power Handling: 70/100V – 200 W mono; Low impedance – 50 W per channel stereo or 100 W mono
- Nominal Impedance: 5 Ω mono (transformer bypassed)
- Enclosure Material: High-density wood composite with PVC laminate
- Mounting: Surface-mount with preattached bracket
- Dimensions: 14.0" H × 8.7" W (with bracket) × 13.6" D
- Weight: 17.5 lb (7.9 kg)
- Environment: Indoor use only
Compatibility
The Bose FreeSpace 3 bass module is designed to work with FreeSpace 3 satellite speakers and can also be integrated into compatible background music systems requiring low-frequency reinforcement.
Installation & Use Case
This bass module is suitable for commercial installations such as retail spaces, restaurants, hospitality environments, and conference rooms. Its surface-mount design allows flexible placement while maintaining consistent bass coverage throughout the space.
Multiple bass modules can be used together to scale low-frequency performance depending on room size and system design requirements.
Package Contents
- Bose FreeSpace 3 Surface-Mount Acoustimass Bass Module (Black)
- Preattached mounting bracket
Frequently Asked Questions
What is the purpose of the Bose FreeSpace 3 Acoustimass Bass Module?
The Bose FreeSpace 3 Acoustimass Bass Module is designed to provide low-frequency reinforcement for background music systems, delivering non-localized bass for indoor applications.
What type of driver is used in the Bose FreeSpace 3 bass module?
The Bose FreeSpace 3 bass module uses a 5.25-inch dual-voice-coil low-frequency driver.
Can the Bose FreeSpace 3 bass module be used with 70V or 100V systems?
Yes, the Bose FreeSpace 3 bass module supports selectable 70V/100V operation and can also be used in low-impedance configurations.
Is the Bose FreeSpace 3 bass module suitable for outdoor use?
No, the Bose FreeSpace 3 surface-mount Acoustimass bass module is designed for indoor use.
What type of audio system is the Bose FreeSpace 3 bass module designed for?
The Bose FreeSpace 3 bass module is designed for indoor commercial audio systems that require low-frequency reinforcement as part of a background music setup.
