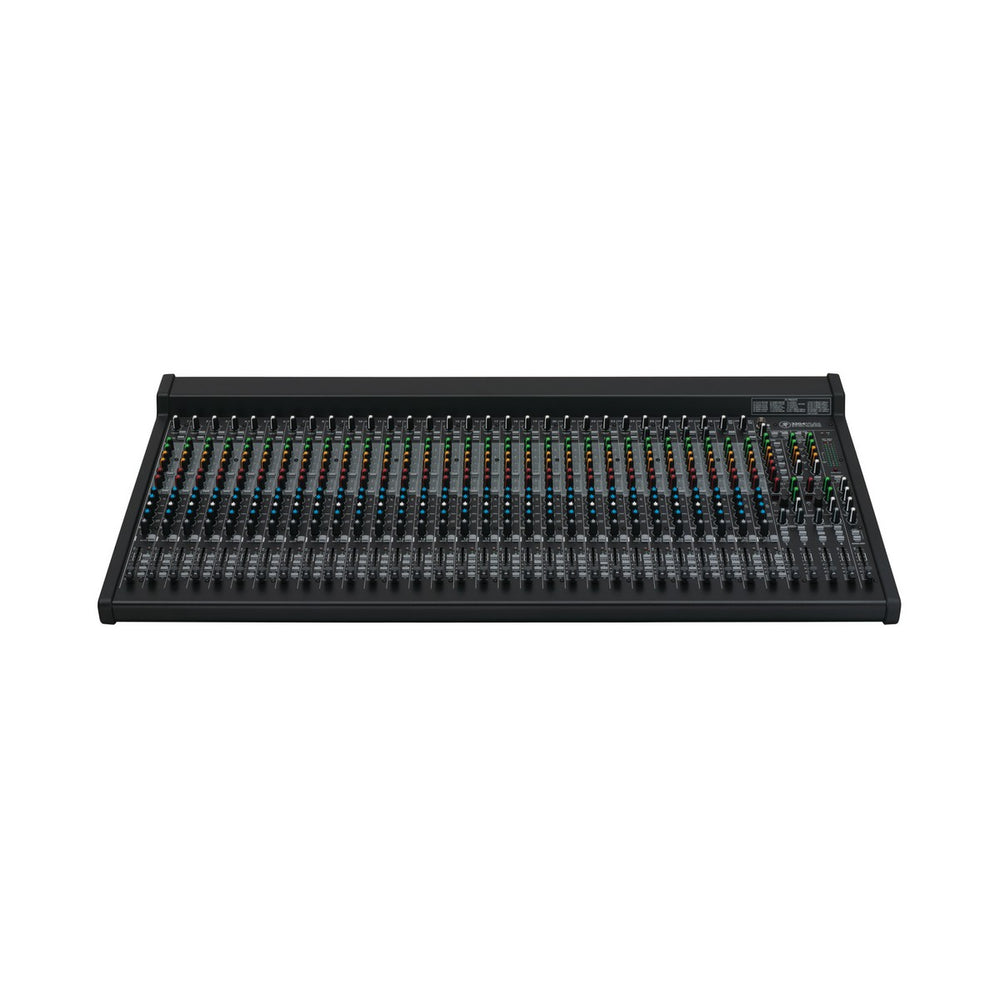

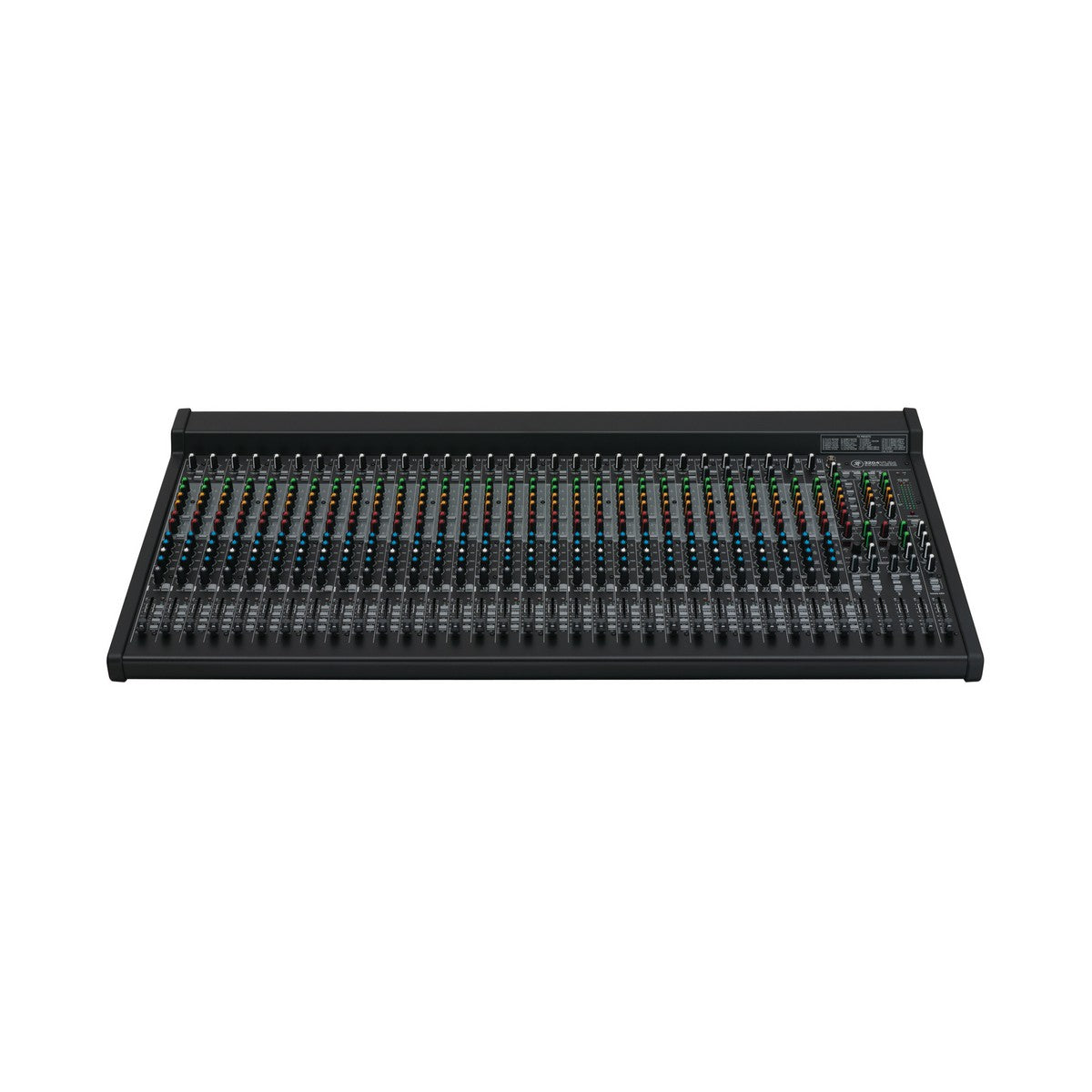

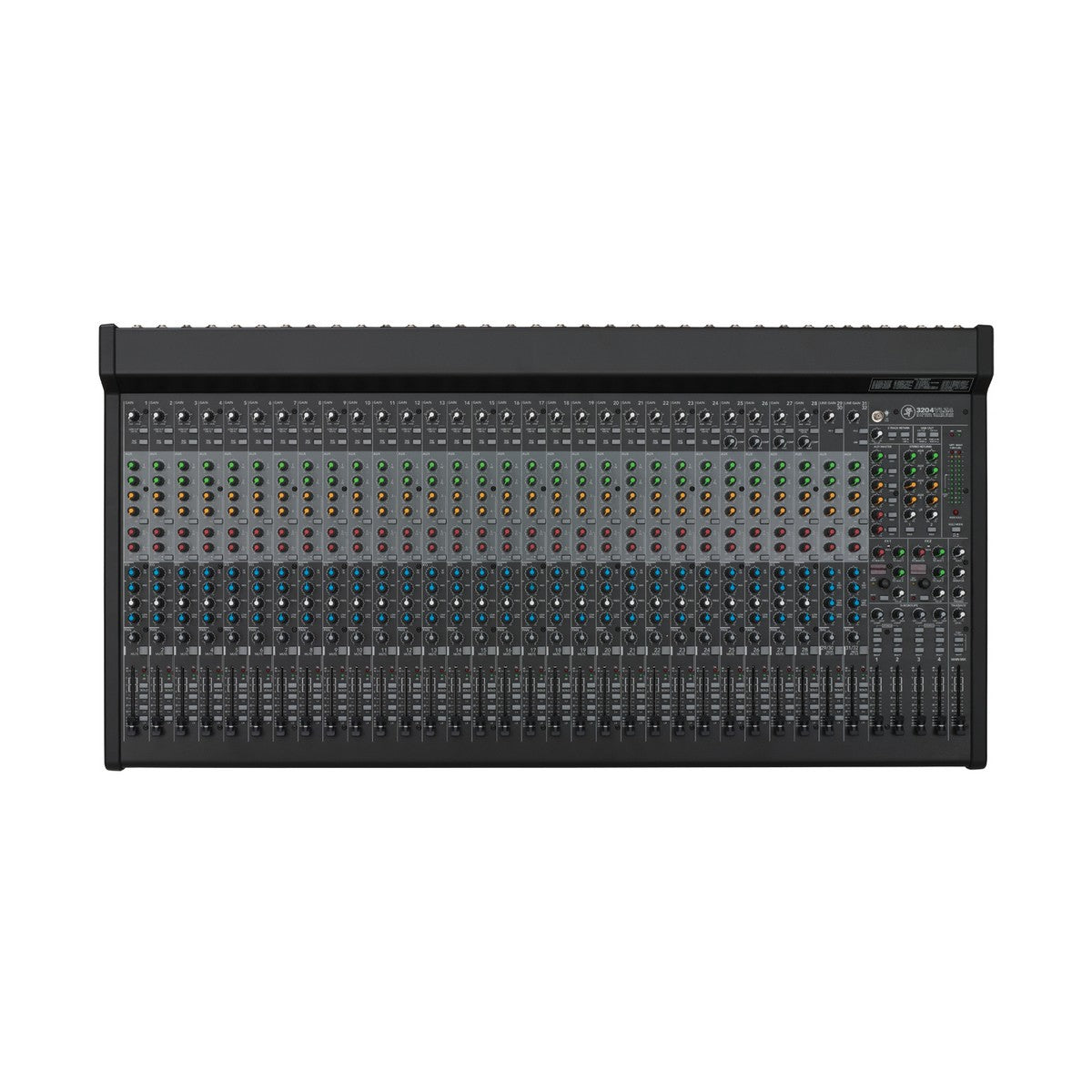

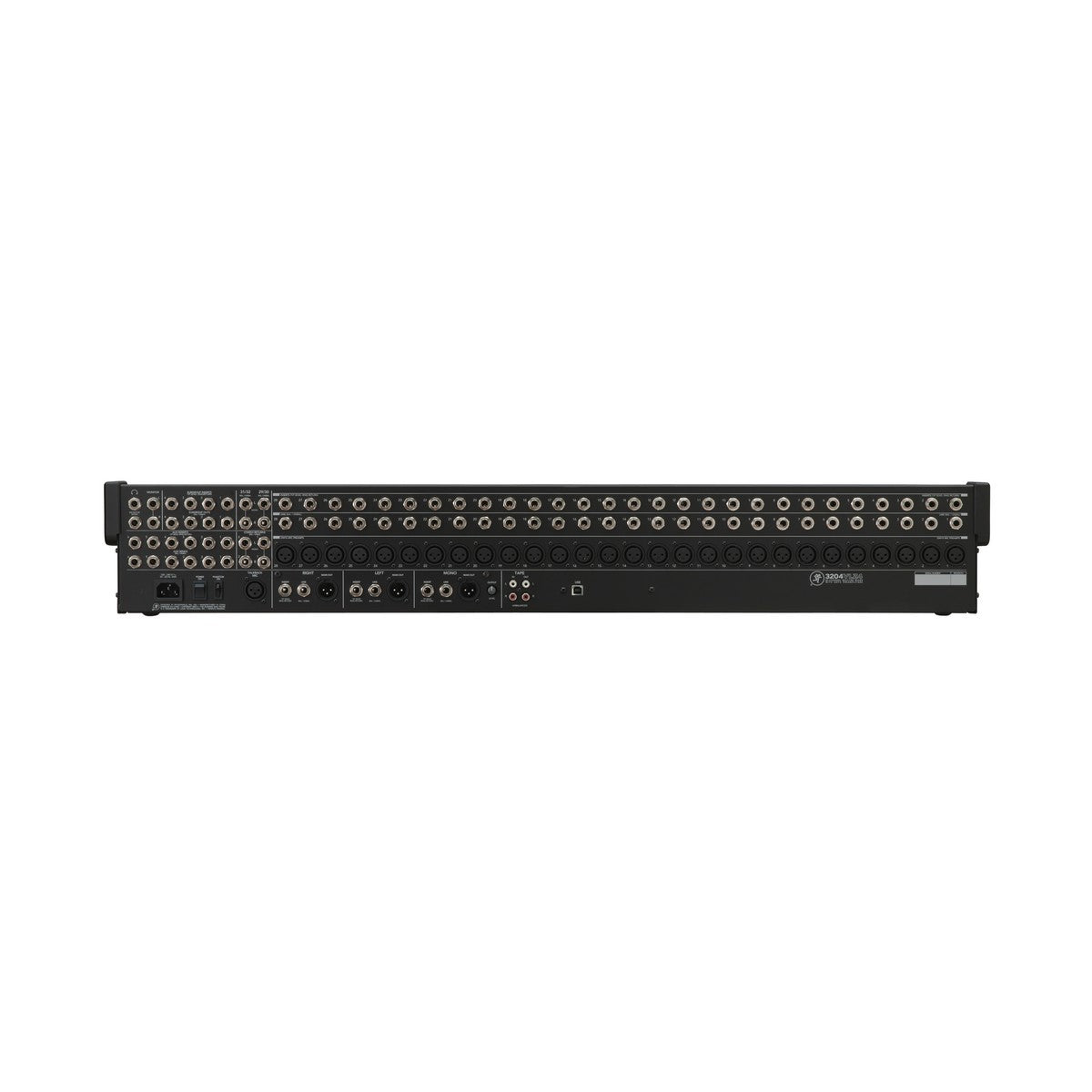

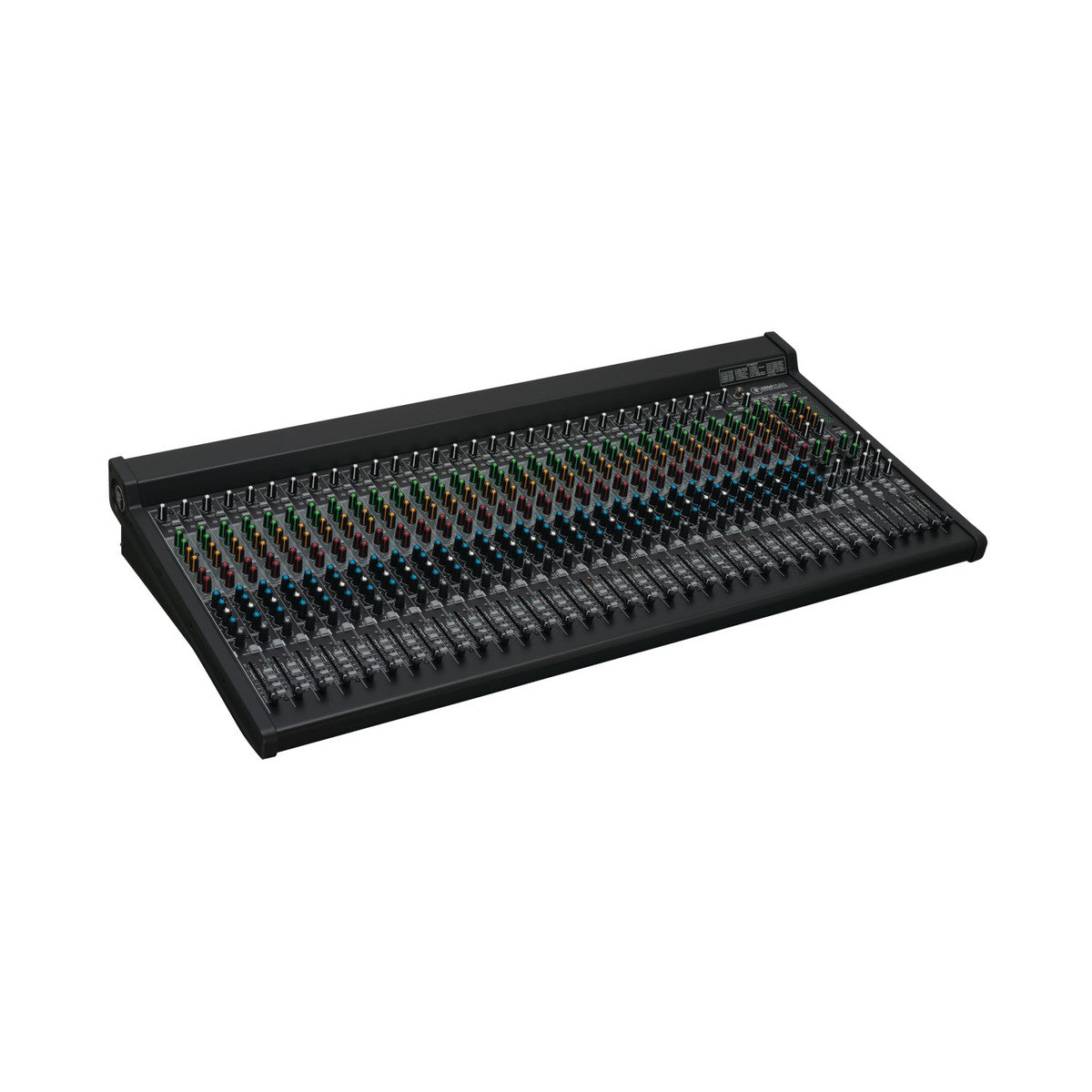

Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB

The Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB is an outstanding piece of technology from the renowned VLZ4 4-Bus Series. This mixer features the premium Onyx microphone preamps, renowned for delivering high-headroom and low-noise performance, making it an ideal choice for live sound environments. Equipped with dual 32-bit RMFX+ effect processors, each providing 24 effects including tap delay, this mixer allows for a wide range of high-quality audio effects. It also boasts compression on dedicated channels and subgroups, which makes dynamic control straightforward and efficient. Perfect for live sound, studio recording, and a variety of other audio applications, the Mackie 3204VLZ4 ensures your sound is crystal clear and professionally controlled.

Furthermore, the Mackie 3204VLZ4's design is impeccable for live performances as well as studio environments. The 32-channel mixer is equipped with 8 single-knob compressors that ensure dynamic signals are well managed, whether you're dealing with vocals, drums, or musical instruments. The group compressors make it simple to achieve a smooth blend for ensemble performances. Its flexible 4x2 USB recording and playback function allows simultaneous recording of up to 4 signals and a stereo mix return, which is perfect for capturing live performances or studio sessions. The rugged construction of the mixer guarantees durability, making it a reliable choice for professionals who demand consistent and high-quality audio performance.

With comprehensive EQ features, versatile AUX sends, and an intuitive layout, the Mackie 3204VLZ4 stands as a robust, professional-grade solution for various audio needs. Its universal power supply also ensures you can use it worldwide, making it a versatile addition to any audio setup.

Key Features

• 4-bus mixer featuring high-headroom, low-noise design
• Boutique-quality Onyx microphone preamps
• Wide 60 dB gain range
• 128.5 dB dynamic range
• +22 dBu line input handling
• Extended frequency response
• Distortion under 0.0007% (20 Hz to 50 kHz)
• Improved RF rejection, suitable for broadcast applications
• Phantom power for condenser microphones
• Dedicated inline channel compression for critical inputs
• High-headroom line inputs with dedicated inserts
• 3-Band EQ with sweepable mid-range
• 18 dB/octave 100 Hz low-cut filter on microphone input channels
• Level, pan, solo, and overload/mute LEDs on each channel
• Four subgroups featuring dedicated inline compressors for total dynamic control
• Six AUX sends with inserts, pre/post fader, and internal/external FX send options
• Two stereo returns and four group outs with inserts
• Dual 32-bit RMFX+ processors featuring 24 gig-ready reverbs, choruses, and tap delay for live applications
• Integrated 4x2 24-bit USB interface
• Stream subgroups or master L/R to your PC or Mac for recording
• Use your favorite plug-in live via AUXES 5/6
• Convenient stereo return to mains for music playback or return to channel to implement EQ, AUXES, and more
• PFL/AFL Solo modes
• 60mm long-wearing, log-taper faders
• High-resolution, 12-segment stereo meters
• Sealed rotary controls resist dust and grime
• Built-like-a-tank rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
• Universal power supply for worldwide use

Specifications

• Main Mix Noise:
• Main Mix Fader at Unity, Channel Faders Down: -84.5 dBu (-88.5 dB signal to noise ratio, ref +4 dBu)
• Main Mix Fader at Unity, Channel Faders at Unity: -80 dBu
• (20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)
• Total Harmonic Distortion (THD):
• Microphone In to Insert Send: under 0.001%
• Microphone In to Main Out: under 0.005%
• (1 kHz at 15 dB gain, 20 Hz to 20 kHz bandwidth)
• Crosstalk/Attenuation:
• Channel Mute Switch Engaged: -90 dBu
• Channel Fader Down: -88 dBu
• (1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4" main out, gain at unity)
• Frequency Response:
• Microphone input to main output (gain at unity):
• +0 -1 dB, 20 Hz to 50 kHz
• +0 -3 dB, less than 10 Hz to greater than 100 kHz
• Equivalent Input Noise:
• 150 Termination: -128.5 dBu, 20 Hz to 20 kHz
• Microphone input to insert send out, maximum gain
• Common Mode Rejection Ratio:
• Better than -70 dB at 1 kHz
• Maximum Level:
• Microphone In: +21 dBu
• All Other Inputs: +21 dBu
• Main Mix XLR Out: +27 dBu
• All Other Outputs: +21 dBu
• Impedance:
• Microphone In: 2.7 k
• Channel Insert Return: 2.5 k
• All Other Inputs: 10 k or greater
• Tape Out: less than 10
• All Other Outputs: 120
• Equalizer:
• 3-Band EQ (Mono Channels):
• High Shelving: ±15 dB at 12 kHz
• Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
• Low Shelving: ±15 dB at 80 Hz
• Low Cut Filter: 18 dB/octave -3 dB at 100 Hz
• 4-Band EQ (Stereo Channels):
• High Shelving: ±15 dB at 12 kHz
• Hi Mid Peaking: ±15 dB at 2.5 kHz
• Low Mid Peaking: ±15 dB at 400 Hz
• Low Shelving: ±15 dB at 80 Hz
• USB:
• Format: USB 1.1
• I/O: Stereo Input, 4-Channel Output
• A/D/A: 24 bit, 44.1 kHz / 48 kHz
• Power Consumption: 65 W, 100 to 120 VAC, 50 to 60 Hz
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Dimensions:
• Height:
• Front: 1.8" (46.3 mm)
• Rear: 6" (153 mm)
• W x D: 38.0 x 19.1" (964.0 x 486.0 mm)
• Weight: 39.0 lb (17.7 kg)

Package Contents

• Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB
• Universal Power Supply
• User Manual
