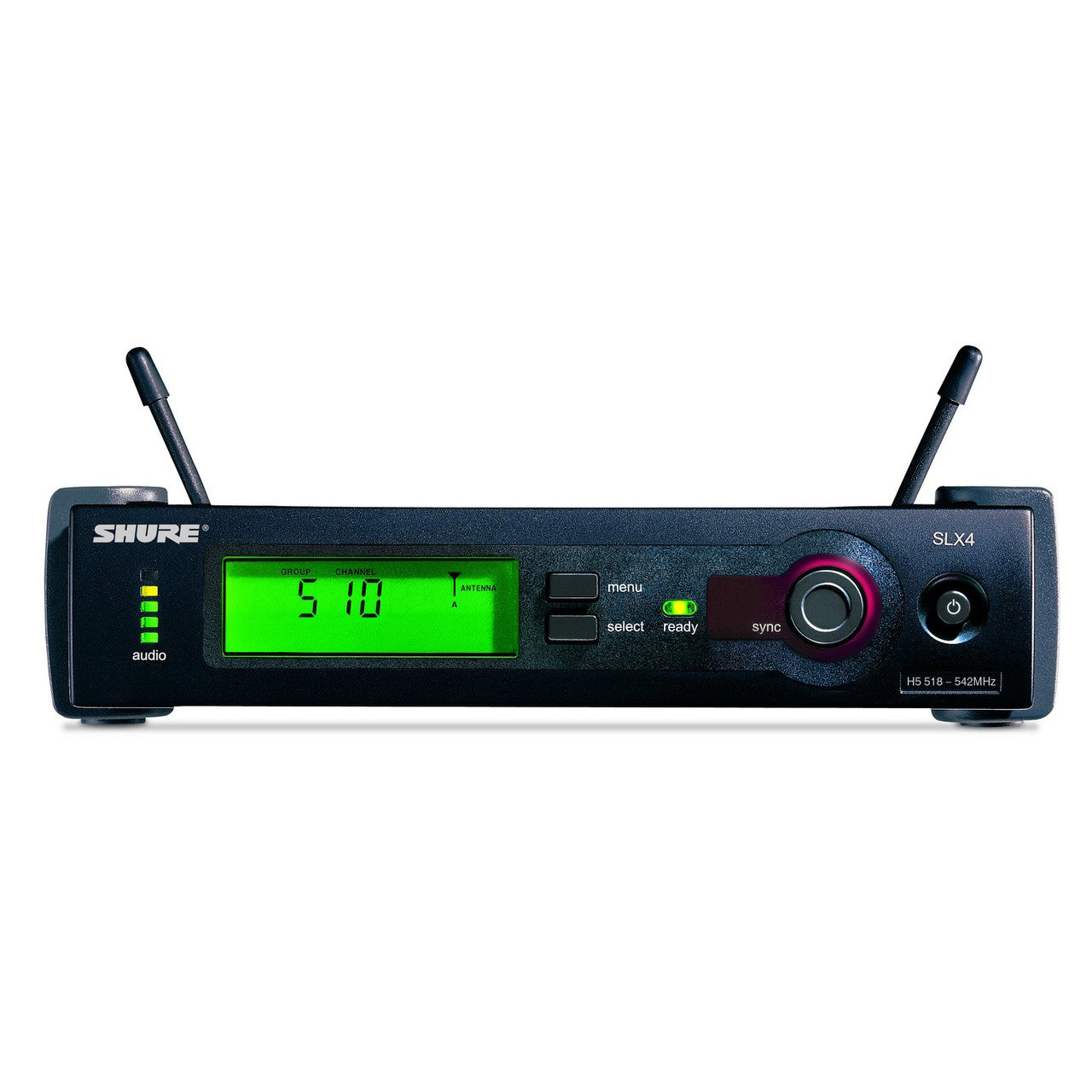

Shure SLX4 Single Channel Diversity Receiver H5 (Used)

The Shure SLX4 Single Channel Diversity Receiver H5 is an excellent, reliable solution for any professional looking to enhance their wireless audio experience. This previously used model may display signs of heavy usage, but it functions flawlessly, making it an ideal addition to your audio setup. Known for its incredible ease of use, the SLX4 ensures seamless operation with features like Automatic Frequency Selection and Automatic Transmitter Setup. This receiver is specifically designed for use with Shure’s SLX Wireless systems.

With its rugged metal chassis and compact 1/2 rack design, the SLX4 is ready for immediate installation, complete with furnished rack hardware and detachable antennas. The backlit LCD provides clear and accessible data, while the microprocessor-controlled diversity ensures reliable performance. Regardless of your audio environment, the SLX4 delivers an unparalleled wireless experience perfect for both amateur and professional applications.

Key Features

• Automatic Frequency Selection
• Automatic Transmitter Setup
• 960 Selectable Frequencies Across 24 MHz Bandwidth
• Detachable 1/4 Wave Antennas
• Microprocessor-Controlled Diversity
• RF Presence LED
• 5-Segment Audio Meter
• Multi-Function, Backlit LCD
• Low Battery Indicator
• Frequency and Power Lockout
• Rugged Metal Chassis
• Volume Control on Rear of Unit
• 1/2 Rack Design
• Furnished Rack Hardware
• Non-Slip Bumpers for Use Out of Rack
• XLR and 1/4 Inch Outputs

Specifications

• Frequency: H5: 518~542 MHz
• Dimensions: 42mm X 197mm X 134mm (H x W x D)
• Weight: 816 g (1 lb 13oz)
• Housing: Galvanized Steel
• Sensitivity: -105 dBm for 12 dB SINAD, Typical
• Power Requirements: 12-18 V DC @ 150 mA, Supplied by External Power Supply (Tip Positive)
• Configuration: Impedance Balanced
• Maximum Audio Output Level: Ref. ±38 kHz Deviation with 1 kHz Tone
• XLR Connector: -13 dBV (into 600 Ohm Load)
• 6.35 mm (1/4 Inch) Connector: -2 dBV (into 3 k Ohm Load)
• Impedance
• XLR Connector: 200 Ohm
• 6.35 mm (1/4 Inch) Connector: 1 k Ohm
• Pin Assignments:
• XLR Connector: 1=Ground, 2=Audio, 3=No Audio
• 6.35 mm (1/4 Inch) Connector: Tip=Audio, Ring=No Audio, Sleeve=Ground
• Image Rejection: >70 dB, Typical
• Volume Adjustment Range: 0 dB to -25 dB

Package Contents

• Shure SLX4 Single Channel Diversity Receiver H5 (Used)
• Rack Hardware
• Detachable 1/4 Wave Antennas
• External Power Supply
• User Manual
