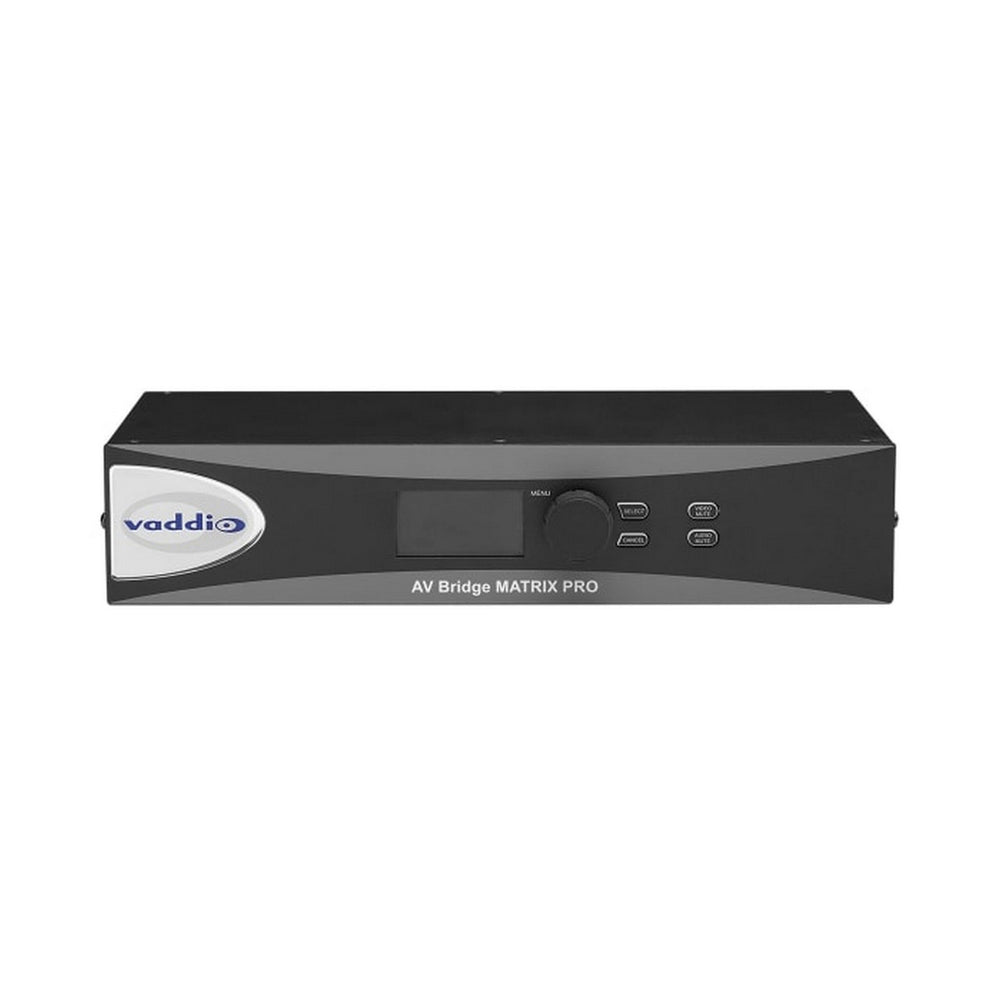

Vaddio AV Bridge MATRIX PRO Encoder

Vaddio AV Bridge MATRIX PRO Encoder

Why have a full rack of gear when one device can do it all? The AV Bridge MATRIX PRO encoder provides a simple way to add multiple cameras, microphones and other AV devices to a traditional AV room design. It then manages the complex process of mixing, switching and controlling those devices into a single USB and IP stream.

Users get the advantage of integrating their PC-based platform and intuitive UC interface while being connected to multiple sensory inputs that provide a professional AV experience. At the same time, they also get access to cloud-based applications and a UC platform of choice for content creation and sharing, audio conferencing, video conferencing, and a multitude of other collaboration activities.

This Package Includes:
AV Bridge MATRIX PRO
Quick-Start Guide
24V 3.75A power supply with AC cord set(s)
2 qty rack ears
8 qty 3-position phoenix-style connectors
1 qty 12-position phoenix-style connector
6' (1.83m) USB 2.0 cable, type A to B

Key Features

• AV encoder with simultaneous IP and USB 2.0 streaming
• High-definition streaming quality - 1080p
• Four-input HD video switcher
• Built-In Quick-Connect Technology
• 9x5 cross-point audio matrix mixer/switcher
• Four EasyMic audio ports with built-in AEC
• Easy, intuitive web-based user interface

Technical Specifications

Color
Black
Certifications
CE Approved, FCC Approved, TAA Compliant
Product Width
18.93" (48.08 cm)
Product Height
3.47" (8.81 cm)
Product Depth
8" (20.32 cm)
Product Weight
5.6 lbs (2.54 kg)
Power Type
Local Power
Input Ports
HDMI, EZ Power/Video, HD-YPbPr, RGBHV
Output Ports
HDMI, HSDS, IP-Streaming
Browser-based User Interface for Remote Control
Built-in
Control Method
Joystick, Web UI
OneLINK Compatibility
No
Top Resolution
1080p/60
Operating Temperature
32 to 104F (0 to 40C)
Warranty
2 years
Power Supply
24 VDC, 3.75 A
Quick-Connect Compatibility
No
