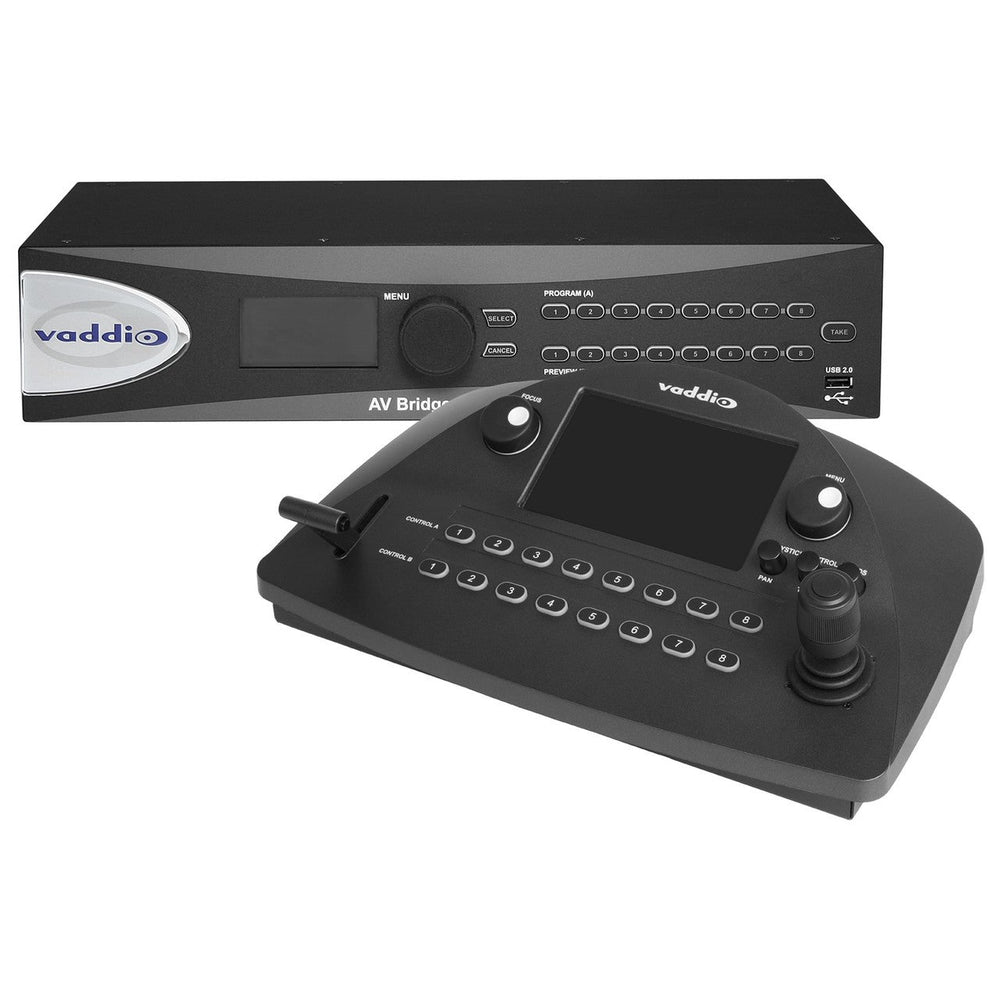

Vaddio AV Bridge MatrixMIX Production System 8x2 Video Mixer
The AV Bridge MatrixMIX AV Switcher is an 8x2 video mixer that also provides multiviewer output. Its 11x7 audio mixer supports analog, HDMI, USB and IP audio channels. It offers embedded RTSP IP and USB 3.0 output streaming, plus two graphic keying layers per output channel.
The system's PCC MatrixMIX Camera Controller and TeleTouch 27 USB Touch-Screen Multiviewer, plus Vaddio cameras, audio devices or trigger sensors, you can create customized solutions for a number of specific applications:
Use as a production switcher in a live event application (live streaming switcher)
Configure as a local presentation switcher for a lecture capture application in a larger lecture hall
Configure for a PC-based collaboration session
Because the AV Bridge MatrixMIX can be controlled remotely, an operator can use it in large enterprise and higher education applications where a centralized control center is used to control multiple AV rooms
Simple to operate
Because it is easy to use, an IT staffer or volunteers at a house of worship can create a first-rate production without extensive training. With the AV Bridge MatrixMIX and the TeleTouch MultiViewer, the user simply touches the screen for live video production to choose which camera scene to use and it goes live.
Key Features
- 8x2 video mixer that also provides multiviewer output
- 11x7 audio mixer supports analog, HDMI, USB and IP audio channels
- Embedded RTSP IP and USB 3.0 output streaming
- Two graphic keying layers per output channel
Technical Specifications
AV Bridge MatrixMIX
Camera and Video HDMI Inputs
Color Space: YCbCr or sRGB
Resolution (Inputs 1-6): 720p/50 to 1080p/60
Resolution (Inputs 7, 8): 720p/50 to 2048x1152/60
Program, Preview, and Multiview HDMI Outputs
Color Space: YCbCr or sRGB
Resolution: 720p/50 to 1080p/60
HDCP Support: Program and Preview
IP Streaming
Channels: 1 video+audio
Format: RTSP
Encoding: H.264
Resolutions: 360p/15 to 1080p/30
USB Streaming
Channels: 1 video, 2 audio
Drivers: UVC, UAC
Resolution: 180p/15 to 1080p/30, auto negotiated
PCC MatrixMIX
Camera Management and Video Output
Control via IP Network:
Up to 8 cameras via connected AV Bridge MatrixMIX switcher
Directory of up to 10 connected AV Bridge MatrixMIX switchers
Local Program Output: HDMI at resolutions up to full HD (1080p/60)
IP Streaming Decoder and Protocol: H.264, RTSP
Streaming Resolution: Up to full HD (1080p/60)
Hardware
Control console:
7” capacitive touch panel display Camera presets and administrative menu
Illuminated rotary knobs Focus (control, auto/manual) and Menu (display panel navigation)
Rotary knobs Pan, tilt, and zoom speed
Illuminated pushbuttons Program and Preview camera selection
3-axis Hall effect joystick, single-button Pan, tilt, and zoom
T-bar for manual transitions
System I/O:
Gigabit Ethernet port with PoE+ support
HDMI output
