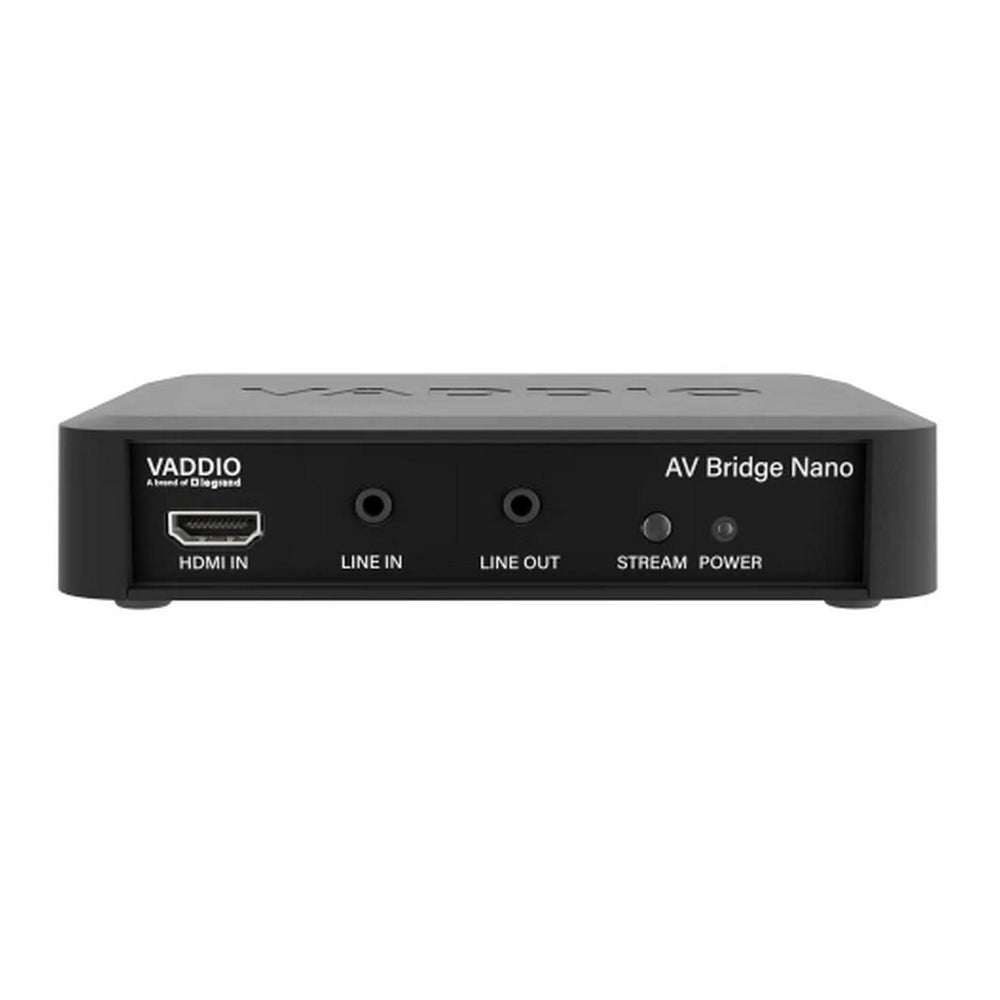

Vaddio AV Bridge Nano Portable Video Capture and Streaming Device

Vaddio AV Bridge Nano Portable Video Capture and Streaming Device

Building upon the success of the AV Bridge Mini and AV Bridge 2x1, the AV Bridge Nano is a brand-new addition to the product family known for its ability to connect professional AV equipment to USB and IP streaming applications. It retains some of the most popular qualities of the full-featured AV Bridge models in a highly portable, cost-effective device that IT and enterprise users will appreciate. The AV Bridge Nano also complements AV systems in lecture halls, town hall meetings, or houses of worship.

The AV Bridge Nano enables reliable streaming and video capture scenarios over USB or RTSP/RTMP without needing to purchase two separate devices. The essential feature set makes it ideal for the corporate user in cost-conscious applications that do not require the full functionality of the AV Bridge Mini. It is fully compatible with the Vaddio Deployment Tool and Vaddio Device Controller touchscreen accessory, and the HDMI pass-through feature makes it easy to integrate into Cisco codec setups.

The AV Bridge Nano is compatible with the most popular soft conferencing applications, such as Microsoft Teams, Zoom, WebEx and others, thanks to its powerful USB 3.0 interface. It can also be used as a USB capture card for ingesting HDMI video into video editing applications like Adobe Premiere and OBS Studio. Its networking capabilities enable the creation of production-quality live streams on platforms such as YouTube Live, LinkedIn, Facebook, Twitch, Dacast and Panopto.

The smallest chassis in the Vaddio AV Bridge lineup ensures ultimate portability and allows the AV Bridge Nano to be mounted under a table, behind a display, or within a mobile conferencing cart system with the optional table-mount. The Kensington lock port provides peace of mind.

Note: Installers looking for simultaneous USB and IP streaming, PoE power, rack-mounting or more full-featured conference/meeting room solutions should consider AV Bridge Mini or AV Bridge 2x1.

Key Features

• Converts an HDMI source into plug-and-play USB and IP connections for use in soft-conferencing or streaming software
• Single device capable of USB or IP streaming (up to 1080p/60 quality with USB 3.0)
• Compact size, portable and perfect for under-table or behind-display mounting

Technical Specifications

Depth
4.4 in (11.3 cm)
Height
1.3 in (3.2 cm)
Operating Temperature
32° to 104°F (0° to 40°C)
Product Weight
1.6 lbs (0.7 kg)
Width
5.8 in (14.8 cm)
Browser-based User Interface for Remote Control
Built-in
Color
Black
Control Method
Telnet
Web UI
Input Ports
3.5mm stereo Line Level Audio
HDMI
RJ-45
OneLINK Compatibility
No
Output Ports
Audio
HDMI
IP Streaming
USB 3.0 Type C, uncompressed USB 3.0, MJPEG compression on USB 2.0
Power Supply
1.5A
12VDC
Power Type
Local Power
Special Features
IP Streaming
Kensington Lock
Top Resolution
1080p 60
Certifications
CE
FCC
TAA
Warranty
3 years
