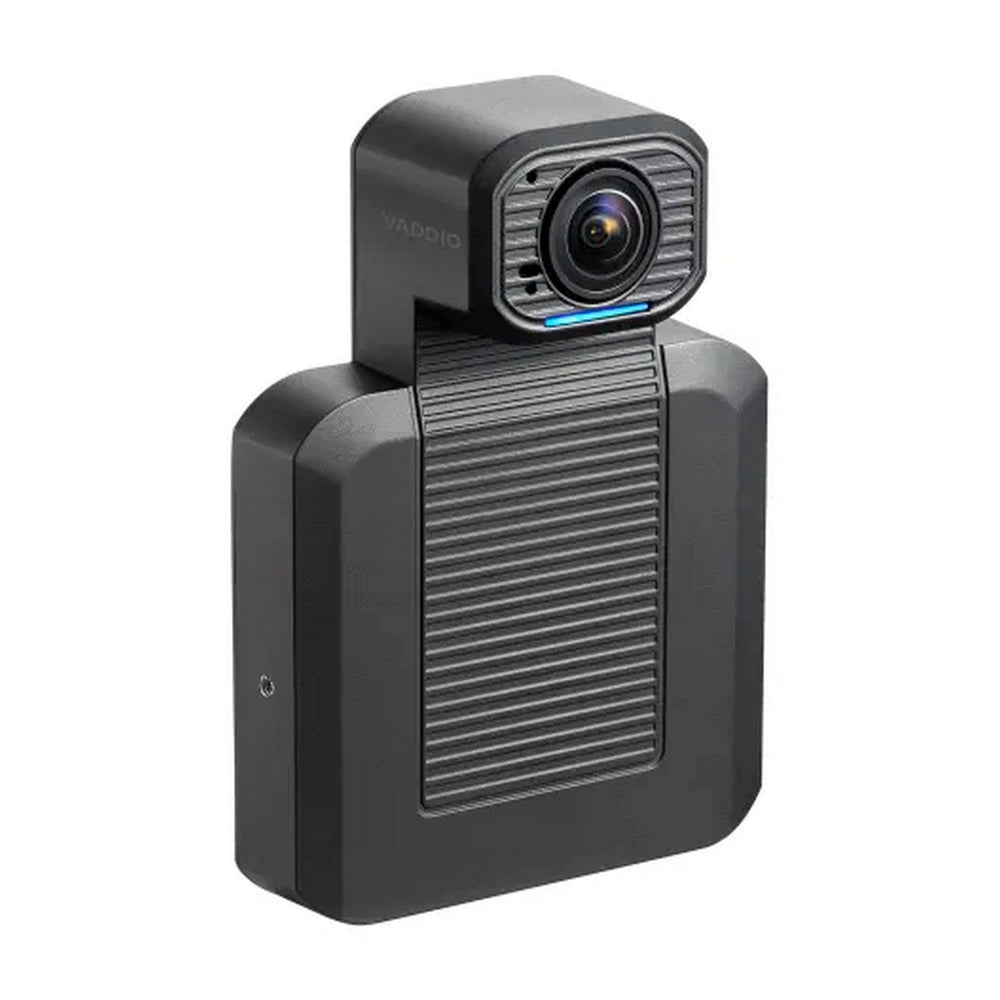

Vaddio ConferenceSHOT ePTZ Auto-Framing Camera with 5x Zoom

Vaddio ConferenceSHOT ePTZ Auto-Framing Camera with 5x Zoom

The ConferenceSHOT ePTZ auto-framing camera for videoconferencing makes collaborating easy. Vaddio’s ConferenceSHOT ePTZ delivers a dynamic, hands-free video experience that recreates the one-to-one videoconference experience perfect for hybrid working environments. The unique custom settings included with the camera make it ideal for enterprises that want professional-quality video for various meeting room environments.

The ConferenceSHOT ePTZ USB camera has a wide 129° field of view, making it perfect for small collaboration rooms and huddle spaces. The small camera is equally suited to areas where employees are socially distant, and you want to ensure everyone is in view. The built-in microphone is a convenient feature when mounting the ConferenceSHOT ePTZ on mobile display carts or in huddle rooms. Upgrade your old PTZ cameras and use existing room audio systems with the audio I/O ports located on the bottom of the camera - a budget-friendly solution for updating outdated meeting rooms.

When setting up the camera, select one of three primary settings for how sensitive you want the camera auto-framing to be.

Conservative Conference is designed for low-motion environments, where little tracking action is needed. This mode is perfect for locations with glass walls or near busy walkways with visual background noise.

Responsive Conference is the perfect option when you have teams that utilize the whole room - like collaborating on whiteboards or brainstorming at flipcharts and want their remote colleagues to stay right with the action. This mode quickly adjusts the image to include people entering and exiting the meeting space.

Default Conference is the sweet spot where most teams are happy with the system performance.

The camera comes with a wall mount that allows the camera to tilt up and down to ensure proper framing of the conference table. The camera has a USB 3.0 Type C port, HDMI and audio I/O to easily integrate with existing room audio systems. The camera also has built-in RTSP and RTMP streaming capabilities for one-button streaming to popular services like YouTube, Facebook, Twitch, Vimeo and more.

This Package Includes
ConferenceSHOT ePTZ Camera
Wall mount and mounting hardware
Cable cover
6 ft (1.8 m) USB 3.0 cable, type C to A
PoE power injector
Vaddio IR Remote
3.3 ft (1 m) Cat-5e cable

Key Features

• Intelligent Framing algorithms keep your participants in view
• 5x zoom with a 129° horizontal field of view
• Simultaneous USB 3.0, HDMI and H.264 IP Streaming (RTSP or RTMP)
• Integrated omnidirectional microphone with built-in Acoustic Echo Cancellation (AEC)
• Balanced audio line in and out
• Three custom settings for auto-framing sensitivity and ability to mask high-traffic areas from auto-framer
• Free Vaddio Deployment Tool for remote management, updates and more

Technical Specifications

Dimensions & Measurements
Depth
2.2 in (5.5 cm)
Height
6.9 in (17.5 cm)
Operating Temperature
32 Degrees to 104 Degrees F (0 Degrees to 40 Degrees C)
Product Weight
2 lbs (0.9 kg)
Storage Temperature
32 Degrees -104 Degrees F (0 Degrees - 40 Degrees C)
Width
4.7 in (12 cm)
Characteristics & Features
3rd Party Control
Telnet
Browser-based User Interface for Remote Control
Built-in
Camera Type
Fixed
Color
Black
Control Method
Telnet
Touch Screen
Web UI
Estimated Room Size
Huddle Room
Small Room
Field of View
129° Wide End to 25.8° Tele End
Field of View Wide
Greater than 70
Focus System
Auto
Manual
Gain
Auto
Manual
Image Sensor Type
1/1.8-Type CMOS sensor
Input Ports
Audio
Network
USB 30
Invertible
Yes
Manufacturer
Vaddio
Minimum Illumination
100+ Lux Recommended
OneLINK Compatibility
No
Output Ports
Audio
HDMI
IP Streaming
Network
USB 3.0 Type C
Pixels
8 Megapixel
Power Cord
US Cord
Power Supply
PoE
Power Type
PoE
Preset Positions
16 Custom Home Position
Quick-Connect Compatibility
No
Signal Type
Audio
HDMI
IP Streaming
USB 2.0
USB 3.0
Solution Type
Camera Only
Special Features
Audio IO
Auto-Framing
InfoComm
Top Resolution
1080p 30
Tri-Sync Motion
No
White Balance
Auto
Manual
One Push
Zoom
5x Digital Zoom
Zoom Range
Less than 10X
Certifications
CE
Certified for Barco ClickShare Conference
ROHS
TAA
UL Listed
