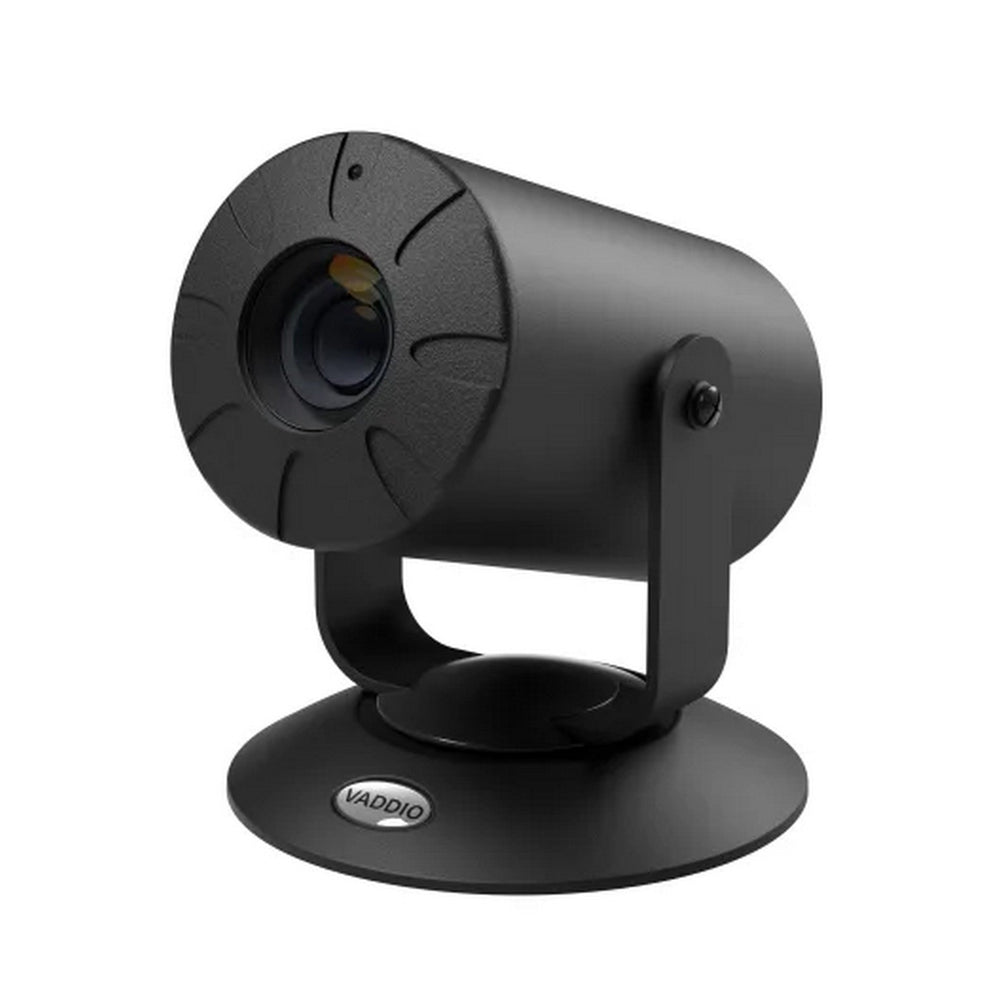

Vaddio ZoomSHOT 20 SE AVBMP 20x Full HD PTZ Camera, Black

Vaddio ZoomSHOT 20 SE AVBMP 20x Full HD PTZ Camera, Black

The ZoomSHOT 20 SE is a cost-effective, versatile, high-definition point-of-view camera well-suited for small, medium, and large rooms. It is designed to support a wide range of applications, including houses of worship, pro A/V system integration, live events, IMAG systems, UCC applications, videoconferencing, distance learning classrooms, and lecture capture. The camera captures with a full HD 1/2.8” Sony 1080p image sensor, 20x optical zoom, and 63° horizontal field of view. It also features a manual pan/tilt, an EZ Set tensioning system, and a presenter-friendly IR remote control.

The ZoomSHOT 20 SE AVBMP is easy to install and use. It can be connected directly to the EZ-POWER VIDEO and RS-232 jacks of the AV Bridge MATRIX PRO using category cables, providing HD video and serial control to the MATRIX PRO video switcher.

The ZoomSHOT 20 SE is a reliable and affordable solution for your video capture needs. Record a lecture, conduct a video conference, or capture live events with outstanding performance and quality. Versatile features, outputs, and ease of use, make this system an excellent choice.

Additional ZoomSHOT 20 SE systems are available. For other outputs, see ZoomSHOT 20 SE QUSB System or ZoomSHOT 20 SE QMini System.

**ZoomSHOT 20 SE is used only with the AV Bridge MATRIX PRO (sold separately) or a Quick-Connect system. It cannot be used as a stand-alone camera.**

Key Features

• 20x powered zoom with 63° horizontal field of view
• Up to 1080p/60 HD image quality
• Power/Video/Control on two Cat-5’s up to 150 ft (45.72 m)
• Manual Pan/Tilt with EZ Set tensioning system

Technical Specifications

Distance
150 in (381 cm)
Operating Temperature
32° to 104°F (0° to 40°C)
3rd Party Control
RS232
Camera Type
Fixed
Compatible With
Vaddio
Control Method
IR Remote
RS232
Estimated Room Size
Large Room
Medium Room
Field of View
63 Degrees Wide End
Field of View Wide
Less than 70
Focus System
Auto
Manual
Gain
Auto
Manual
Image Sensor Type
1 28 Exmor CMOS
Input Ports
EZ Power Video
RS232
Minimum Illumination
0.3 Lux (F1.6)
OneLINK Compatibility
No
Output Ports
HSDS
Pan and Tilt Range
Tilt: +30· to -30°
Unlimited Pan
Pan and Tilt Speed
Manual
Pixels
2.14 Megapixel (2.38 Total MP)
Power Type
EZ Power
Preset Positions
16
PTZ Motors
No Motors Manual
Quick-Connect Compatibility
QMini
QUSB
Signal Type
RS 232
Solution Type
Camera Only
Top Resolution
1080p 60
Tri-Sync Motion
No
White Balance
Auto
Manual
Zoom
20x
Zoom Range
Greater than 19X
Certifications
CE
FCC
TAA
Warranty
3 years
Includes
ZoomSHOT 20 SE camera
Thin Profile Wall Mount with mounting hardware
Vaddio IR Shot Commander remote with 2x AAA batteries
