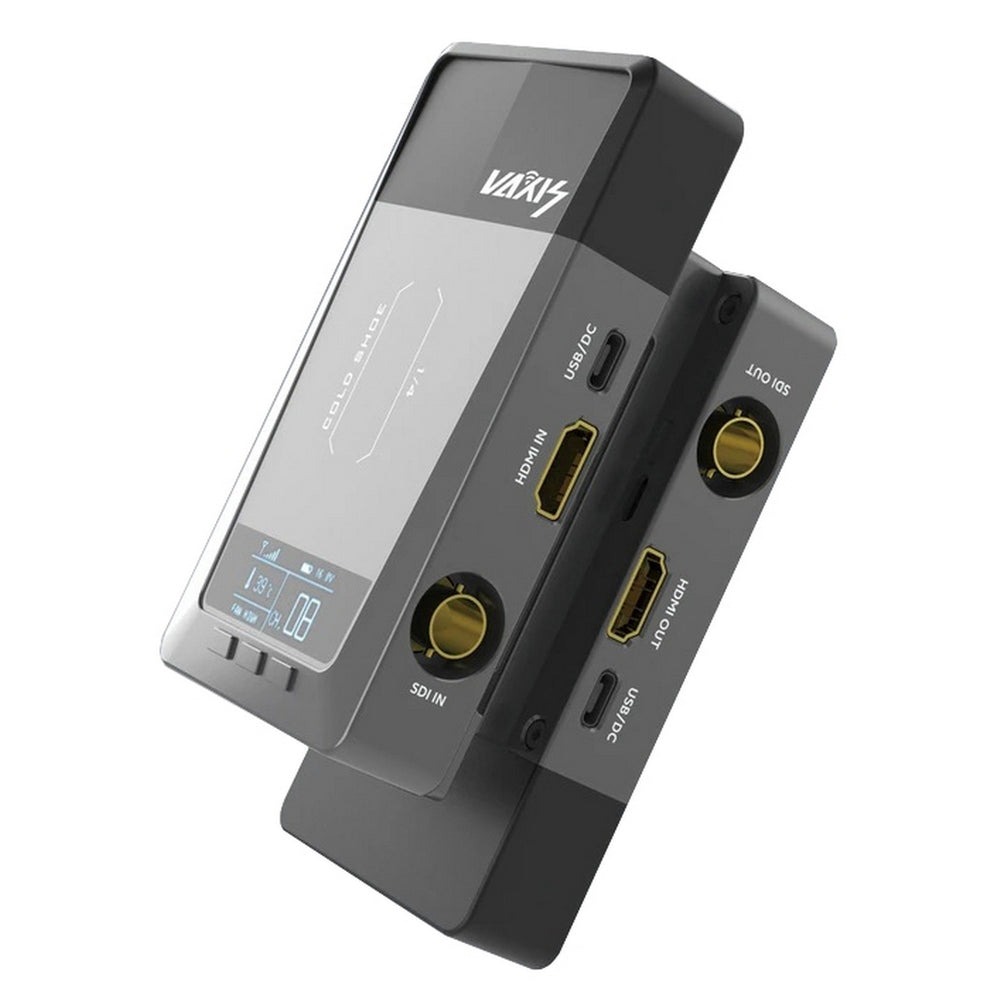

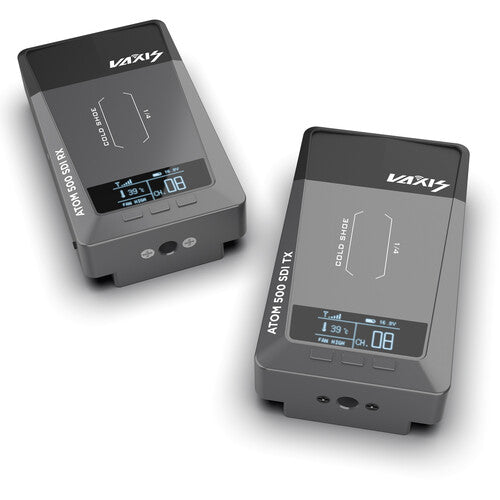

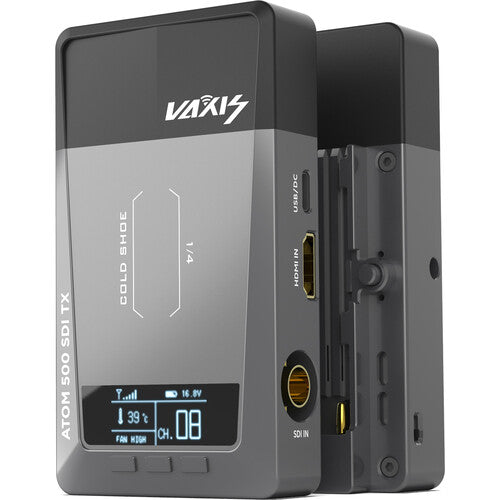

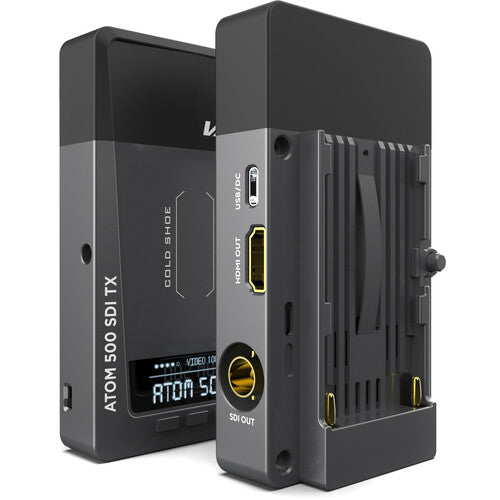

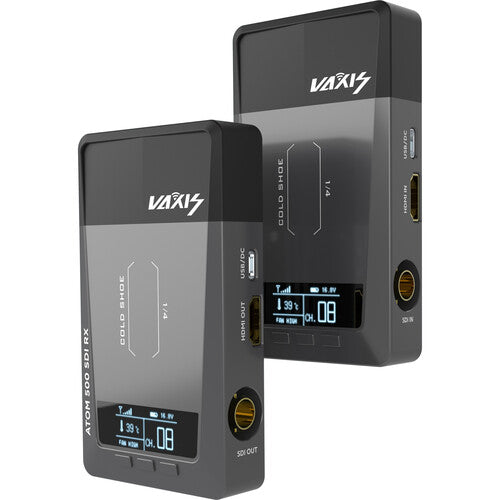

Vaxis Atom 500 SDI Wireless Video Transmission System

ATOM 500 SDI

Key Features

• TX: SDI in x1. HDMI in x1;
• RX: SDI out x1. HDMI out x1;
• OLED Display
• USB-C power
• Passcode Protection
• Flexible moutings
• 500ft line-of-sight
• Less than 80ms latency
• Support up to 1080p 60fps
• Four fashion skin to choose
• Built-in Antenna
• Adjustable fan speed
• Built-in signal converter
  Comparing with ATOM 500 HDMI, ATOM 500 SDI has the following update
• The three menu buttons are bigger and outstanded, not flush anymore, easier to press
• We add Fahrenheit indication for US users
• Long press the right button, you will have a QR code for your phone connection, easier than type
• Manual channel scanning added
• Menu system re-make
• App features upgrade

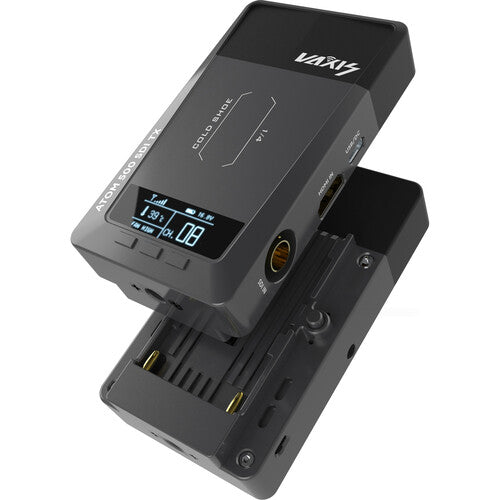

• Battery plate upgrade

Technical Specifications

Interface
TX: HDMI input/SDI input
RX: HDMI output/SDI output
Voltage
5V DC
Power
<6.5w
HDMI Input Video Format (TX)
720p@50/60Hz
1280*1024@60Hz
1080I@50/60Hz
1080p@24/25/30/50/60
HDMI Output Video Format (RX)
720p@50/60Hz
1280*1024@60Hz
1080I@50/60Hz
180P@24/25/30/50/60Hz
SDI Input Video Format
720P@50/60Hz
1080I@50/59.94/60Hz
1080P@23.98/24/25/29.97/30/50/59.94/60Hz
1080PSF23.93/24/25/29.97/30Hz
SDI Output Video Format
720P@50/60Hz
1080I@50/59.94/60Hz
1080P@23.98/24/25/29.97/30/50/59.94/60Hz
1080PSF23.98/24/25/29.97/30Hz
Frequency
5Ghz
Transmission Power
17dbm
Delay
80ms
Rx Sensitivity
-80dbm
